Vanad 500
Preamplification with character

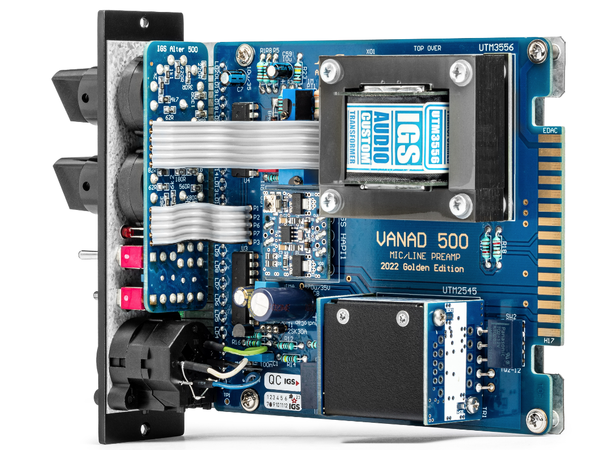

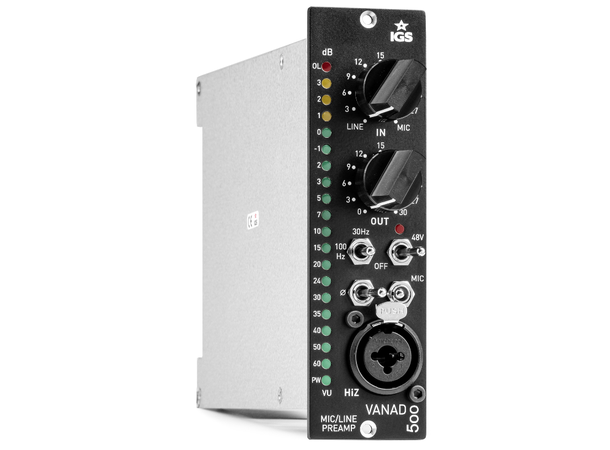

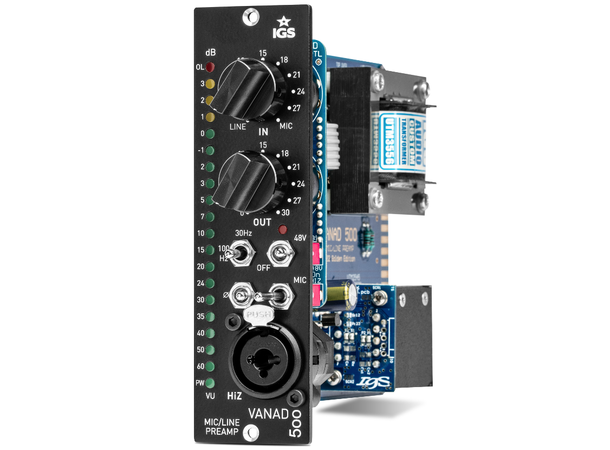

VANAD 500 is a mic/instrument preamp designed in the API 500 standard. The module is a transformer balanced on inputs and outputs using IGS Custom made transformers. All regulators on the front panel are stepped switches. Excellent for recording any sources, including line signals from instruments like guitars or keyboards (Hi-Z input at the front of the unit).
Versatility
This is an excellent preamplifier, that can be used with a variety of sources: line signals, guitar pickups (via Hi-Z input), dynamic, condenser and ribbon microphones. It always provides outstanding results. With the separate gain and output controls (switches) you can push it nicely, but still make sure that you don't overload the next stage of your signal chain. The microphone input is accesible from the back and at the front of the unit. Handy!
BASIC FEATURES
- All stepped manipulators
- HPF OFF, 30 Hz, 100 Hz (6dB/oct)
INPUT & OUTPUT
- Phantom Power
- Input Impedance (balanced) 1.2 kohm, IGS Custom transformer
- Input Pad -30 dB to 0, step 3 dB
- Output Impedance (balanced) 600 ohm, IGS Custom transformer
LEVELS
- Max input level +20 dBu (line)
- Max output level +22 dBu
- Noise Level -99 dBA
- Max. gain 60 dB
- DISTORTION (@ 20 HZ - 20 KHZ)
- THD+N up to 0.2%
POWER
PACKING BOX
