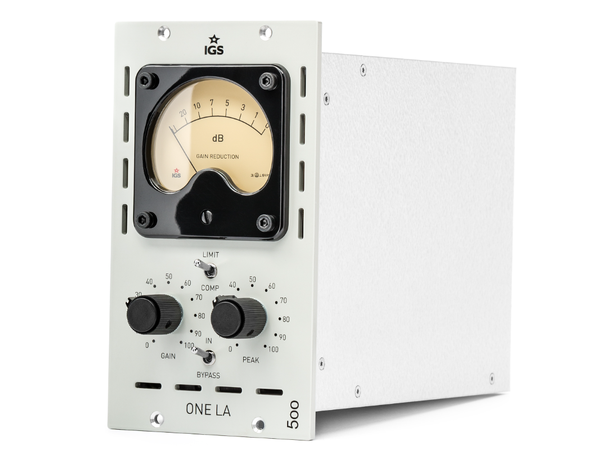

ONE LA 500
Two knobs of happiness.
The IGS ONE LA 500 is an opto-compressor built for the 500 series format. This is the first high voltage vacuum tube 500 series module that is offered by IGS. It is powered with 250V DC from an on-board voltage converter, so it can be plugged into any 500 series rack equipped with a standard power supply.
Every single ONE LA is hand made with high quality, matched components (1% metal film resistors, Wima caps). It is equipped with JJ tubes and individually calibrated to give you the unique and unspoiled experience of one of the best opto-compressors in the history - the Teletronix '68 LA-2A. We have spent hundreds of hours designing the ONE LA, to make sure that it is as simple to use as it is versatile. Not only for harmonically rich vocals and strings, but also for huge and beefy drums and bass instruments.
Using two ONE LA 500 as a stereo pair will allow you to use it as an excellent bus compressor!
There is something else.

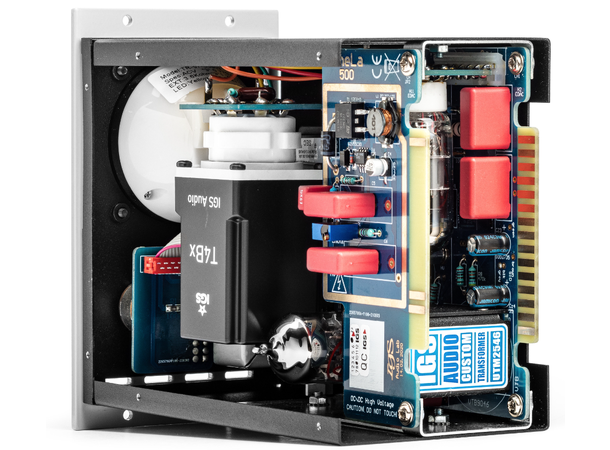

Three audio transformers (IGS Custom in an audio path and OEP in sidechain) have been used to provide excellent performance and with only two knobs and a single compressor/limiter switch, there is nothing that could go wrong. Additionally, you can replace the photocell easily (special version available)
SPECIFICATIONS:
DEVICE TYPE
BASIC FEATURES
- Stereo Link only on custom order
- Hard wire bypass
INPUT & OUTPUT
- Input Impedance (balanced) 600 ohm, IGS Custom transformer
- Output Impedance (balanced) 600 ohm, IGS Custom transformer
- Audio transformers Yes, IGS Custom
LEVELS
- Operating Level +4 dBu
- Max input level +20 dBu
- Max output level +21 dBu
- Dynamic Range 100 dB
- Noise Level -99 dBA
- Max. gain 32 dB
- Max Gain Reduction 32dB
TIME CONSTANTS
- Ratio 4:1 in COMP mode, 100:1 in LIM mode
- Attack: 10ms
- Release: 0.5 – 5s (50% @ 60ms)
BANDWIDTH
- Frequency response 8 Hz - 20k Hz, +/- 1 dB
- DISTORTION (@ 20 HZ - 20 KHZ)
- THD+N 0.002% @ 0dBu
FRONT PANEL
- VU Meters Yes, GR (backlit)
POWER
PACKING BOX
OTHERS
