Heritage Audio 6673



In March 1970 the first 1073 module was launched and became the standard in 80 series consoles. The 1066 was gradually replaced in newly shipped consoles and finally disappeared. The 1073 featured almost the same identical circuitry, being the most relevant differences the hi frequency shelving ( 12Khz instead of 10Khz ) and the equalizer´s mid band, which had one more center frequency, but lacked the constant Q of the 1066 . Vintage module connoisseurs do know how sweet the 1066mid band sounds and, for some, something was lost in the way. Until now...
The 6673 module is the answer to an old question among vintage module users. Should I use a 1073 or a 1066 for this specific source material? Should I need to boost at 700 Hz or would it be better to cut at 360 Hz? Should I need 12Khz or would it probably better to add 10Khz instead?
These and a lot more questions that have become "classic" in some professional environments have a new answer.

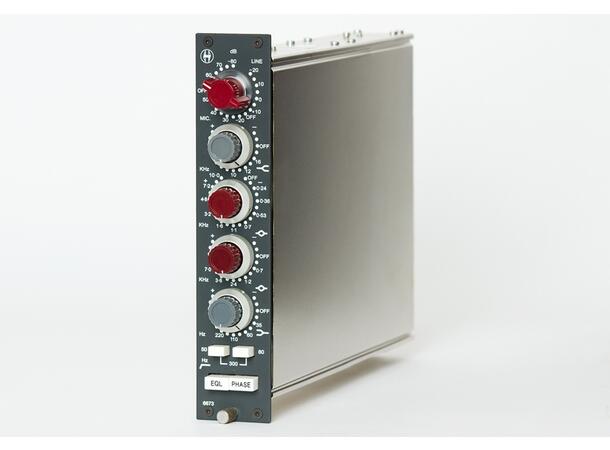

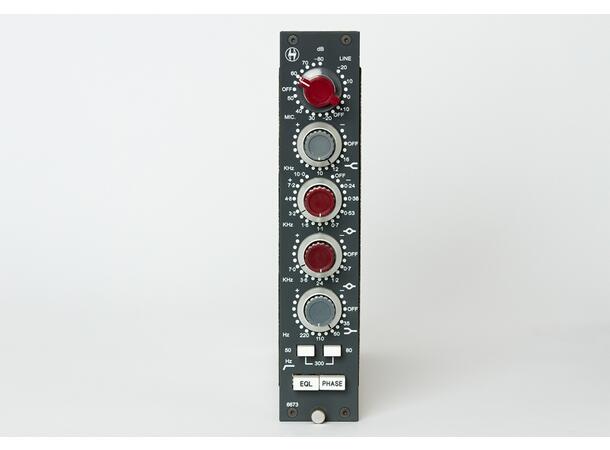

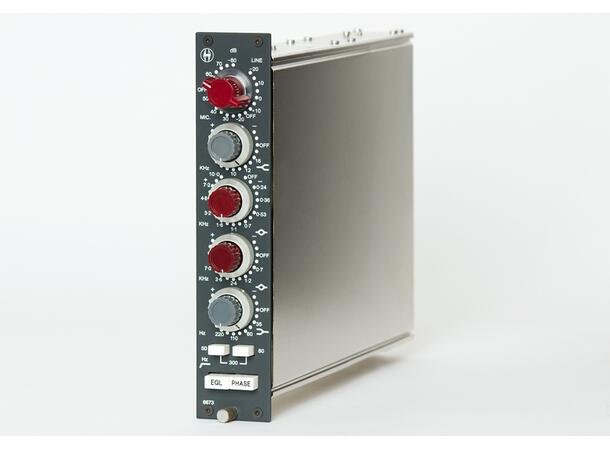

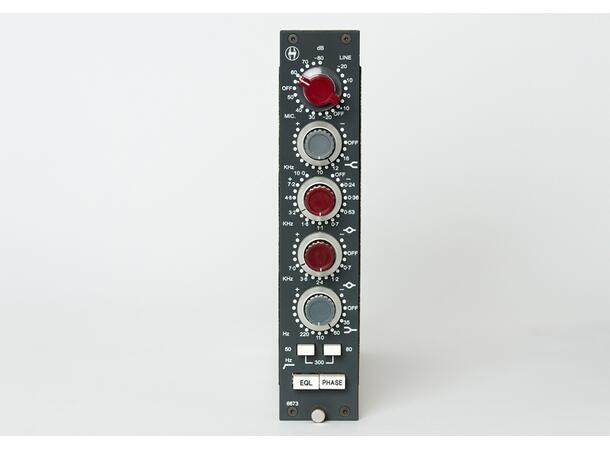

Heritage Audio is proud to introduce the 6673 module. A 100% series 80 compatible module featuring the same Class A mic preamplifier found in the classic modules with an added key feature: A 4 BAND EQUALIZER. Better said, THE 4 band equalizer as it features the same exact 3 band equalizer circuit found in the famous 1073 plus the mid band found in the 1066.
In addition, we have expanded the 1073 mid band with 3 extra frequency choices, widening the sonic palette.



Now you can boost at 700 Hz for "thick as a brick" guitars and cut at 360 Hz to get rid of the mud.



• Microphone input impedance: HI, 1200 Ohm minimum, LO, 300 Ohm minimum. Higher gain positions gradually have greater impedances, optimum for lo gain ribbon mics. Input is transformer balanced and floating.
• Line input impedance: 10KOhms bridging, transformer balanced and floating.
• Output impedance: Less than 75 Ohms, transformer balanced and floating, to drive a load of 600 Ohms.
• Maximum output: Greater than +26dBm into 600 Ohms, greater than +32dBu into 10KOhms.
• THD: Less than 0.025% at 1Khz, Less than 0.05% at 100Hz.
• Frequency response :20Hz (+0.3dB) to 20Khz (-0.2dB).
• Maximum Gain: Slightly greater than 80dB.
• Noise: Less than -100dBm.
• Power consumption: 110 mA @24VDC.
