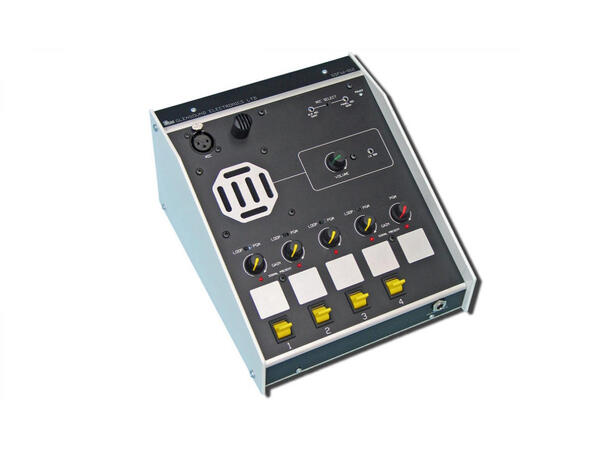

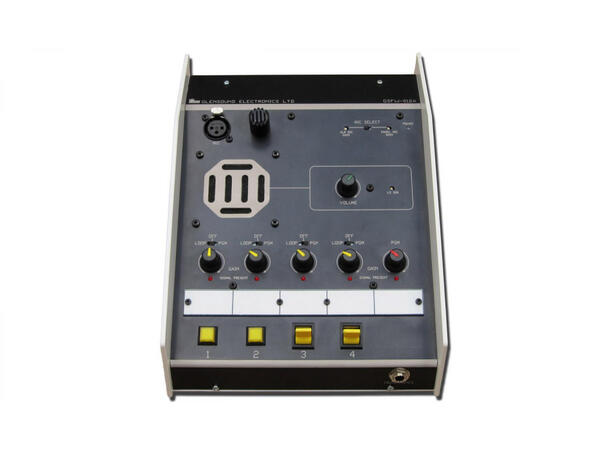

Glensound GS-FW012Four Channel 4 Wire Box

Mains powered 230 VAC
Four 4 wire circuits
1 x program input
Internal or external Mic input with individual gain controls
Compressor/ limiter circuit for mic
Lever key switches send mic to 4 wire outputs
4 wire & program inputs are transformer balanced
4 wire & program inputs have volume level controls
Audio present LEDs on all 5 audio inputs
Program input can be routed to any of the 4 wire outputs (operating the lever key replaces that channels output with the mic audio)
4 wire inputs can be routed to their own output (IFB) (operating the lever key replaces that channels output with the mic audio)
Front panel Loudspeaker
Headphone Jack (breaks LS)
Overall LS/ Headphone volume control
Variable LS dim (when leverkeys switched)

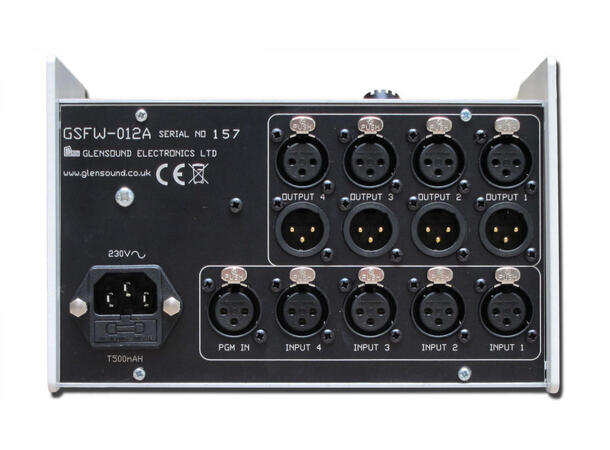

Audio connections on rear panel XLRs

This is a mains powered desktop/ portable unit that provides 4 off 4 wire circuits with the useful addition of 1 extra audio input (PGM).

OPTIONS

GS-FW012A:
- Circuits 1 and 2 have none latching push buttons instead of lever keys.
- There is a solid plastic scribble strip above the lever keys
- Four additional female XLR outputs (1 per circuit)

The A version was a customer modification. Glensound can also look at further variations for your requirement so please call or email with the requirements.

GS-FW012B:
This option maintains the features of the GS-FW012 but adds a lazy talkback output.

GS-FW012C:
This option maintains the features of the GS-FW012 but adds a script panel.

Glensound GS-FW012 Four Channel 4 Wire Box

Tilbehør

Alternativer

Artikler

Antall artikler funnet:

Glensound GS-FW012

Four Channel 4 Wire Box

Varenr: 120658

Bestillingsvare (12 dager)

Beskrivelse

Mains powered 230 VAC
Four 4 wire circuits
1 x program input
Internal or external Mic input with individual gain controls
Compressor/ limiter circuit for mic
Lever key switches send mic to 4 wire outputs
4 wire & program inputs are transformer balanced
4 wire & program inputs have volume level controls
Audio present LEDs on all 5 audio inputs
Program input can be routed to any of the 4 wire outputs (operating the lever key replaces that channels output with the mic audio)
4 wire inputs can be routed to their own output (IFB) (operating the lever key replaces that channels output with the mic audio)
Front panel Loudspeaker
Headphone Jack (breaks LS)
Overall LS/ Headphone volume control
Variable LS dim (when leverkeys switched)
Audio connections on rear panel XLRs
