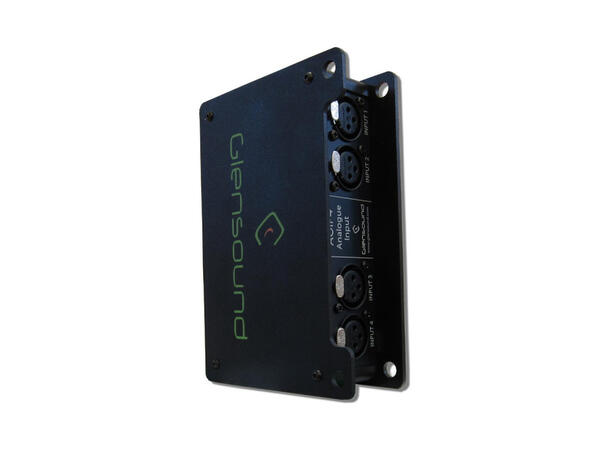

The Glensound AoIP4I is packaged in a small &
rugged format and designed for outside broadcast, theatre and location
applications.

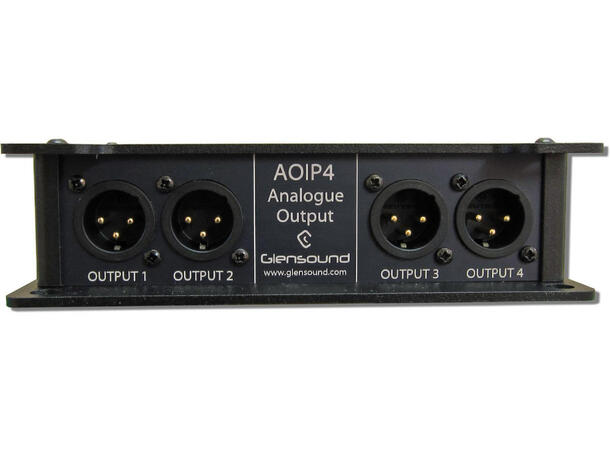

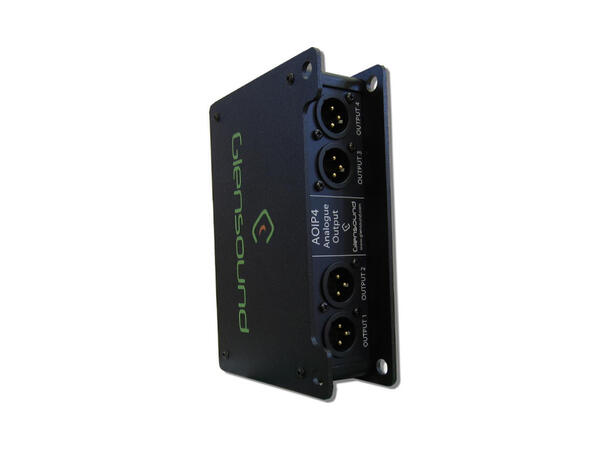

Both the AoIP4O and AoIP4I units are designed to easily and
quickly interface existing analogue equipment to a Dante® / AES67
network audio system. Being powered by PoE means that only one
cable needs to be connected to the network to carry both audio and
power, providing flexibility and saving time on installation.

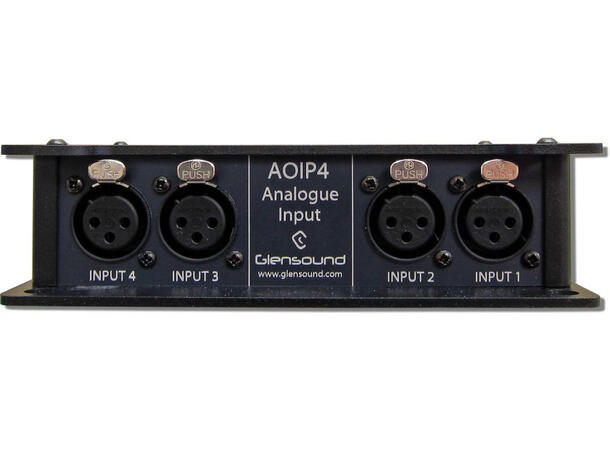

AoIP4I provides 4 balanced analogue audio inputs to a Dante®/AES67 audio network.
Robust proven construction techniques, simple reliable interface
and excellent specification will help make your technician’s life hassle
free, whilst the low cost and long asset life will keep the accountant
satisfied.
PoE Powering
For ease of setup only 1 single cable is needed to transport both
power and audio to the AoIP units. The network cable carrying audio can
also power the device using standard Power Over Ethernet (PoE)
technology when connected to a suitable network switch or to a mid span
PoE injector.

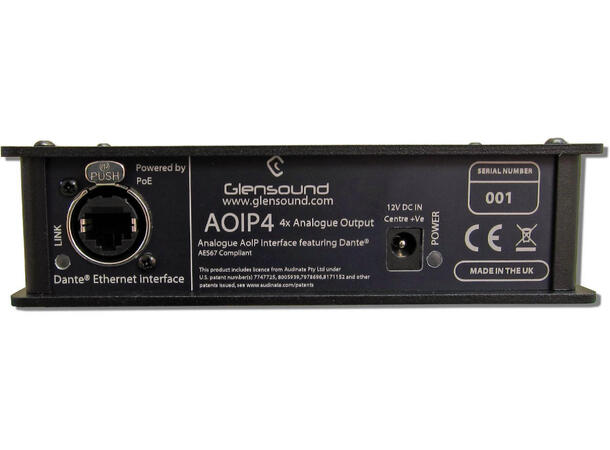

EXTERNAL DC POWER INPUT
An industry standard barrel connector is used for powering the AoIP units from an external 12V DC power source.
REDUNDANT POWER
If both PoE and DC power
sources are connected then power supply redundancy is automatically
enabled, meaning that either one of the power sources can be lost and
the AoIP unit will continue working.
POWER ON LED
A bright blue rear panel LED indicates that the device is turned on.
RUBBER FEET
The AoIP units are supplied with
stick on rubber feet so if the AoIP4 is to be sat on a desk or the back
of a workbench, then the rubber feet are fitted to stop it sliding
around.
FIXING HOLES
All four front corners of the
AoIP4 feature large extremely strong holes that are ideal for threading
cable ties through. Alternatively for a permanent fixing solution,
screws can be used instead.
NEUTRIK XLRs
For audio integrity and reliability we only use high quality gold plated Neutrik XLRs.
FULLY PROTECTED ELECTRONICALLY BALANCED CIRCUITS
Not
all electronically balanced audio circuits offer the same performance
and reliability. With many years of specific broadcast audio experience,
we’ve designed exceptionally robust and noise free circuits that have
been proven to be best in class time and time again.
