Vittoria

Using Audinate’s Brooklyn II modules, Glensound Vittoria is designed to link thirty-two channels from two separate Dante networks. Vittoria can be used as a sample rate converter if the user connects the I/O to the same network.

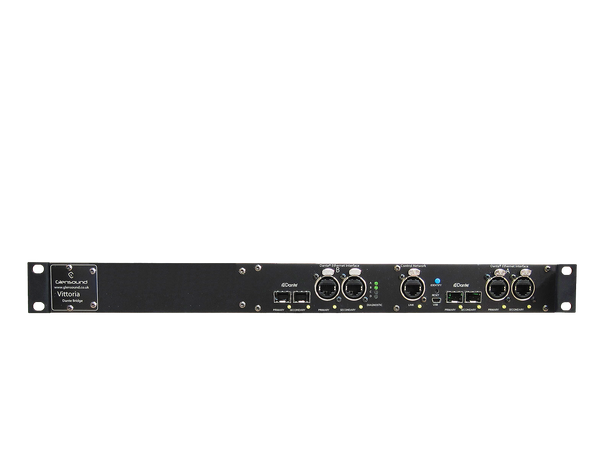

Each of the two networks are fully isolated therefore they retain security from one another, they can operate asynchronously, and they can process different sample rates from 44.1kHz to 192kHz. Each of the two Dante interfaces has primary and secondary connections using copper Ethernet via RJ45 EtherCON sockets, and fibre connection via SFP module slot. Vittoria is also compatible with AES67 and SMPTE ST-2110-30 formats.

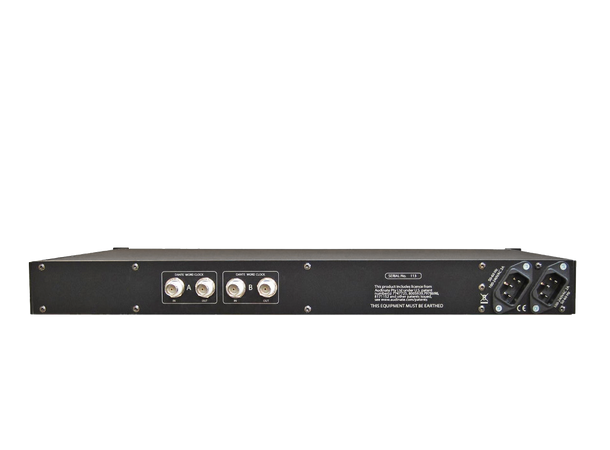

Separate word clock inputs and outputs are available for each Dante interface with BNC connectors positioned on the front facing panel. Redundant switch mode AC power connections are positioned on the rear facing panel in the form of IEC connections.

Audio sampling frequency: 44.1 to 192kHz. Transfer rate: 1000Mbps. Resolution: 24 bit. Power: 100-240V AC, +/-10%, 50-60Hz. Power consumption: 20watts. Sample rate convertor dynamic range: 139dB. I/O sample rate: 44.1 – 192kHz. I/O sample rate ratio: 1:8 to 7.75:1. Total harmonic distortion: -120dB. Dimensions (WxDxH): 450 x 310 x 50mm. Weight: 3kg.

History of the name
“The Glensound Dante network audio range of products take their names from characters and places of the time of the Italian poet Dante Aligieri.

Dante was born in Florence, Italy in 1265, and the area contains many tributes to his life and work. One of the several impressive bridges in Florence is called Ponte Alla Vittoria which was built in 1835.

The Ponte Alla Vittoria joined three major provinces (Pisa, Livorno, and Pistoia), linking industries in Florence with the sea and the railway.”
