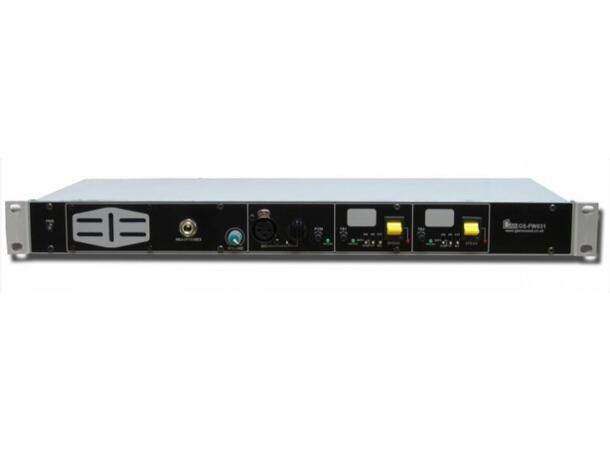

The GS-FW031 is very versatile 2 channel 4 wire subrack. It has been designed to fulfil all the communication requirements of a small OB vehicles, small studios or to act as the communication hub of fly away kit.
- 2 x 4 wire circuits
- 1 x program audio input
- 1 x external audio input (not transformer balanced)
- 4 wire & program audio inputs are transformer balanced
- Inputs & outputs on rear panel XLRs
- 4 wire inputs and program input have course gain controls
- Signal present LEDs indicate incoming audio present on 4 wire inputs and program input
- Front panel loudspeaker
- Headphone output (cuts LS)
- Variable LS dim (Internal preset)
- Loudspeaker/ headphones volume control
- Program input can be switched to any of the 4 wire outputs and interrupted when speak key pressed
- 4 wire inputs can be switched to their own outputs and interrupted when speak key pressed
- External input can be switched to any of the 4 wire outputs and interrupted when speak key pressed
- Program, external and 4 wire interrupts can be set to either cut or mix with the talkback mic
- Front panel mic or external mic input
- Separate gain controls for the 2 mic inputs (internal presets)
- Speak keys are latching/ off/ momentary
- LEDs indicate when speak keys are on
- Relay loop closure outputs from speak keys
- Mains powered with internal switch mode PSU (100 to 240 VAC input range)
The GS-FW031 is very versatile 2 channel 4 wire subrack. It has been designed to fulfil all the communication requirements of a small OB vehicles, small studios or to act as the communication hub of fly away kit.
