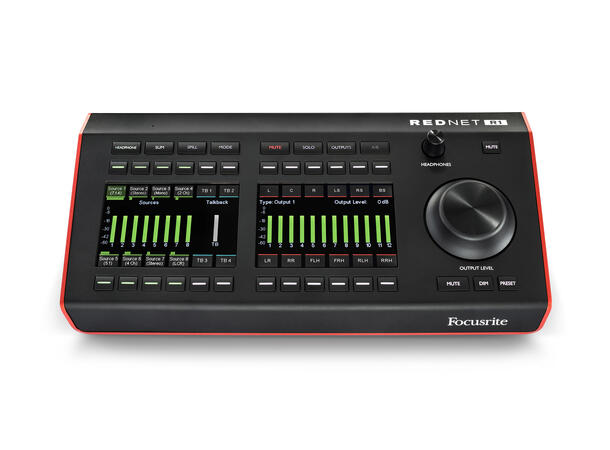

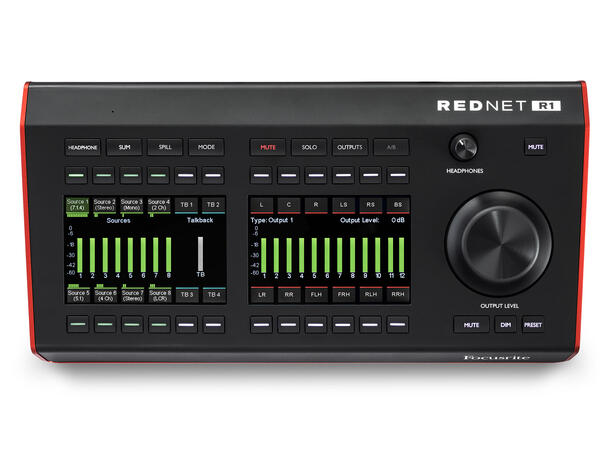

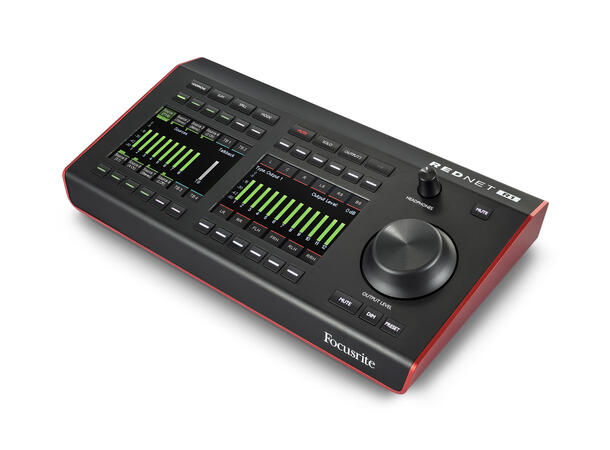

Focusrite Rednet R1 monitor kontroller

Dante monitorkontroller med talkback

Varenr: 117284
-+
Bestillingsvare (1 dager)
BeskrivelseTeknisk infoTilbehørRESSURSER
Beskrivelse

Focusrite RED R1 monitorkontroller

R1 er en monitorcontroller til RED-serien, med støtte for alt fra mono til 7.1.4 Atmos. I tillegg til åpenbare monitor-funksjoner som dim, mute, solo og A/B-switching, kan du definere egne presets for lyttenivå og fold-down. R1 har også innebygget hodetelefonutgang og talkback-mikrofon, der du kan angi opptil fire destinasjonsgrupper. RedNet R1 programmeres via RedNet Control, og kan strømforsynes via PoE.



KEY FEATURES:


• Desktop remote controller for Red audio interfaces
The first Dante®, Pro Tools | HD™ and Thunderbolt™ interface system with a monitor controller.

• Switch and sum
Supports a maximum of eight channels, each of up to 12 sources per channel, from 32 available audio sources.

• Flexible monitor control
Controls include level, reference level, preset selection, cut, dim, mute, A/B switch, and a variety of solo modes.

• Monitor fold-downs
Up to four fold-down presets allow fast switching for checking downmixes.

• Talkback & headphones functionality
Four destination groups when used with a Red interface, or a single talkback group when used with other Dante devices. High-fidelity output can take its source from a multitude of sources.

• Built-in Microphone

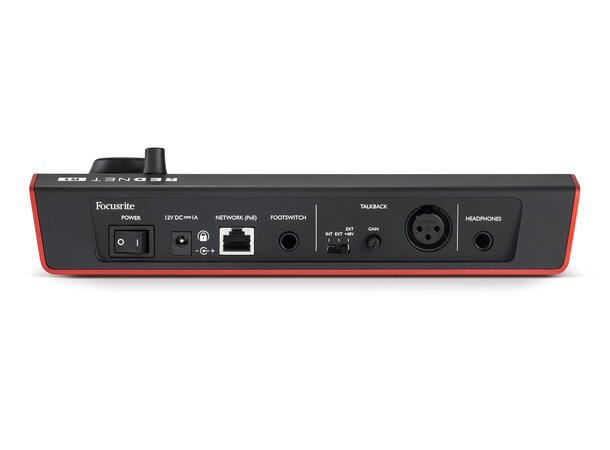

RedNet R1 has an internal talkback microphone, or users can connect their own, via the rear-panel XLR.

• Precision metering and display
Two LCD displays for highly accurate level metering of the outputs, sources and headphone outputs, and for giving visual cues for navigating around menus.

• Software setup with hardware-focussed workflow
RedNet Control is designed for quickly setting up simple or complex configurations.

• Footswitch input
Quarter-inch jack socket accepts a footswitch, for talkback management, LFE muting and more.

• Power-over-Ethernet (PoE) support
Powered via Ethernet (using the PoE standard), or using a DC power supply.

Teknisk info

Produktinformasjon

- Funksjon & bruk
  • Fotbryter kontroll
  • IP nettverk lyd
  • Lydkort
  • Surround
- Grensesnitt (Protokoll)
  • AES67
  • Dante
  • POE
- Tilkoblinger (Pluggtype HW)
  • RJ45
  • XLR
