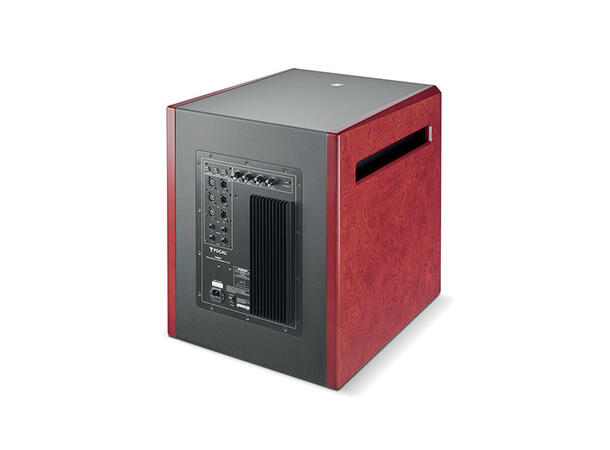

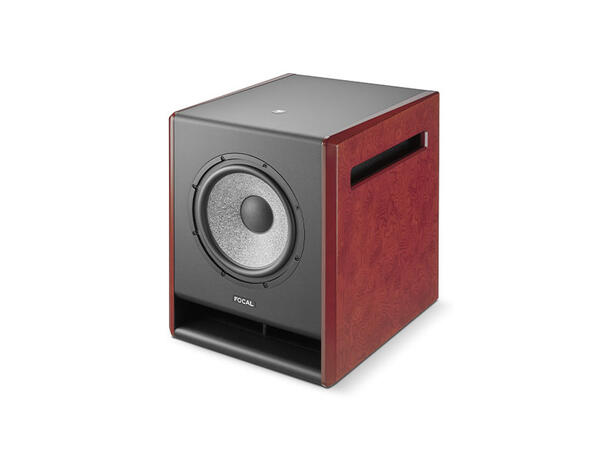

Sub12 A Top-tier Sub for Your Studio
Ultra-precise monitoring is a crucial part of pro-level audio production. Focal’s Sub12 offers exactly that. This powered studio subwoofer delivers unprecedented definition, unrivaled dynamics, and 600 watts of room-shaking sub-bass — everything you need to get inside your mix’s low end. Sub12 is loaded with Focal’s vaunted composite sandwich “W” cone, plus a large laminar port for distortion-free low-frequency reproduction. Sub12 features an automatic, defeatable standby mode, plus a convenient carry handle. If you demand top-of-the-line monitoring for your mix room, then Focal’s Sub12 is an excellent, high-quality solution.

“W” composite sandwich cone and large laminar port
Sub12 takes advantage of Focal’s “W” composite sandwich cone. The unique characteristics of the cone permits optimization of the frequency response curve, thanks to the total control of three key parameters: lightness, rigidity, and damping. Sub12 also employs a large laminar port, which is completely devoid of unwanted port noises and distortion. Sub12 sounds amazingly dynamic, has an excellent definition, and has an extremely low distortion rate.

Features:

• Delivers 600W RMS of room-shaking sub-bass
• “W” composite sandwich cone permits optimization of the frequency response curve
• Large laminar port is completely devoid of unwanted port noises and distortion
• Energy-saving automatic, defeatable standby mode
• Convenient carry handle

Spec:

• Type: Subwoofer
• Frequency response (@ -3dB): 30Hz – 400Hz
• Low cut-off frequency (@ -6dB):  28Hz
• Maximum SPL (Average CEA2010B 30-200 Hz free field @ 1m)110dB: 124.5dB
• Input: Balanced XLR LFE 10kO, Left & Right 10kO
• Outputs: Balanced XLR LFE (in parallel), Left & Right 50O
• Bass amplifier stage: 600W RMS
• Nominal power supply: ~100-120 VAC/220-240 VAC 50/60Hz
• User controls: Sensitivity, Stand-by, Polarity, Phase, LPF, Volume, HPF
• Fuses: ~100-120V, T2.5AL/250V ~220-240V, T1.25AL/250V
• Internal signal processing and functions: Left/right mono summation, LFE + mono low-pass, 24dB/octave, Phase adjustment, Polarity selection, Switchable high-pass crossover, frequency cut-off selection 24dB/octave
• Outputs (to satellites): Right, left, Electronically balanced / 50O, 3-point male XLR
• Bass: 1 x 13? (33cm) x ‘W’ cone
• Shielding: no
• Construction: Dark red natural veneering side panels, black body
• Finish: Dark red natural veneering side panels, black body
• Dimensions (HxWxD): 60×48.7×56.8cm
• Weight: 58kg
• Temperature range: During use: 5-35°C, In storage: 0-50°C
