DTP HDMI 4K 230 Tx
DTP Transmitter for HDMIKey Features
- Transmits HDMI plus control and analog audio up to 230 feet (70 meters) over a shielded CATx cable
- Supports computer and video resolutions up to 4K
- Supported HDMI specification features include data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC pass-through
- HDCP 2.3 compliant
- Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
- Compatible with CATx shielded twisted pair cable

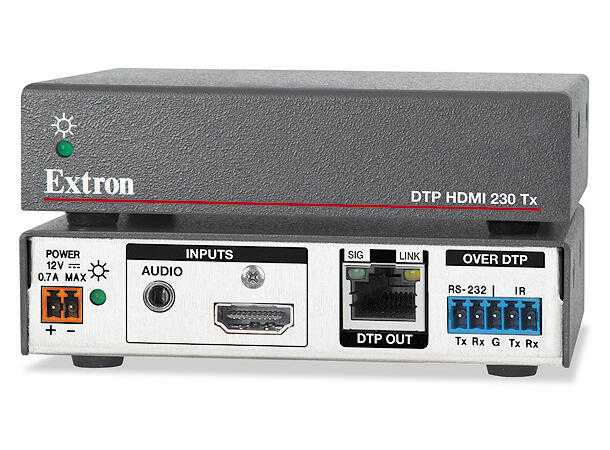

The Extron DTP HDMI 4K 230 Tx is a transmitter for sending HDMI, audio, and bidirectional RS-232 and IR signals up to 230 feet (70 meters) over a shielded CATx cable to Extron DTP®-enabled products. It provides an economical and effective means for extending HDMI with embedded multi-channel audio from HDMI-equipped devices. In addition, the DTP HDMI 4K 230 Tx accepts analog stereo audio signals for simultaneous transmission over the same shielded twisted pair cable. It supports video signals at resolutions up to 4K. The compact enclosure size and remote power capability make the DTP HDMI 4K 230 Tx ideal for discreet placement in lecterns, beneath tables, or wherever needed to meet application requirements
