• Receives HDMI plus control and analog audio up to 230 feet (70 meters) over a shielded CATx cable
• Supports computer and video resolutions up to 4K
• Supported HDMI specification features include data rates up to 10.2 Gbps, Deep Color up to 12-bit, 3D, HD lossless audio formats, and CEC pass-through
• HDCP 2.3 compliant
• Extron XTP DTP 24 shielded twisted pair cable is strongly recommended for optimal performance
• Compatible with CATx shielded twisted pair cable

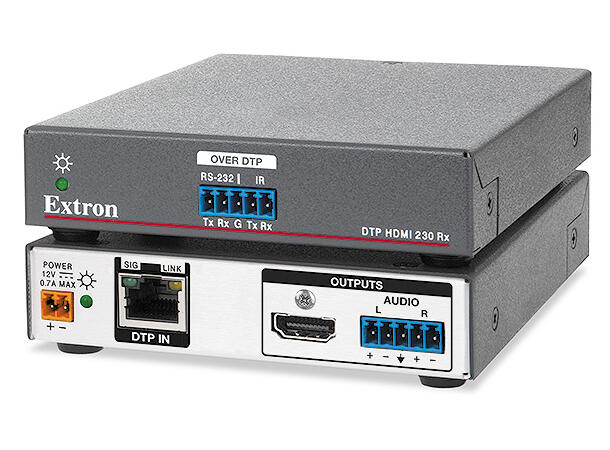

The Extron DTP HDMI 4K 230 Rx is a digital twisted pair receiver that works with Extron DTP®-enabled products to send HDMI, audio, and bidirectional RS-232 and IR signals up to 230 feet (70 meters) over a shielded CATx cable. It provides an economical and effective means for extending HDMI with embedded multi-channel audio from HDMI-equipped devices. In addition, the DTP HDMI 4K 230 Rx accepts analog stereo audio signals from a DTP-enabled product over the same shielded twisted pair cable. It supports video signals at resolutions up to 4K. The compact enclosure size and remote power capability make the DTP HDMI 4K 230 Rx ideal for discreet placement in lecterns, behind flat-panel displays, or wherever needed to meet application requirements.
