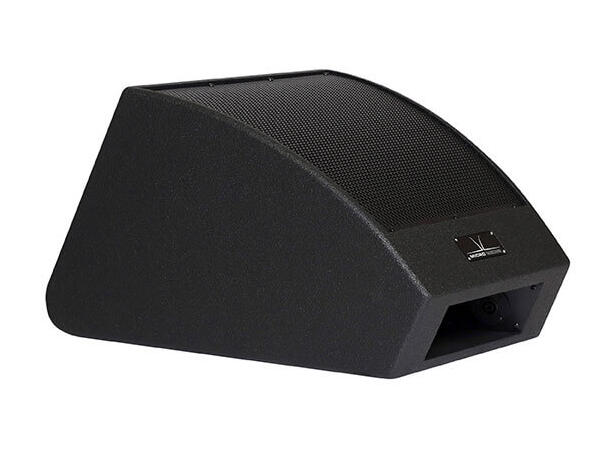

The MicroWedge MW12 is collaboration between original MicroWedge Series inventor Dave “Rat” Levine (founder of Rat Sound Systems, Inc.) and the EAW Engineering Department, resulting in dramatically upgraded performance and ergonomics. The coaxial design pairs a 12-inch woofer with a 3-inch voice-coil compression driver to provide full yet controlled 90-degree conical dispersion.

All frequencies emanate from the exact same point, eliminating crossover region problems and time/phase irregularities, as well as optimizing coherency. The coaxial approach also contributes to a very compact, low-profile footprint.
The port on the front of the cabinet enhances LF response in coupling with the floor, the opening also houses a convenient carrying handle and dual NL4 connectors.

The Baltic birch cabinets are available in a black or white finish. The black monitors are protected with EAW’s RoadCoatTM which provides a black finish and tremendous scratch resistance. The rugged steel grill keeps its distinctive shape even if stood upon. Points for Omni-mount plates are located the bottom of the MW12 to aid in hanging the monitors.

For applications that require enhanced performance the MW12 can be optimized using the EAW UX48 digital signal processor or an EAW UXA amplifier.

6 year warranty.

Specifications

Single-amp LF/HF; Bi-amp LF, HF
High pass filter; DSP w/2-way filters

LF: 12-in cone, vented, coaxial with HF
HF: 1x 1.4 in exit, 3 in. voice coil compression driver, Horn-loaded

LF: 600W @ 8ohms
HF: 150W @ 8ohms
Full Range: 600W @ 8ohms

NL4 Input/Loop

Height: 13.14 in (333.9 mm)
Width: 17.27 in (438.7 mm)
Depth: 22.8 in (579.2 mm)

60.5 lbs (27.4 kg)
