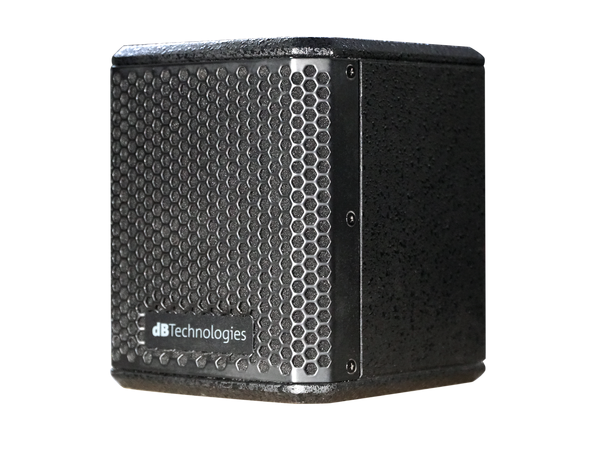

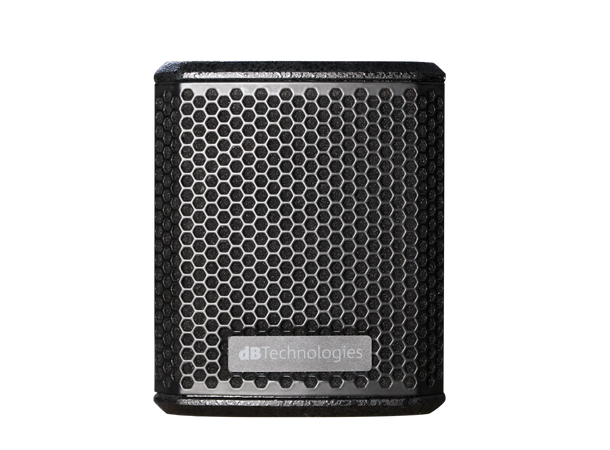

LVX P5, passiv installasjonshøyttaler inkludert monteringsbrakett

LVX P5 is a passive speaker equipped with a full-range single transducer (5” LF and 1” HF).

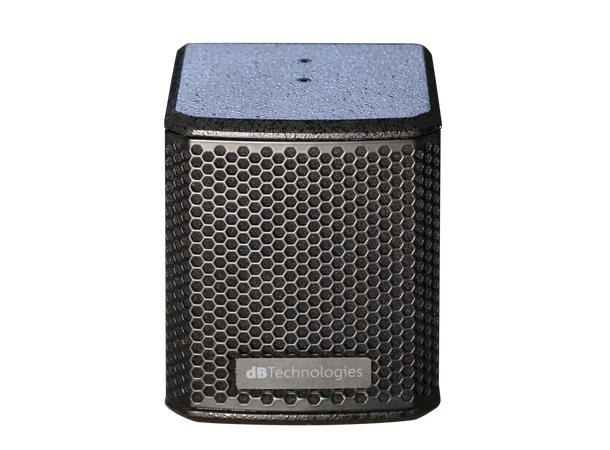

The most efficient acoustic design, allowing an extended coverage pattern (135°x135°) and a vigorous SPL up to 115 dB, makes this mini full range system the perfect solution to render speech or background music in small venues. The solid plywood enclosure features a clean, install-friendly design with rigging points on top and side to ease installation on ceiling or wall via the included bracket.

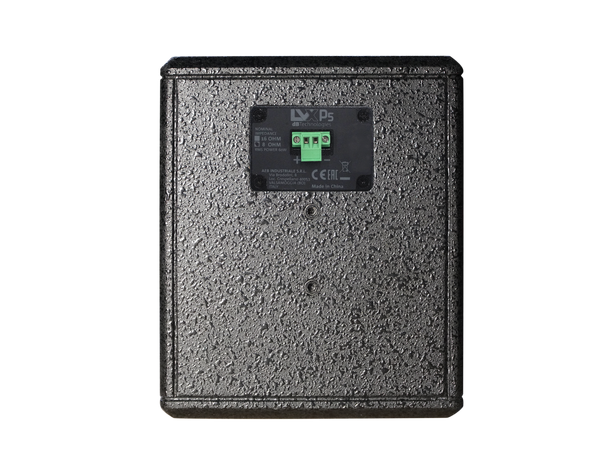

LVX P are equipped with Phoenix connectors. 8 Ohm version are available for use with dBTechnologies ATI amplifiers.
The cabinet comes in black or white, just like all other cabinets in LVX series.

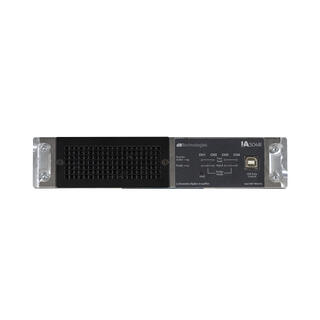

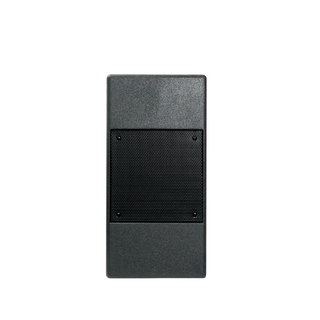

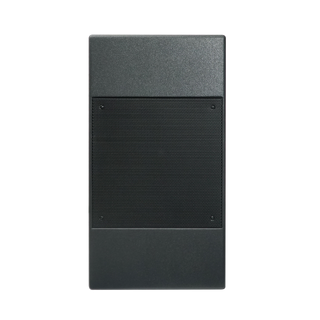

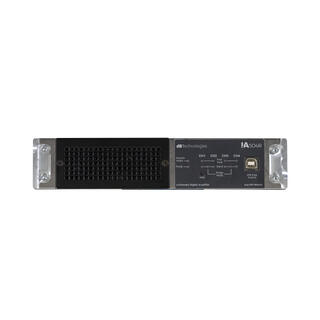

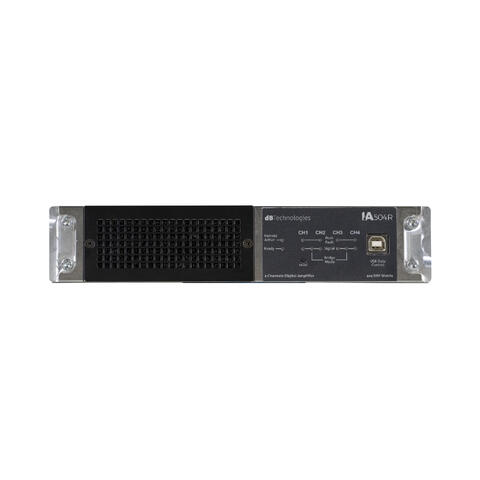

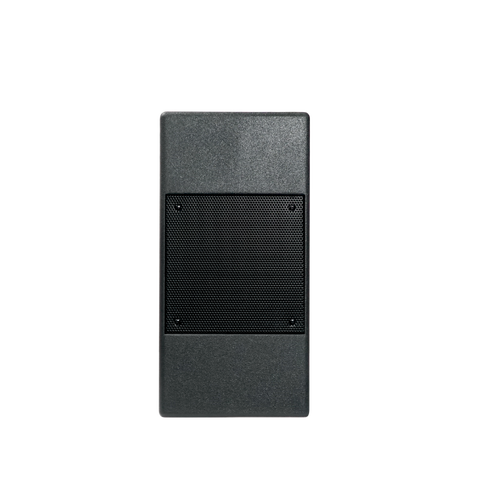

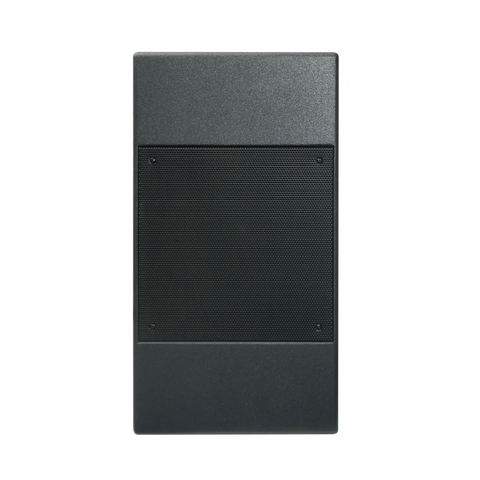

LVX P5 kan fint kombineres med IS Sub 8" eller 12" sammen med IA504 4-kanalers programmerbar DSP forsterker.
LVX P5 er utgående og kan kombineres med ny installasjonsserie, se IS modellene.

Acoustical data
Impedance: 8 Ohms
Frequency Response: [-10 dB] 100 Hz -20 kHz
Max: SPL115 dB
Directivity: 135x135°
LF: 5", 1" v.c.
Peak Power Handling: 120 W

Input
Connector Type: 2-pole Phoenix connector type

Mechanics
Housing: Plywood
Accessories: Wall/ceiling mounting bracket (included)
Width: 165 mm (6.49 in)
Height: 198 mm (7.79 in)
Depth: 175 mm (6.88 in)
Weight: 2.2 kg (4.8 lbs)
