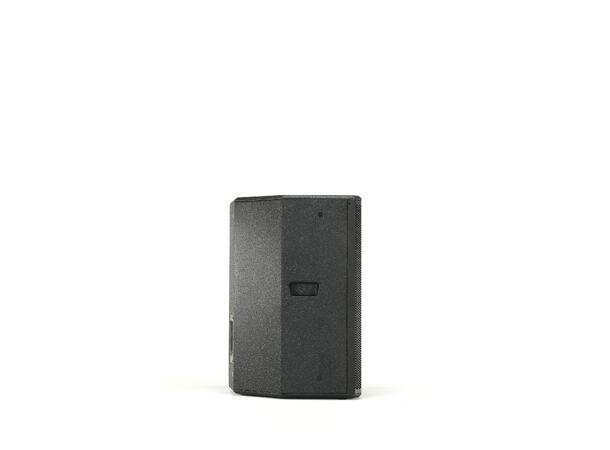

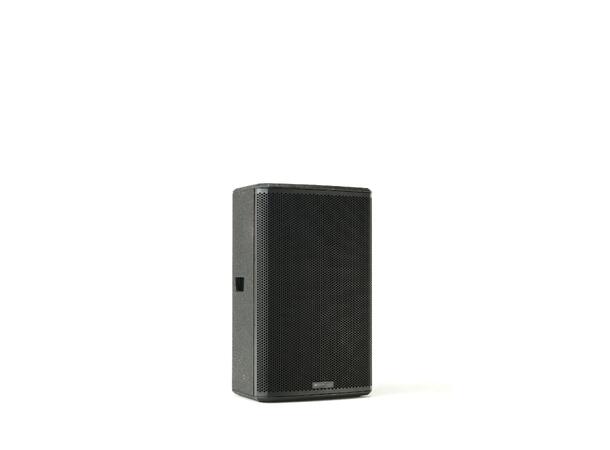

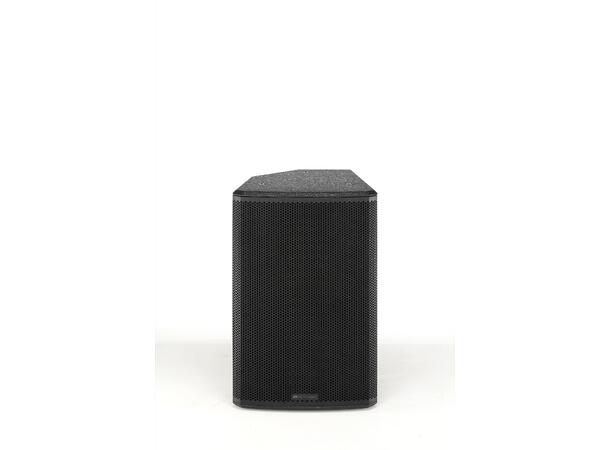

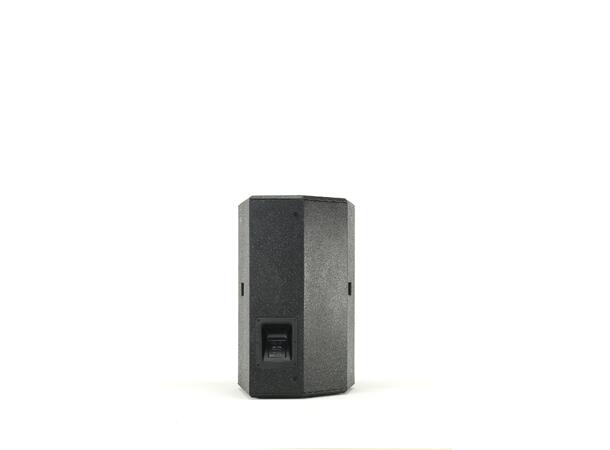

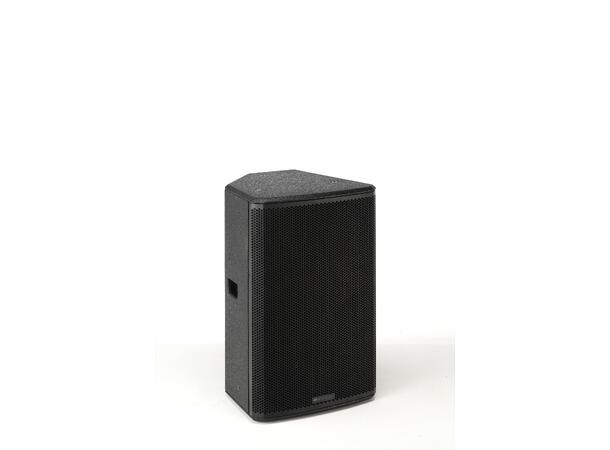

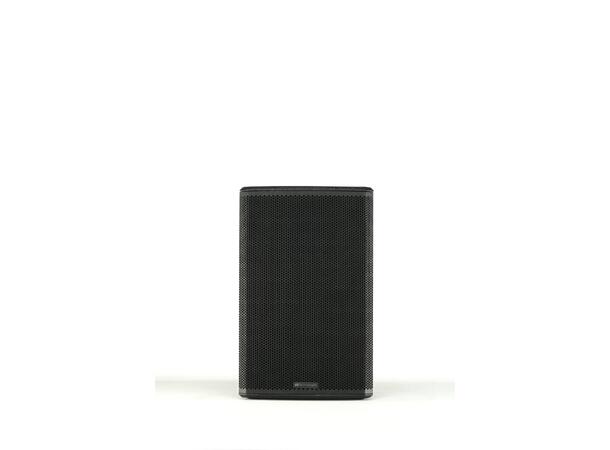

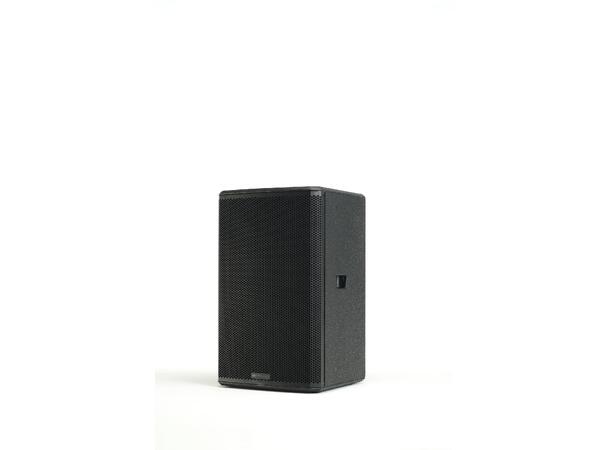

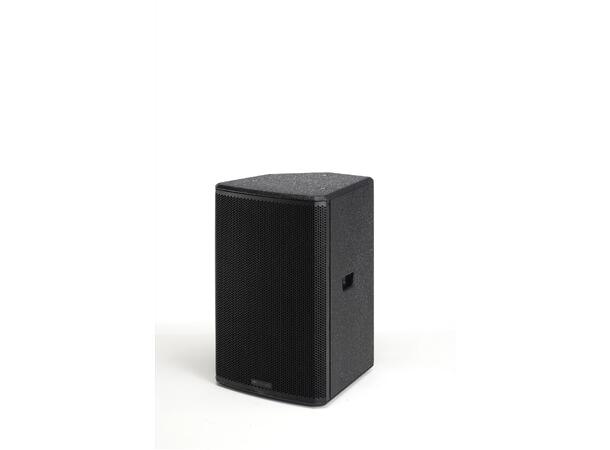

dB Technologies LVX P15

2-way passive speaker, 15" og 1" horn

Varenr: DBT-1030400730
-+
Bestillingsvare (15 dager)
BeskrivelseTeknisk infoTilbehørAlternativerRESSURSER
Beskrivelse
Technical Data
Speaker Type: 2-Way Passive Speaker

Acoustical data
Peak Power: 800 W
Impedance: 8 Ohms
Frequency Response [- 10 dB]: 58- 21.000 Hz
Max SPL: 129 dB
HF: 1 “, 1.35" v.c.
Directivity: 90x60°
Horn: Rotatable
LF: 15“, 2.5" v.c.

Input
Signal Input: 1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output: 1x Speakon (Pin 1+=+) (Pin 1-=-)

Mechanics
Housing:  Plywood
Pole Mount:  36 mm

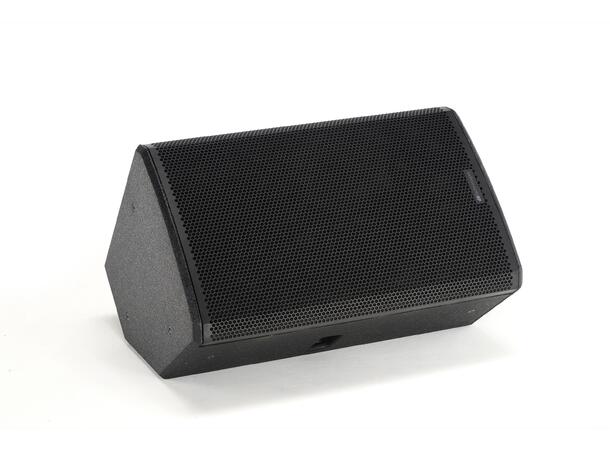

Angle Up:  Monitor use 40°
Rigging Points:  12 x M8
Handles:  2 (1X side)
Width:  420 mm (16.53 in)
Height: 680 mm (26.77 in)
Depth:  430 mm (16.92 in)
Weight: 19.7 kg (43.4 lbs)
Teknisk info

Produktinformasjon

- Tilkoblinger (Pluggtype HW) Speakon 4
