ES 1203
Høyttalertype: 3-forsterkers aktivt stereosystem med to fulltonekasser og basskasse.

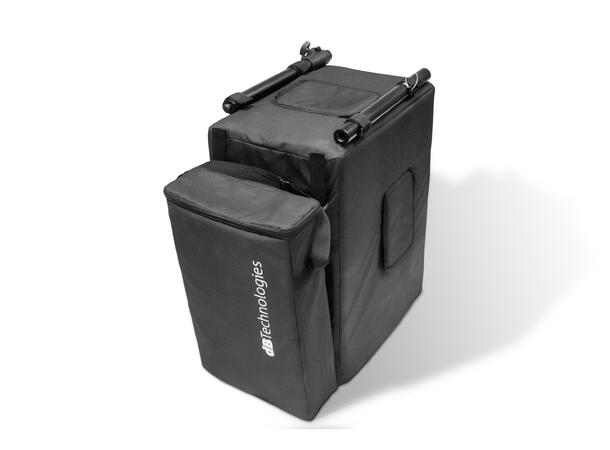

- BAG FOR SUB AND TOPS INCLUDED
- TRI-AMPED ACTIVE STEREO PA SYSTEM
- 2400 W POWER
- LATEST GENERATION DIGIPRO G4 AMP TECHNOLOGY
- USER-FRIENDLY DSP INTERFACE
- 3 CONFIGURATION MODES (MONO, STEREO OR DOUBLE COLUMN)
- ON-BOARD 5 CHANNEL MIXER
- BLUETOOTH® AUDIO RECEIVER
- 3 INPUT CHANNEL MODES (MIC/INSTR/LINE)
- CUSTOMIZABLE BALANCED OUTPUT CHANNEL (MIX/MONITOR/AUX)
- ULTRA WIDE COVERAGE

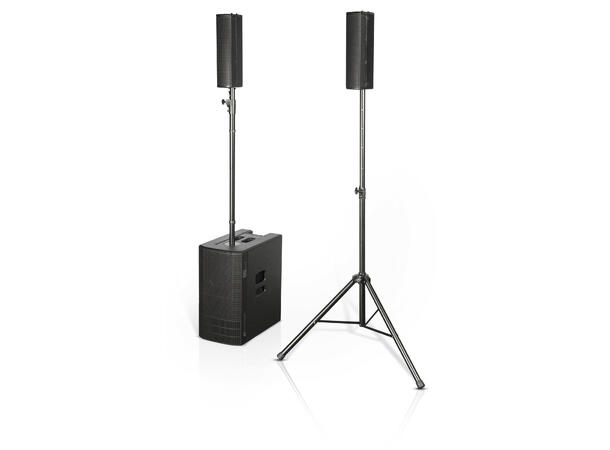

(Obs illustrassjonsbildet avviker fra pakkens innhold)
Vi anbefaler kjøp av høyttalerstsativ med fra K&M 21450 eller 214/635 mm rør dersom stativ ønskes slik som avbildet.
Acoustical data
Frequency Response [-10dB]: 35 - 20.000 Hz
Amplifier
Amp Technology Digipro® G4

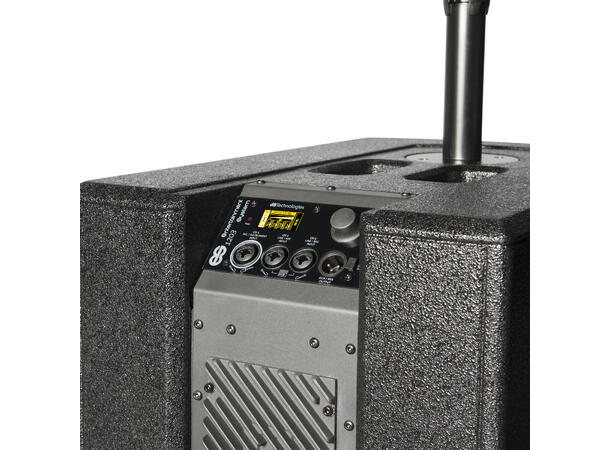

Controls
1x OLED Display with rotary encoder w/button
1x Audio signal monitoring LED
1x USB port (service data)
Power Supply : Fullarange with PFC
Power connection: VDE Socket
Processor:
Converter AD/DA: 24 Bit/48 Hz
Limiter: Peak, RMS, Thermal
Crossover Frequency LF-MF: 160 Hz
Digital Steering Up/Down/Far
Input Channels:
1x Mic/Instrument Combo (XLR/Jack)
2x Mic/Line Combo (XLR/Jack)
1x Bluetooth built-in receiver
Mix Output:
1x XLR balanced output
Mechanics:
Housing (Subwoofer) Plywood with full metal grille
Housing (Tops) Plywood with full metal grille
Pole Mount: 36 mm (M20 Thread)
Handles (subwoofer) 1x top, 1x lateral side
Width (Subwoofer): 360 mm
Height (Subwoofer): 680 mm
Depth (Subwoofer): 545 mm
Weight (Subwoofer) 29.3 Kg
