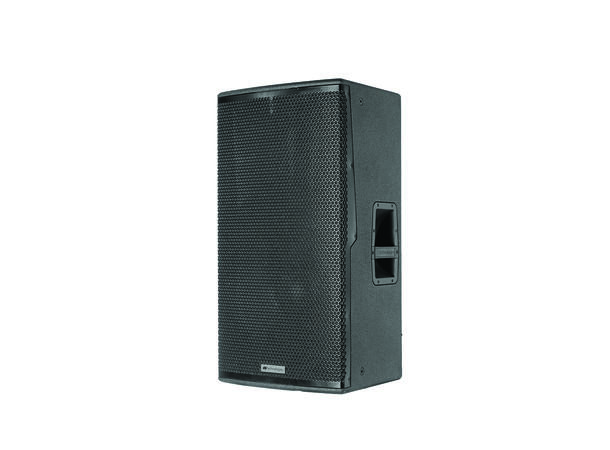

VIO X 310 aktiv 3-veis høyttaler med premium lydkvalitet og ytelse. Avanserte DSP muligheter via netverkskobling mot Aurora Net programvare.

The 3-way tri-amped design.

The MF-HF coaxial component mounted in both VIO X310 and VIO X315 utilize the same transducer used in the widely successful VIO L1610 line array module: it's a 4” voice coil plus 2.5” voice coil coaxial driver, an incredible heavy-duty and high-fidelity transducer reproducing from 500Hz up.
When it comes down to detailed mid-range reproduction, a compression driver diaphragm is much quicker and more accurate than a similar sized woofer. Furthermore, because of the compact dimensions, this content can be easily dispersed through a horn, just like you would do with an HF driver, for improved control over the sonic pattern.
These characteristics result in an incredibly faithful and meticulous reproduction of the most critical frequency range, essential for clear-cut intelligible vocals and instrument separation in your mix.
Since a great portion of the frequency content is horn loaded, not only is the sound pressure level impressive due to the acoustic loading, but also directivity control is maximized.
Last but not least, the sum of all these clever acoustic design choices combined with cutting edge class-D amplifiers and DSP processing result in remarkable sound pressure levels, as high as 137dB.

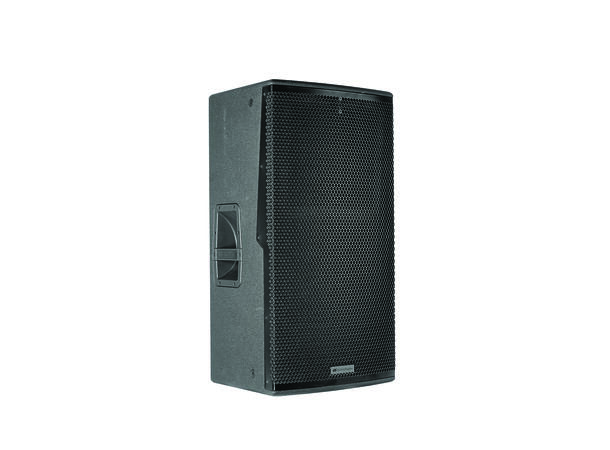

VIO X315 is equipped with a single high performance 15" neodymium woofer, capable of providing loud, precise, wide band performances, with no compromises.
The goal was to develop a real full-range PA system, with an astounding wide frequency response, reaching as low as 37Hz.

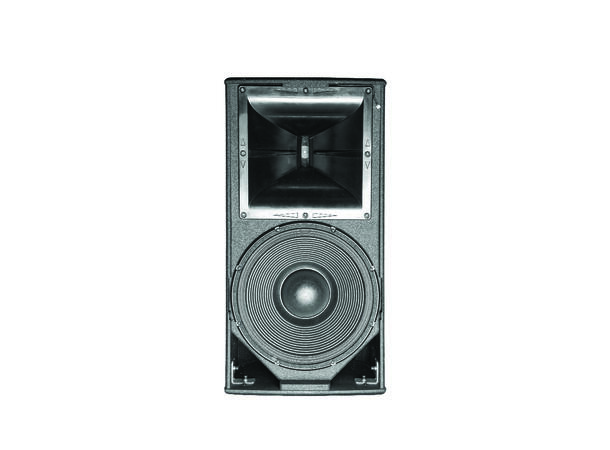

In this model, the mid-hi coaxial transducer is placed behind a 90°x50° horn which has been designed with a slight tilt downwards (around 5°) to optimize the coverage in average venues.

Technical Data
Speaker Type 3 Way Active Loudspeaker

Acoustical data
Usable bandwidth [-10dB] 34 - 19.800 Hz
Frequency Response [-6dB] 37 - 19.200 Hz
Max SPL 137 dB
HF 1x 4”, 4"- 2.5" v.c. Coaxial Neo
LF 15”, 2.5" v.c Neo
Directivity 90° x 40° [H x V]

Amplifier
Amplifier 1400 W RMS Class-D Digipro® G4
Cooling Convection
Power Supply Full range SMPS with PFC

Processor
Controller: DSP 32 bit
AD/DA Converter: 24 bit/96 kHz
Limiter: Peak, RMS, Thermal
Processing: FIR Linear Phase Filters

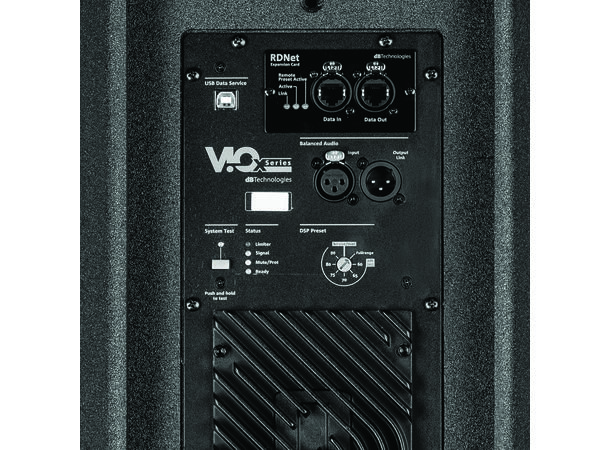

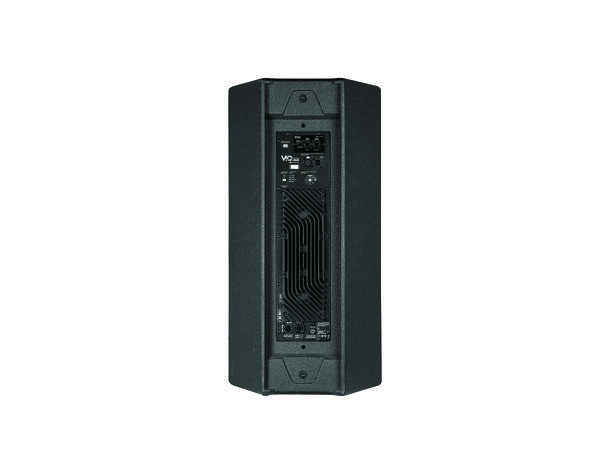

Input
Signal Input: 1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output: 1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket:  1x PowerCON TRUE1 In
                         1x PowerCON TRUE1 Out

Controls
1x input Rotary Encoder (8x presets)
1x Ready LED
1x Mute/Prot LED
1x Signal LED
1x Limiter LED
1x Frontal LED
1x Button and 1x LED System Test

Mechanics
Housing Wooden Cabinet

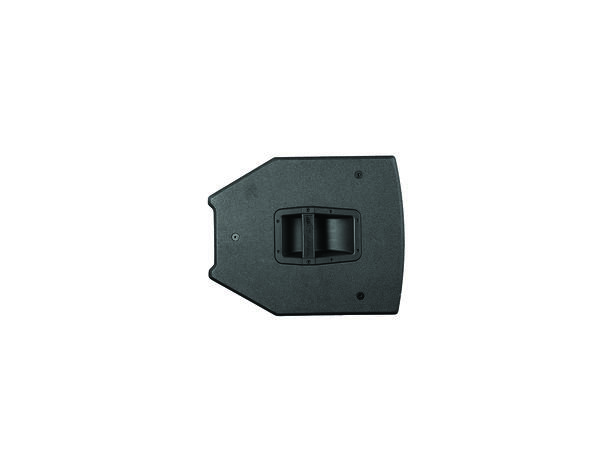

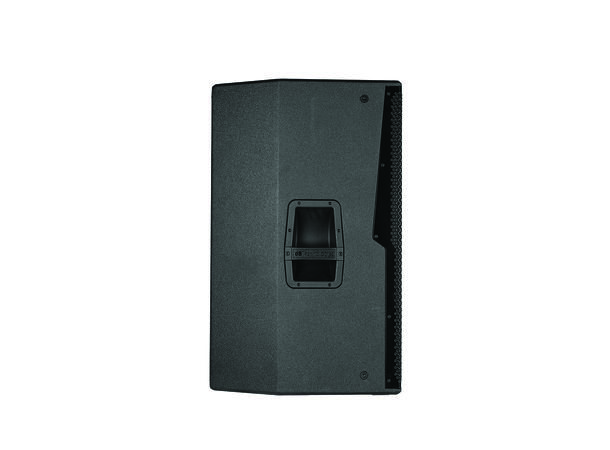

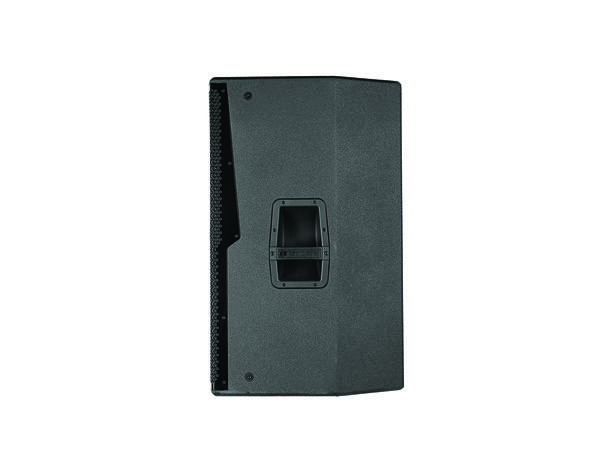

Handles 3 (1x side, 1 on top)
Rigging points 12x M10 Thread

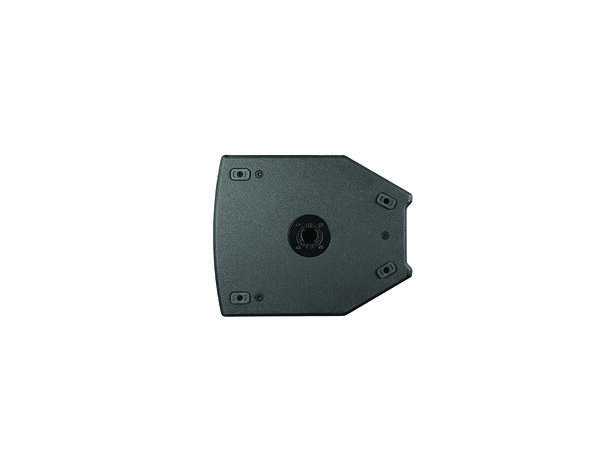

Pole mount D36mm
Width 420 mm (16.5 in)
Height 820 mm (32.3 in)
Depth 520 mm (20.5 in)
Weight 39.5 kg (87.1 lbs)

A feature-mix boosting high-end audio performance as well as advanced versatility. As a matter of facts, VIO X cabinets serve impressively as a stand alone PA system that can be stacked, flown or wall-mounted, as a full range PA or in combination with VIO S118 and VIO 118R subwoofers, but also act as the perfect side-fill, delay or stage monitoring system in larger VIO sound reinforcement applications.

The robust wooden enclosure allows horizontal use for monitoring purposes and is provided with a 36mm pole mount, and rigging points facilitating fixed installations with dedicated vertical and horizontal brackets. All VIO X cabinets are powered by on board Digipro G3 900 W RMS providing majestic sound pressure levels in compact size and very limited weight. Advanced sound processing featuring Linear Phase FIR Filters allows VIO Xs to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position.

On board presets let users adapt High Pass Filters to the chosen application, as well as dedicated EQ presets for Wedge or Fullrange mode. Last but not least, VIO X is equipped with RDNet port allowing monitoring and full remote control in real time via Aurora Net software (Windows and Mac).
