VIO X 310 aktiv 3-veis høyttaler med premium lydkvalitet og ytelse. Avanserte DSP muligheter via netverkskobling mot Aurora Net programvare.

Technical Data
Speaker Type 3 Way Active Loudspeaker

Acoustical data
Usable bandwidth [-10dB] 53 - 19.800 Hz
Frequency Response [-6dB] 57 - 19.200 Hz
Max SPL 138 dB

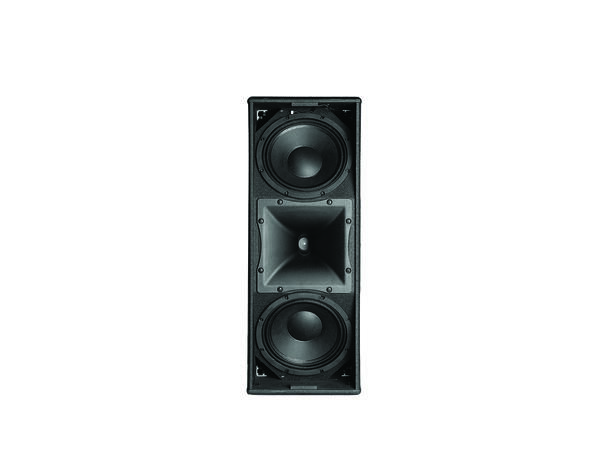

HF 1x 4”, 4"- 2.5" v.c. Coaxial Neo
LF 2x 10”, 2.5" v.c Neo
Directivity 90° x 40° [H x V]

Amplifier
Amplifier 1400 W RMS Class-D Digipro® G4
Cooling Convection
Power Supply Full range SMPS with PFC

Processor
Controller: DSP 32 bit
AD/DA Converter: 24 bit/96 kHz
Limiter: Peak, RMS, Thermal
Processing: FIR Linear Phase Filters

Input

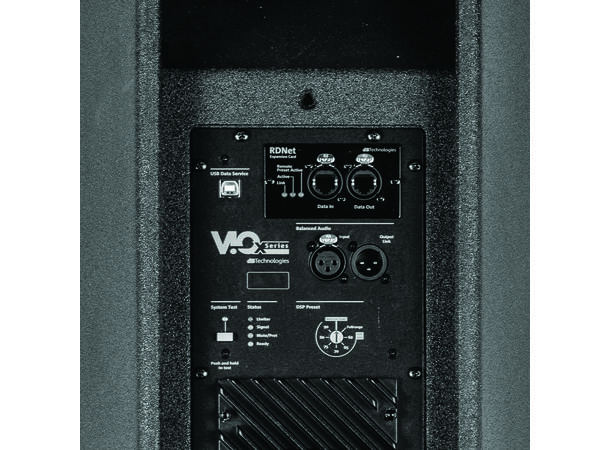

Signal Input: 1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service)
Signal Output: 1x XLR balanced, 1 x RJ45 Link (RDNet)
Power Socket:  1x PowerCON TRUE1 In
                         1x PowerCON TRUE1 Out

Controls
1x input Rotary Encoder (8x presets)
1x Ready LED
1x Mute/Prot LED
1x Signal LED
1x Limiter LED
1x Frontal LED
1x Button and 1x LED System Test

Mechanics
Housing Wooden Cabinet
Handles 1x on top / 1x on bottom
Rigging points flyable with bracket
Width 300 mm (11.8 in)
Height 780 mm (30.7 in)
Depth 430 mm (16.9 in)
Weight 28 kg (61.5 lbs)

A feature-mix boosting high-end audio performance as well as advanced versatility. As a matter of facts, VIO X cabinets serve impressively as a stand alone PA system that can be stacked, flown or wall-mounted, as a full range PA or in combination with VIO S118 and VIO 118R subwoofers, but also act as the perfect side-fill, delay or stage monitoring system in larger VIO sound reinforcement applications.

The robust wooden enclosure allows horizontal use for monitoring purposes and is provided with a 36mm pole mount, and rigging points facilitating fixed installations with dedicated vertical and horizontal brackets. All VIO X cabinets are powered by on board Digipro G3 900 W RMS providing majestic sound pressure levels in compact size and very limited weight. Advanced sound processing featuring Linear Phase FIR Filters allows VIO Xs to deliver an extremely coherent audio performance, standing out for its intelligibility and clarity from every listening position.

On board presets let users adapt High Pass Filters to the chosen application, as well as dedicated EQ presets for Wedge or Fullrange mode. Last but not least, VIO X is equipped with RDNet port allowing monitoring and full remote control in real time via Aurora Net software (Windows and Mac).
