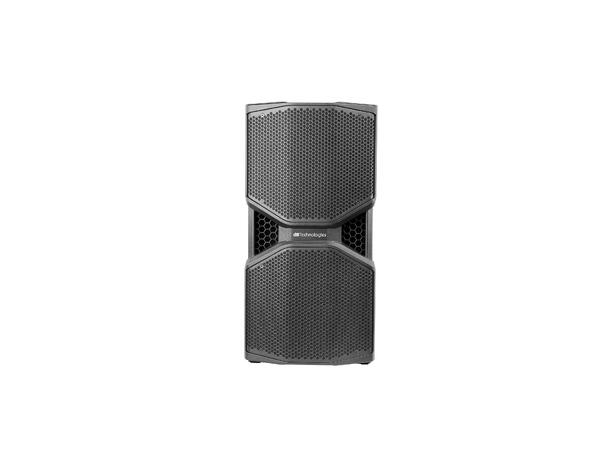

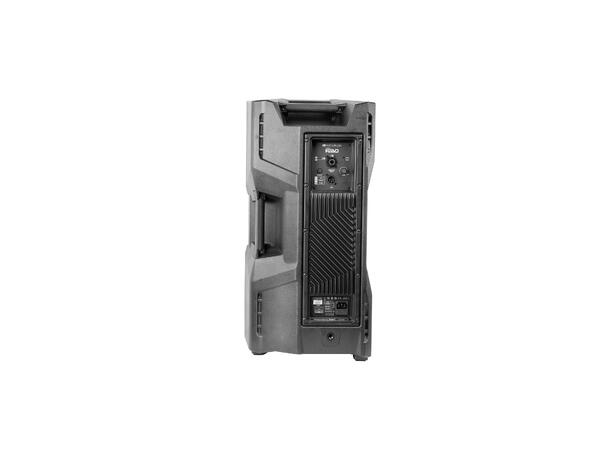

dB Technologies Opera Reevo 210

OPERA REEVO 210 deliver an astonishing sound pressure level with touring-grade sound definition and a remarkable low-end extension in a compact and freshly designed enclosure accessible to anybody who wants great sound anywhere.


Technical Data
Speaker TypeQuasi 3-Way Active Speaker

Acoustical data
Frequency Response [-10dB]  54 - 19.400 Hz
Frequency Response [- 6dB]  60 - 19.100 Hz
Max SPL:  132.5 dB
HF:  1" Exit CD, 1.75" v.c.
Type HF:  Compression driver
Horizontal Directivity:  100°
Vertical Directivity:  90°
Horn:  Asymmetrical Horn

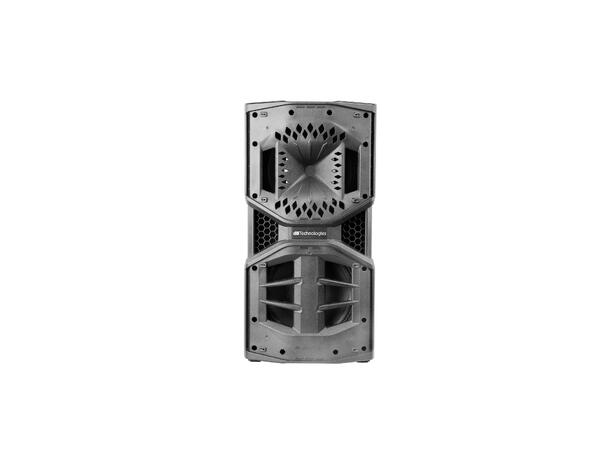

LF:  2x 10" Neo, 2.5" v.c.

Amplifier
Amp Technology: Digipro G2 with SMPS
Amp Class: Class D
RMS Power: 1050 W (525W + 525W)
Peak Power: 2100 W (1050W + 1050W)

Processor
Controller: DSP 28/56 bit
AD/DA Converter: 24 bit/48 KHz
CrossOver Frequency: 1260 Hz
Limiter: Peak, RMS, Thermal
Advanced DSP Functions: Linear Phase FIR Filters

Input
Signal Input: 1x Combo (XLR/Jack 6.3 mm) Line
Signal Output: 1x XLR Male (True link)
Controls: Gain (rotary)

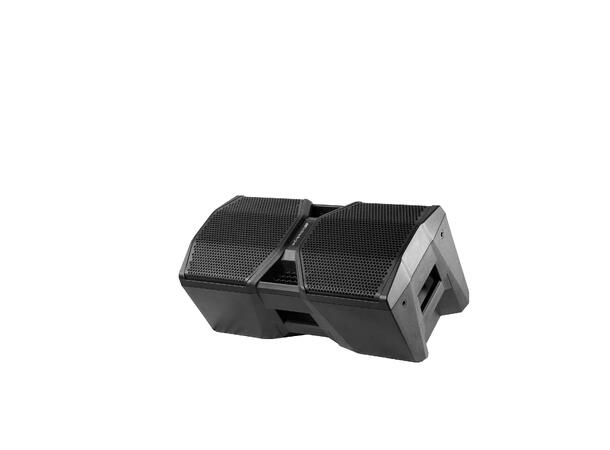

   Preset (Flat, Playback, Wedge)

Mechanics
Housing: Polyproylene
Grille: Full grille

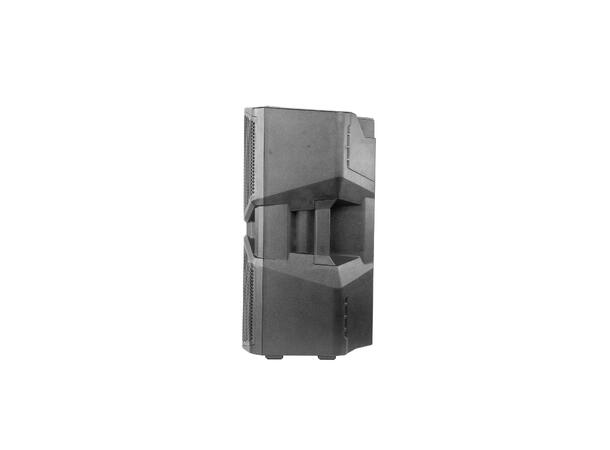

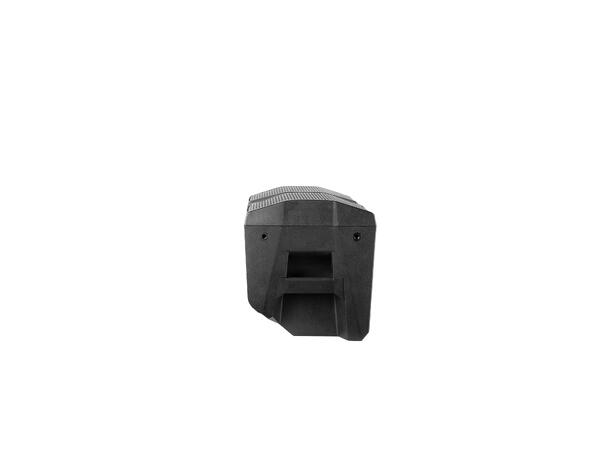

Handles: 1 on left Side, 1 on Top

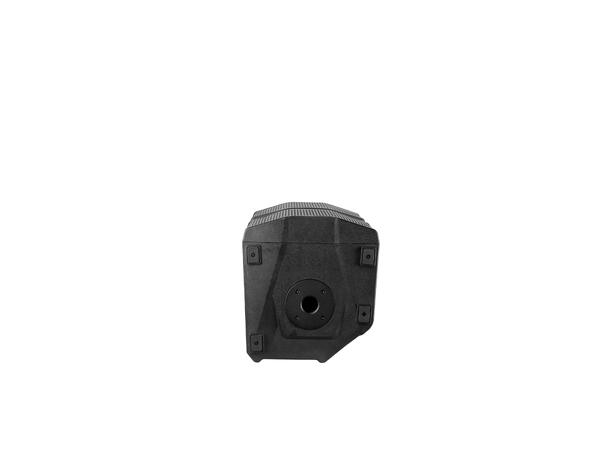

Rigging Points: 2x M10 on Top + 1x M10 on Back
Pole Mount: D36 mm
Width: 300 mm (11.81 in)
Height: 604 mm (23.78 in)
Depth: 324 mm (12.76 in)
Weight: 17.2 kg (37 lbs)
