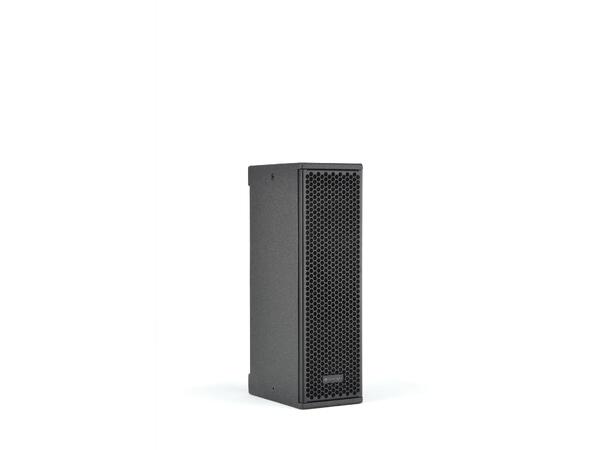

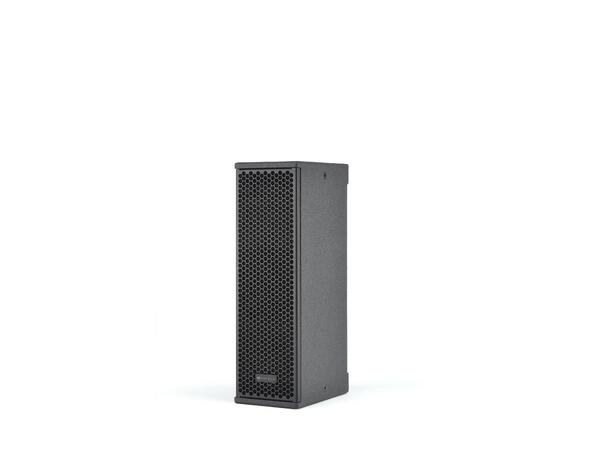

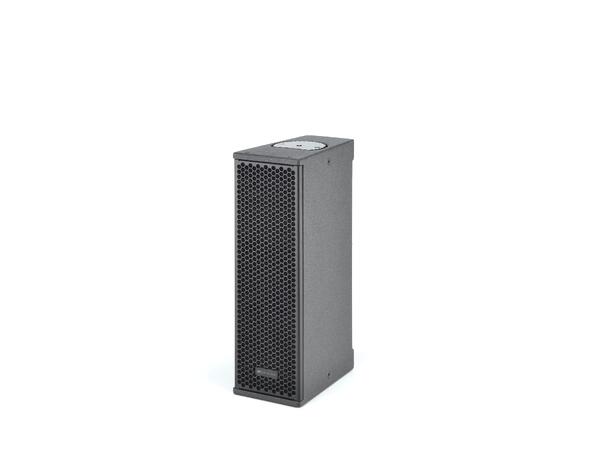

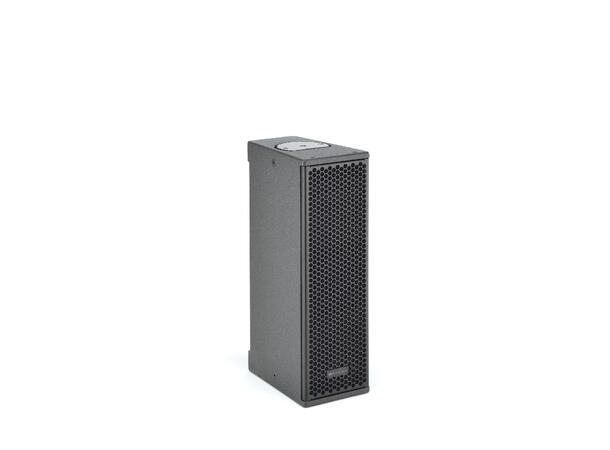

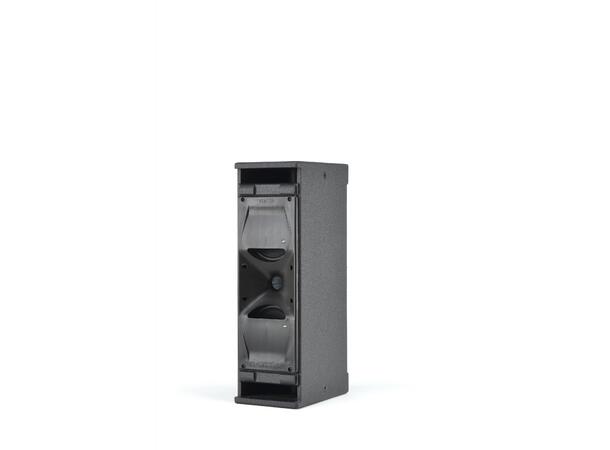

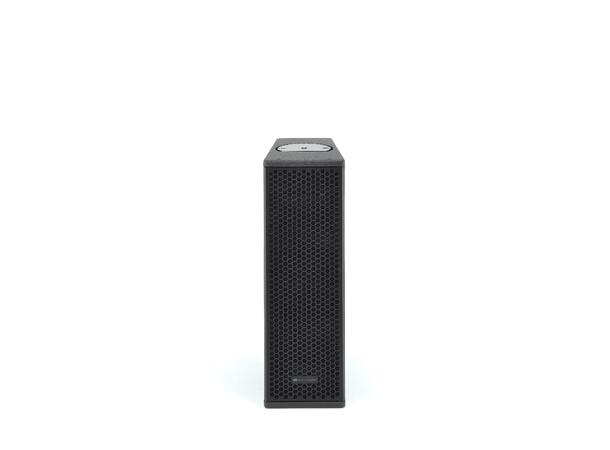

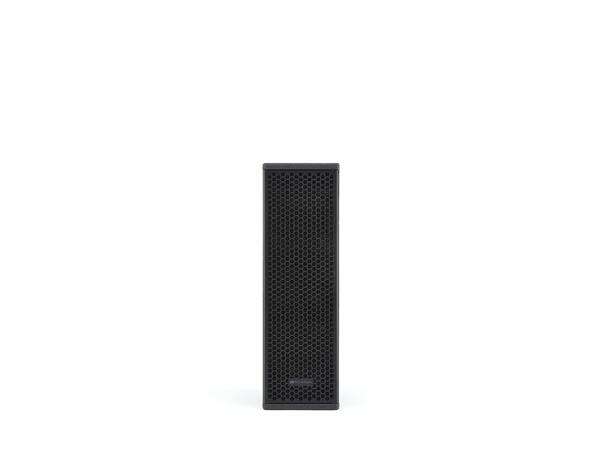

VIO X205-60
VIO X205 is a 2-way speaker equipped with
2x5” (1” voice coil) and 1x1” driver (1.4” voice coil). The 400 W RMS
DigiproG3 amplifier powers a cabinet able to deliver up to 126 dB
despite its very compact dimensions: only 150x 485x240 mm (WxHxD).
Advanced
sound processing featuring Linear Phase FIR Filters allows VIO X205 to
deliver an extremely coherent audio performance, standing out for its
intelligibility and clarity from every listening position. On board
presets let users adapt High Pass Filters to the chosen application.
Keeping
in mind the needs of the most demanding professionals, VIO X205 is

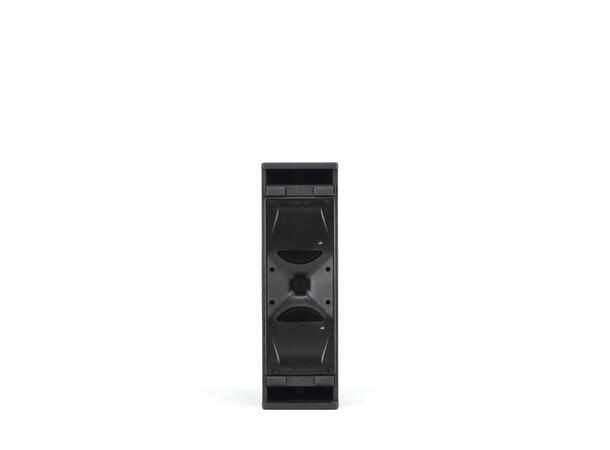

available in 2 models featuring 2 different constant directivity horns
allowing a 60°x60° (for VIO X205 60) or 100°x100° (for VIO X205 100)
dispersion pattern. This means that each user will be able to choose the
model that best fits his project as full-range PA, fixed installation,
FOH monitoring, front-fill in large sound reinforcement systems, etc.
Just
like other cabinets in the VIO X family, 205 is enabled for real time
monitoring and remote control via RDNet protocol and Aurora Net software
(Windows and Mac).
The cabinet is also provided with on board controls to set High Pass Filters as well as INPUT sensitivity.
This
solid wooden cabinet is reinforced with a polyurea finish and features

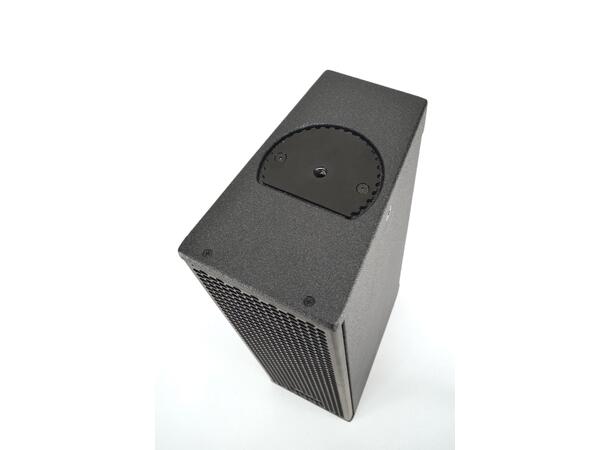

M10 threaded nuts on top and bottom allowing installation with

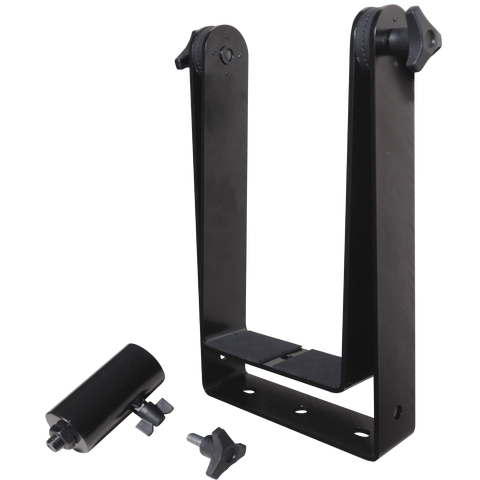

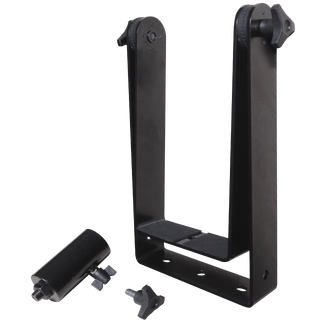

accessories WB-VIOX205 H (horizontal bracket) or WB-VIOX205 V (vertical
bracket). The cabinet can be easily installed on pole thanks to
SA-VIOX205 pole mount adaptor (35mm) allowing 2 tilt options. Functional
cover FC VIOX 205 is also available as an accessory.
Technical Data:
Speaker Type: 2 Way Active Loudspeaker
Acoustical data:
Usable bandwidth [-10dB] 75 - 21.000 Hz
Frequency Response [-6dB] 80 - 20.000 Hz
VIO X 205-100 Directivity: 60° x 60°
Amplifier
Amplifier: 400 W RMS Class-D Digipro® G3
Power Supply: Auto-range SMPS
Processor:
Controller: DSP 28/56 bit
AD/DA Converter 24 bit/48 kHz
Limiter: Peak, RMS, Thermal
Processing: FIR Linear Phase Filters

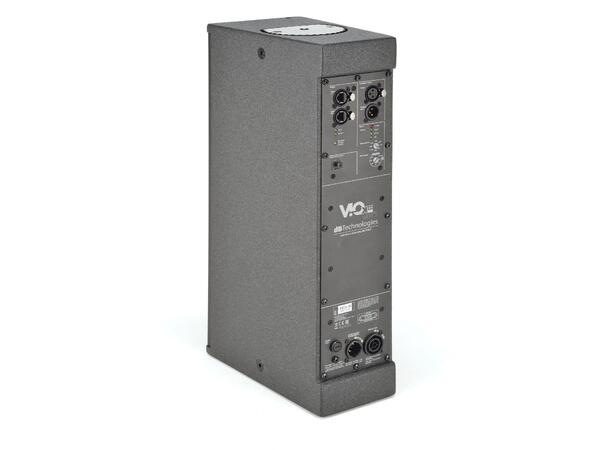

Input:
Signal Input:
1 x XLR balanced,
1 x RJ45 Link (RDNet),
1x USB (Data Service)
Signal Output:
1x XLR balanced,
1 x RJ45 Link (RDNet)
Power Socket
1x PowerCON TRUE1 In
1x PowerCON TRUE1 Out
Controls
1x Rotary Encoder (8x EQ presets)
1x Input Attenuation Rotary Switch
1x On LED
1x Status LED
1x Signal LED
1x Limiter LED
Mechanics
Housing: Wooden Cabinet, Polyurea painting
Wedge Angle: Monitor Use 5°
Rigging points: 2x M10 Threaded Nuts (top and bottom)
Weight: 7.8 kg (17.2 lbs)
