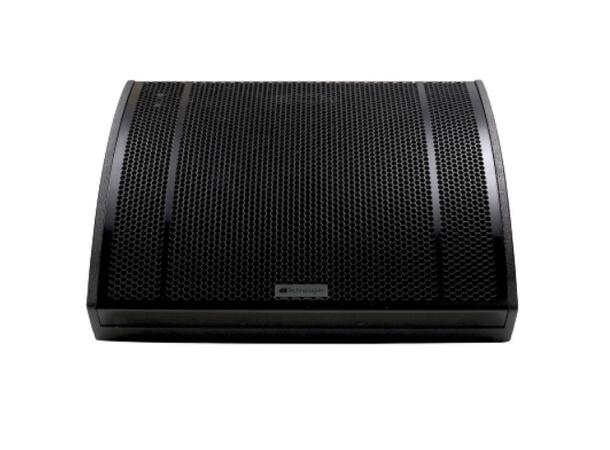

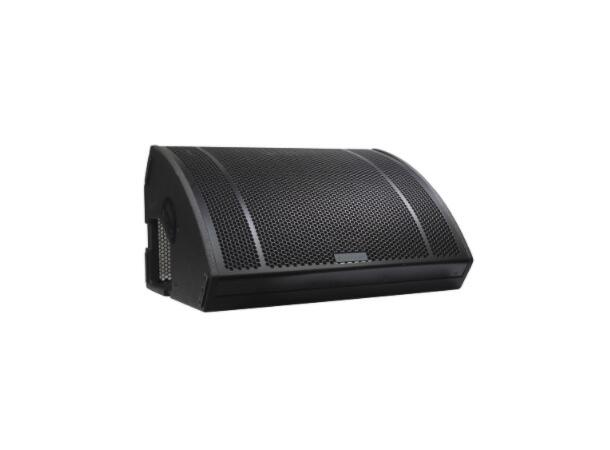

- Active 2-way Coaxial Stage monitor
- 1600W RMS Class-D amplifier

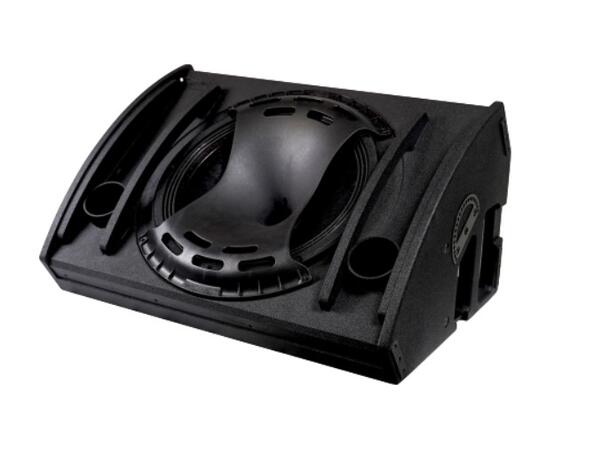

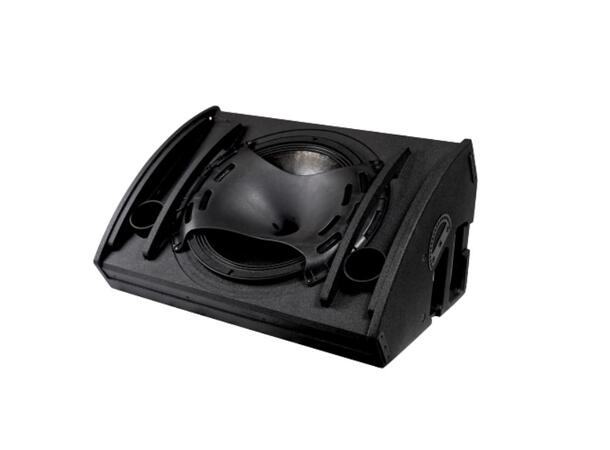

- Rotatable horn
- FULL RANGE SMPS WITH PFC
- ADVANCED DSP FEATURING LINEAR PHASE FIR FILTERS
- MODULAR SLOT FOR NETWORK AND DIGITAL AUDIO EXPANSION CARDS (RDNET CARD INSTALLED)
- NFC™ + FRONT LED IDENTIFICATION SYSTEM
- SYSTEM TEST FOR QUICK TRANSDUCERS DIAGNOSTICS

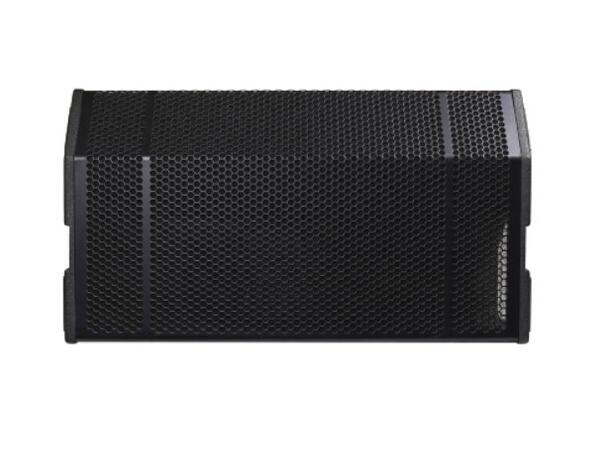

- Exclusive front-rear grille design
VIO W15T takes advantage of a coaxial design and is equipped with a neodymium coaxial component with a 15" woofer and a 3" driver.The design of the horn allows a very precise dispersion pattern (60° horizontal and 80° vertical) which can be easily reversed by rotating the horn, adapting the wedge to the application needed. VIO W15T is a self powered box equipped with top notch class-D Digipro G4 amplifier delivering 1600W RMS. This is the same amp module used in our premium sound reinforcement systems. VIO W15T is able to deliver up to 137 dB SPL while offering a great feedback rejection. Moreover, the sound processing takes advantage of FIR filters in order to reproduce a very flat frequency and phase response resulting in the most faithful audio performance.The PFC power factor corrector allows for the utmost reliability at any input voltage. A 380v resistant power supply makes the wedge shock resistant. And a real time impedance control allows for a real time check of transducers' health. Aurora Net software continuously runs this test, but you can check the wedge at any time, simply by pressing this button on board. The same software also allows for DSP management such as delay, eq and levels. A hi-brightness LED bulb on the front of the enclosure, contributes to help the user to recognize, identify and match each cabinet with its software alias. As a default, the preamplifier is equipped with a RDNet card, and it is ready for upgrade to Dante card. The preamp module is flush mounted in the side panel, so that no connector are visible. And this will definitely looks nice on a stage also thanks to the clever surrounding design of the metal grille. Furthermore, this allows for sidestacking of two wedges with no gap.When used vertically, e.g. for drumfill applications. the preamp is completely protected from the rain.A great versatility is granted by the addition of a multifunctional bracket, enabling the wedge for pole mounting and other kind of fixed applications.
Technical Data
Speaker Type2-Way Active Coaxial Stage MonitorAcoustical data
Usable Bandwith [- 10 dB]49 - 17,500 Hz
Frequency Response [- 6 dB]55 - 16,000 Hz
Max SPL137.5 dB
HF1x 1.4" - 3" v.c. Neodymium
LF1x 15" - 3" v.c. Neodymium
Horizontal Directivity80°
Vertical Directivity60°
Amplifier
Amplifier1600 W RMS Class D Digipro® G4
CoolingConvection + internal fan
Power SupplyFull-range SMPS with PFC (100V~-240V~, 50-60Hz)
Processor
Controller DSP 32 bit
Converter AD/DA24 bit/96 kHz
Limiter Dual Active Peak, RMS, Thermal
Processing (filters)Linear Phase FIR Filters

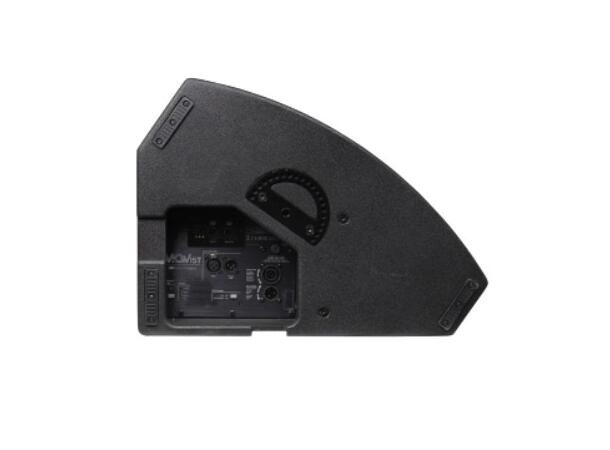

InputSignal Input1x XLR female, 1 x USB (Data Service)
Signal Output1xXLR male
Expansion CardRDNet Card (1x RJ45 IN 1x RJ45 Link)
Dante Card [Optional]
Power Socket1x PowerCON TRUE1 In
1xPowerCON TRUE1 OutControls1x switch Flat - service/user
1x switch System test
1x led ON
1x led STATUS
1x led SIGNAL
1x led LIMITER
1x LED TEST
1x frontal ID led
Special FeaturesFrontal LED Identification System
380V Resistant SMPS
Opto-isolated floating pre-amp
System Test (transducers diagnostics)
MechanicsHousing:
Wooden cabinet, Polyurea painting
Handles1 + 2 recessions per side
Width650 mm (25.59 in)
Height360 mm (14.17 in)
Depth490 mm (19.29 in)
Weight29 kg (63.9 lbs)
