LVX P cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance.  Full range LVX P10 provides a 90°x70° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install.  The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP810H) or vertical (VB-LP810V) brackets.  The cabinet features an integrated handle on back side and a 36 mm pole mount plate. All enclosures and accessories of LVX P series are available in black or white version.

Technical Data
Speaker Type 2-Way Passive Speaker

Acoustical data
Peak Power 600 W
Impedance 8 Ohms
Frequency Response [- 10 dB] 73- 19.000 Hz
Max SPL 125 dB
HF 1 “, 1" v.c.
Directivity 90x70 °
Horn Rotatable
LF 10“, 1.5" v.c.

Input
Signal Input
1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output
1x Speakon (Pin 1+=+) (Pin 1-=-)

Mechanics
Housing Plywood
Pole Mount 36 mm

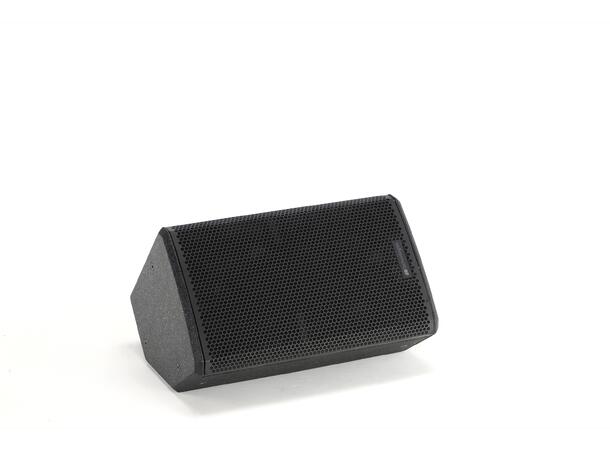

Angle Up Monitor use 40°
Rigging Points 12 x M8

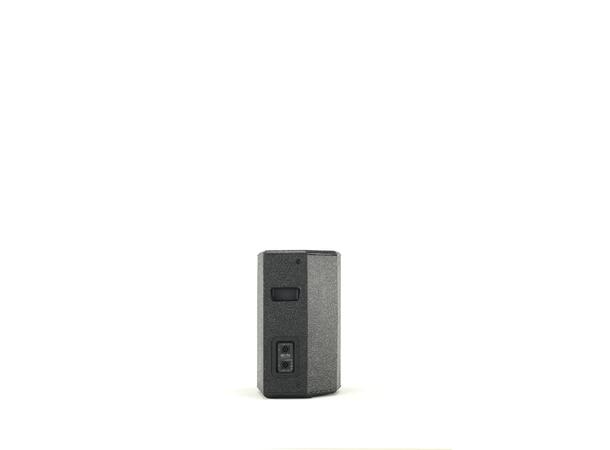

Handles 1 on back side
Width 300 mm (11.81 in)
Height 496 mm (19.52 in)
Depth 298 mm (11.73 in)
Weight 9.3 kg (20.5 lbs)
