DAD AX-32 L8 inngangskort AD
- Sampling, resolution 5bit sigma/delta@5.645 or 6.144 MHz, 24 bit PCM
- PCM (DXD) sample rates 44,1, 48, 88.2, 96, 174.4, 192, 352.8, 384 kHz
- DSD sample rates 2.8224 & 5.6448 Mhz (64 & 128 fs)
- Dynamic range (A) > 123 dB
- THD+N(A) < -117 dB@-3dB FS / 0,00014%
- Cross talk < -120 dB
- Input Impedance (differential) > 10 k Ohm
- Max input level Adjustable from 9 dBu to 30 dBu in steps of 0.1 dB

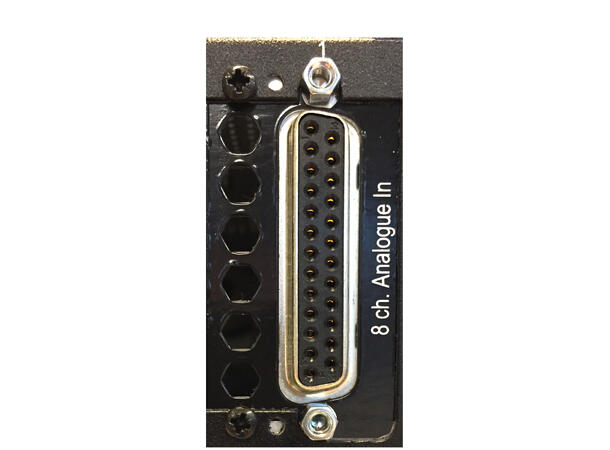

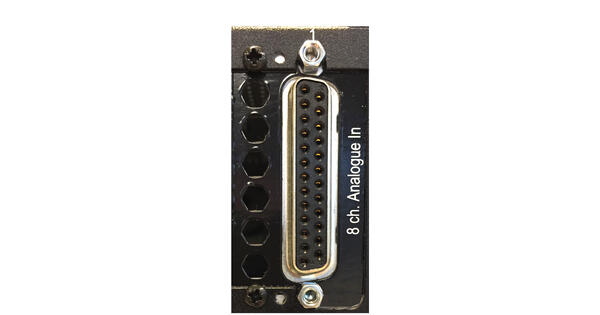

Tilkobling: 25 pin D-Sub Analog TASCAM pinformat
