HarmonicEQ® Evolution

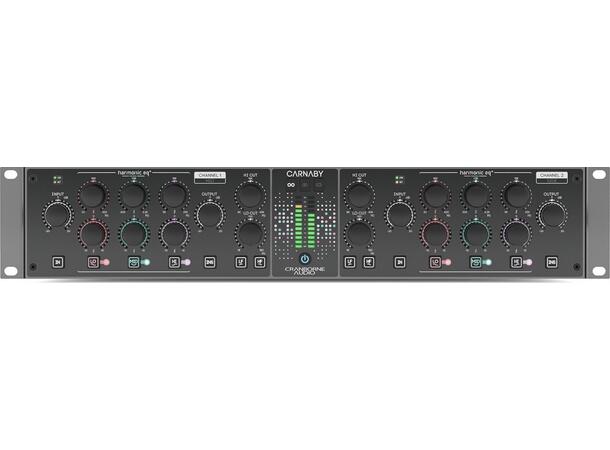

Carnaby HE2 is a 2u 19-Inch rack stereo 3-band parametric EQ – an evolution of our Carnaby 500.
Carnaby
HE2 HarmonicEQ® utilises the same unique and revolutionary EQ concept
found in Carnaby 500, using harmonic saturation to boost and cut
frequency content. Enhance your sources, stems and mixes with genuine
analogue harmonic saturation with the feel, familiarity, and control of
an equaliser. Explore how we take this concept even further.
All
specifications are typical performance unless otherwise noted. All
specifications are subject to change at any time. Tested with Audio
Precision APx555.
|
|
Technical Data
|
|
Test Signal Path
|
APx555 (Line Out) - Input - Line Output - APx555 (Line In)
|
|
Max Input Level
|
+26.0dBu (<0.003% THD)
|
| Max Output Level |
+26.0dBu (<0.003% THD) |
|
Noise Floor
|
<-93dBu all bands bypassed
|
|
Input Impedance
|
Line = 10 kOhms
|
|
Output Impedance
|
Line = 150 Ohms
|
|
Current Draw
|
140mA per rail - idle, 160mA peak
|
|
EQ Specifications
|
|
Hi Band
|
|
Filter Type
|
High Shelf Filter
|
|
Frequency Range
|
5kHz - 25kHz
|
| Boost/Cut |
±12dB, @ -6dBu
+13dB, - 18dB, @ +14dBu |
|
Harmonics
|
~8% THD+N (100Hz, +4dBu)
~12% THD+N (100Hz, +14dBu)
|
| Mid Band |
| Filter Type |
Peak Filter |
| Frequency Range |
200Hz - 6.2kHz |
| Boost/Cut |
±5dB @ -6dBu
+10dB, - 18dB @ +14dBu |
| Harmonics |
~8% THD+N (100Hz, +4dBu)
~12% THD+N (100Hz, +14dBu) |
| Lo Band |
| Filter Type |
Low Shelf Filter |
| Frequency Range |
20Hz - 420Hz |
| Boost/Cut |
±8.5dB @ -6dBu
±12dB @ +14dBu |
| Harmonics |
~8% THD+N (100Hz, +4dBu)
~12% THD+N (100Hz, +14dBu) |
Hi Cut Filter |
| Type |
Progressive slope low-pass filter |
| Slope |
1st order - 3db per octave
2nd order - 6db per octave
3rd order - 12dB per octave |
| Frequency Range |
-3db, 8kHz -40kHz |
Lo Cut Filter |
| Type |
Progressive slope high-pass filter |
| Slope |
1st order - 6db per octave
2nd order - 12db per octave
3rd order - 18dB per octave |
| Frequency Range |
-3db, 18Hz -180Hz |
1/4" TRS Inserts
|
| Type |
Balanced, dedicated send & return, normalled |
| Config |
Post M/S encoding & Carnaby, pre M/S decoding |
| Max Input Level (return) |
+26.0dBu (<0.003% THD+N) |
| Max Output Level (send) |
+26.0dBu (<0.003% THD+N) |
Mid/Side |
| Type |
Encoder/decoder |
| Matrix |
Sum-difference matrix |
|
Environmental
|
|
Operating Temperature
|
+1 to 35 degrees Celsius
|
|
Storage Conditions
|
-20 to 50 degrees Celsius
|
| Dims/Weights |
| Unit |
| Width |
48.3cm (19”) (Rackmount) |
| Height |
8.9cm (3.5") (2u) |
| Depth |
23.6cm (9.3") |
| Unit Weight |
6kg (13lbs) |
| Shipping carton |
| Width |
60cm (23.6") |
| Height |
18cm (7") |
| Depth |
35cm (13.8") |
| Carton Weight |
6.5 kg (14 lbs) |
