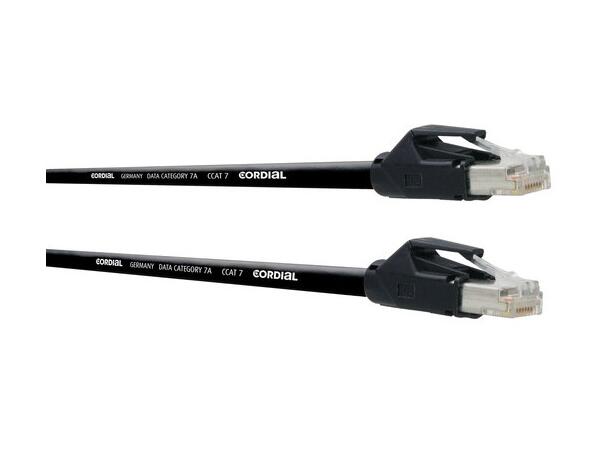

Cat 7 kabel med flettet skjerm, myk og fleksibel egnet for touring / stage
| Type |
CAT 7A data cable |
| Part no. |
CCAT 7 |

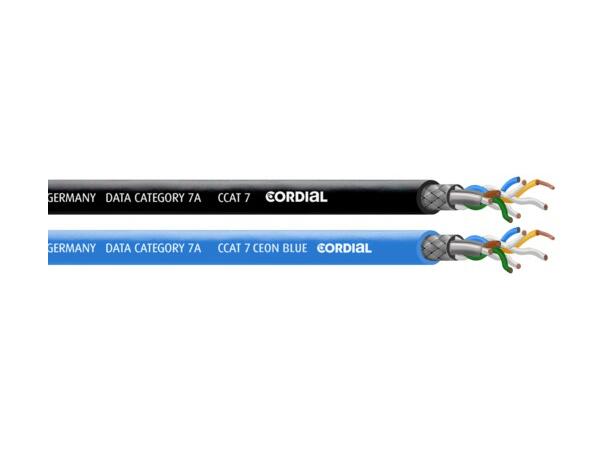

Mechanical data
| Conductor area |
0,14 mm² (AWG 26) |
| Composition of conductor |
7 x 0,16 mm bare copper |
| Conductor isolation |
Foam skin PE |

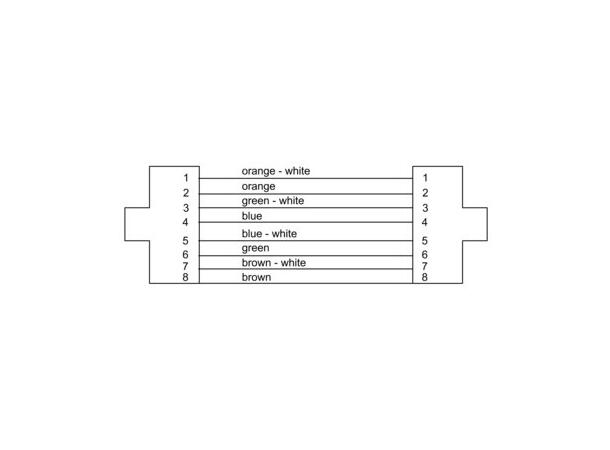

| Composition of cores |
4 pairs (PimF) |
| Screen |
S/FTP tinned copper braid |
| Pair Screen |
foil (AL/PT) |
| Overall jacket |
PUR |
| Overall diameter |
6,4 mm |
| Weight |
35 g/m |
| Working temperature |
|
| mobile |
(0 °C) - (+50 °C) |
| fixed |
(-20 °C) - (+60 °C) |
| min.Bending radius |
|
| mobile |
~ 51 mm |
| fixed |
~ 26 mm |
| Electrical data |
|
| Conductor resistance |
125 ? / km |
| Capacity (cond./cond.) |
43 nF / km |
| Attenuation |
|
| 1 MHz |
3 dB (100m) |
| 4 MHz |
5 dB (100m) |
| 10 MHz |
8 dB (100m) |
| 20 MHz |
11 dB (100m) |
| 100 MHz |
26 dB (100m) |
| 200 MHz |
37 dB (100m) |
| Characteristic impedance |
100 ? ± 5 % (100 MHz) |
| Crosstalk Attenuation (NEXT) |
|
| 1 MHz |
97 dB (100m) |
| 4 MHz |
95 dB (100m) |
| 10 MHz |
92 dB (100m) |
| 20 MHz |
89 db (100m) |
| 100 MHz |
74 dB (100m) |
| Test voltage |
|
