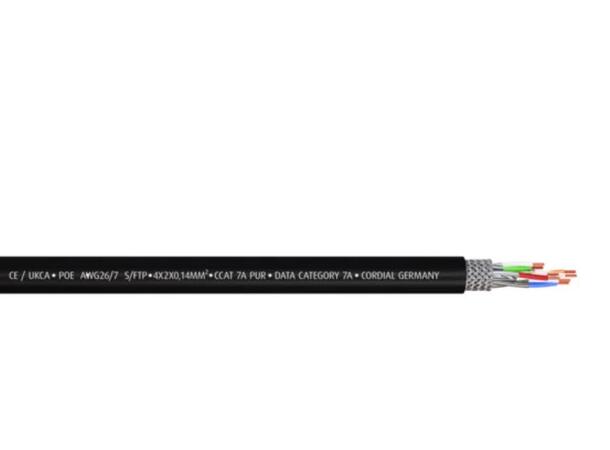

CSE NN 7A PUR data patch cable features our CCAT 7A PUR bulk cable and HIROSE® RJ45 connectors equipped with NEUTRIK® etherCON® cable connector protection. The CCAT 7A PUR network cable is the ideal choice for high-performance networks. Due to its double S/FTP shielding, it can transmit CAT 7A data class signals with an impressive bandwidth of 1000 MHz (1 GHz, Gigabit Ethernet). The robust PUR jacket effectively protects the cable from environmental influences and mechanical stress in the case of mobile indoor and outdoor applications.
It has specifically been developed for audio networks, lighting control and EtherSound™ systems and features a flexible inner conductor (AWG 26/7) thus making it ideal for patch cables and device connections.
Furthermore, it supports Power over Ethernet (PoE++) (complying with the IEEE 802.3af-2003 standard) with an output of 15.4 watts, enhancing its range of applications considerably.
Its high abrasion resistance and its resistance to oil, microbes and chemicals should also be emphasized. Whether for mobile applications, stage use or outdoor transmissions - this cable ensures superb performance and reliability, even under demanding conditions.
- Flexible, robust, reelable
- PUR jacket for mobile indoor/outdoor applications
- Data class CAT 7A (1000 MHz)
- Overall shield S/FTP
- AWG 26/7, with 7 strands/conductors
- PoE (15.4W) complying with IEEE 802.3af-2003 standards, max. channel PoE (15.4W) 70m
- flame-retardant according to UL 1581 §1090, §1100 (FT2) and IEC 60332-1-2
- halogen-free according to EN 50267-2-1 and IEC 60754-1
- oil-resistant according to IEC 60811-2-1, ICEA S-82-552 and ASTM IRM 902
- Sludge resistance according to NEK 606
- Ozone resistance according to EN 50396
- Microbe resistance according to VDE 0282/10
- Chemical compatibility - good (diesel, kerosene, petroleum)
- HIROSE® RJ45 connectors featuring the NEUTRIK® etherCON® cable connector protection.
- Transparent shrink-on tube for easy cable identification
