Cordial Mono Minijack Cordial CPI 0.15 ZZ 3.5mm - 3.5mm

Cordial Mono Minijack

Cordial CPI 0.15 ZZ 3.5mm - 3.5mm

Varenr: 122091
20+ på lager
BeskrivelseTeknisk infoAlternativerRESSURSER
Beskrivelse

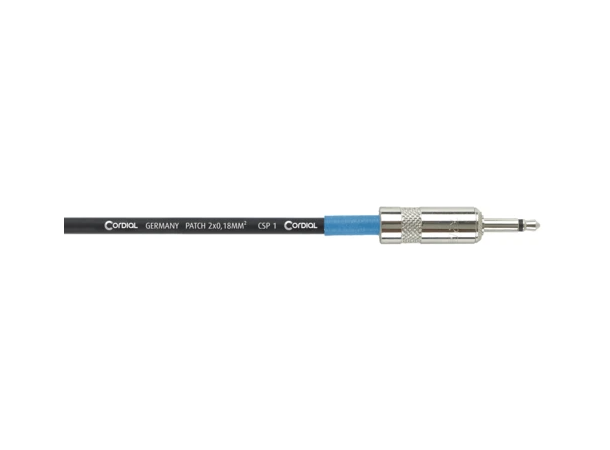

Cordial 3.5mm to 3.5mm mono



In intensive co-operation with sound buffs, our CPI ZZ patch cable was specifically developed for working with modular synthesizers.

In this particular field the challenges as regards patch cables are pretty stiff because analog synthesizers are quite demanding to work with, e.g. becauseconstantly changing signals and a myriad of variations can be generated

the necessity to keep track of highly complex structures
the cables are exposed to extreme tensile strains
any interference would distort the rather sensitive signals
CORDIAL offers you the suitable overall solution:

length-specific color codings by means of multi-colored sleeves.
hand-soldered 3.5 mm REAN all-metal connectors guaranteeing perfect strain relief
welded on plastic connectors totally prevent any interferences
the shielded bulk cable CSP 1 utilizes ultra-pure copper (OFC) and complies with RoHS III environmental standards.
Audio and CV transmissions at the highest quality level!



Specs:

  • Conductor area - 0.18 mm²
  • AWG - AWG 25
  • Composition of conductor - 23 x 0.10 mm
  • Material - bare copper
  • Conductor resistance -  < 106 Ohm/km
  • Shielding foil - (PT/AL) + drain wire
  • Capacity cond.-cond. (pF/m) - 76 pF/m
  • Category - Microphone
  • Diameter - 3.5 ± 0.2 mm
  • Weight - 14 g/m
  • Conductor isolation - PE
Teknisk info

Produktinformasjon

- Plugg inngang (hun) Minijack 3,5mm
- Plugg utgang (han) Minijack 3,5mm
