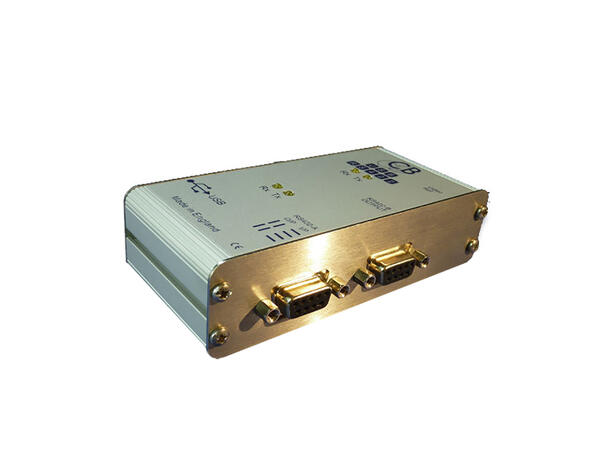

Colin Broad USB-422 Dual RS-422 USB Interface

Dual RS-422 USB Interface, AVID APPROVED, for DAW's including Avid, Pyramix

Features:

• Two RS422 ports, Connections to Standard Sony RS-422 pin-out
• Port A may be configured as a Controller (O/P) or Device (I/P) using internal links
• Port B is configured as a Controller (O/P)
• Windows 10, 7, 98, ME, 2000 and XP Drivers
• MAC OS-X Driver
• Linux Driver
• Optional Tri/Bi Level Video Sync Reference input
• Parallel I/O port with Video Sync option
• Tx and Rx LED’s on both ports
• Slew Rate Limited RS422 drivers to minimise EMI and reduce reflections
• Sample Windows Program on website
• Rugged extruded aluminum box
• WEEE/RoHS Compliant

Description

CB Electronics have for a number of years used USB-RS232 interfaces both with and without RS232-RS422 converters. In designing the USB422 we used the experience with many different manufactures to choose the best combination of hardware and drivers.

A test programme that provides both machine control and a virtual machine is available from our web site. The program locks both the virtual machine (Port-A) and machine control (Port-B) to video syncs.
