Caymon open frame 19" Rack, for vegg
- In depth adjustable
- Stores up to 3 units of 19” Equipment
- Punched square holes for use with snap-in cage nuts
- Loading capacity of 100 Kg
- 2.5 mm thick cold rolled steel frame
- Easy assembly in 10 minutes
- Floor standing & wall mounted use
- Unrestricted air flow due to open-frame design
- Stand alone & in-furniture integration
- Ships as flat-down package

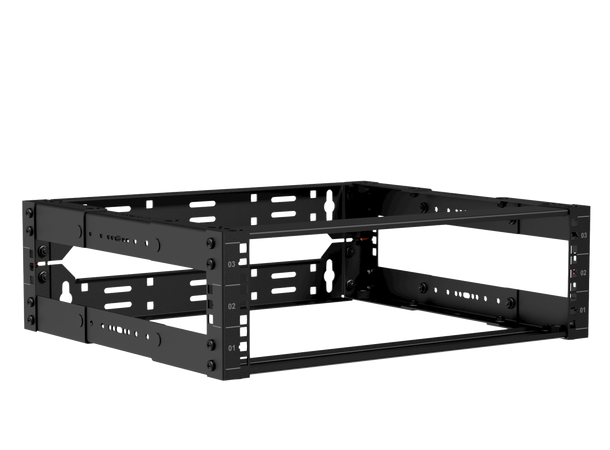

The OPR303A is an in depth adjustable professional and solid constructed open-frame rack for 19” equipment compliant to ANSI/EIA RS-310D, DIN41491 and IEC60297 standards which is suitable for wall mounted or floor standing installation. It ensures maximum installation, connectivity and maintenance ease storing up to 3 units of 19” equipment.
The open-frame rack has an adjustable depth of 300 to 450 mm for easy installation and fitment in existing furniture. The rugged construction made of 2 mm thick steel allows pre-loading of the equipment before transportation to the installation site. Finishing is done in a black (RAL9004) powder coating with fine structure while punched equipment mounting profiles on front and both sides offer a multifunctional use of the cabinet. Delivered in a flat-down package, the simple structure allows assembly by a single person in a record-breaking time.
Product Features
- Unit height 3 HE
- Max. usable depth 300 ~ 450 mm
- Max. load standing 100 kg
- Max. load hanging 50 kg
- Dimensions 520 x 158 x 300~450 mm (W x H x D) (excl. rubber feet)
- Colours Black (RAL9004)
- Accessories Included 4 x Leveling feet
- 4 x M8 expanding wall bolt
- 24 x Cage nuts + screws
