Burl Audio BAD8 AD opsjonskort for B80 og B16

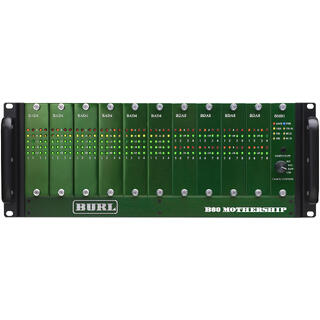

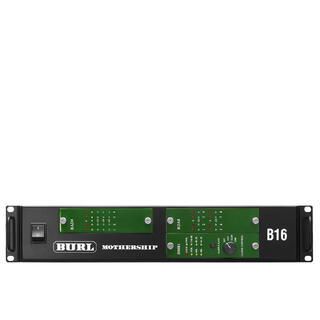

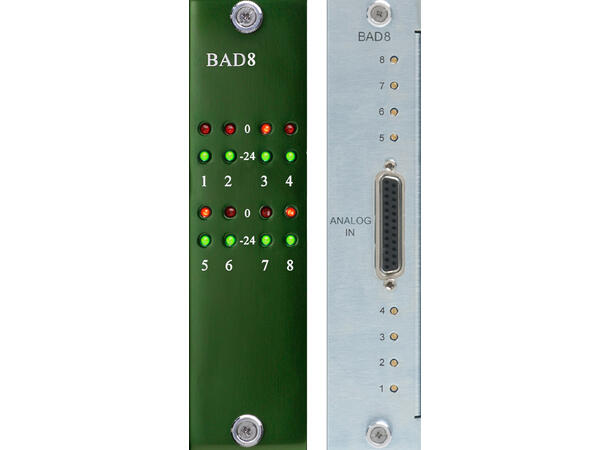

The BAD8, 8-channel analog-to-digital daughter card for the B80 and B16
MOTHERSHIP is the result of over 25 years of R&D A/D design
experience. Following on the overwhelming success of the B2 BOMBER ADC
and the BAD4, the BAD8 employs a next generation analog circuit path and
the latest in analog to digital conversion. This is a no compromise
design utilizing all class-A, discrete transistor circuitry and the
legendary BX1 transformer coupled input. The BAD8 benefits from the new
form factor of the BX1 transformer, allowing for more channel density.
The BAD8 also boasts the latest analog-to-digital conversion technology
giving it great tone with even greater detail and amazing low latency.
BAD8 Features:
• 44.1k Hz to 192k Hz, 24 bit, 8 channel ADC
• Proprietary, high definition, BURL AUDIO BX1 transformer input
• Next generation, all class-A, discrete transistor signal path with zero feedback, zero circuit path capacitors
• Next generation AD conversion
• Low latency
• 8-channel DSUB connectivity
