A Timecode Reader, Distributor, Reshaper, Analyzer and Optional Generator

Used extensively in live applications, the SR line has become a standard for show control.

The SR-112 reshapes and distributes timecode through its 12 outputs, sending it over long lines with no signal degradation. It analyzes the source for quick diagnostic and generates or repairs timecode, locked to video if required.

1 x 12 DISTRIBUTOR / RESHAPER

• Designed to send clean time code over long cables
• Eliminates level fluctuations
• Buffered outputs; balanced or unbalanced

TIME CODE ANALYZER

• Identifies time code format, reports errors (drop outs…)
• Monitors video phase
• Generates a comprehensive report via Ethernet

TIME CODE GENERATOR (option)

• Generates new time code with or without video reference
• Repairs faulty time code (jam sync)

The industry standard SR-112 is designed to distribute time code through its 12 buffered outputs while analyzing it. The reshaper sends clean time code, even over long cables, making it ideal for live environments.

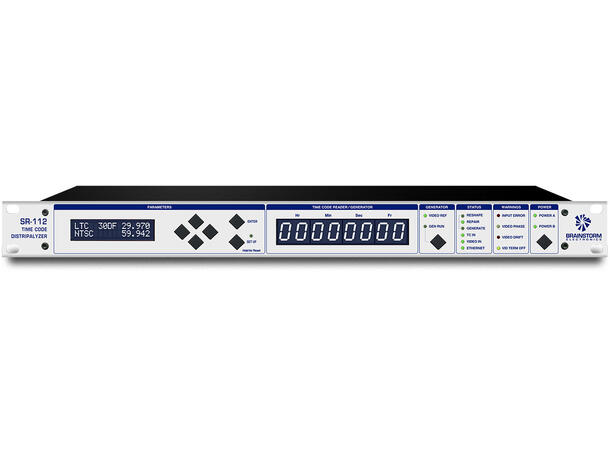

The front panel includes a large 8 digit reader and an LCD display showing the units status and reporting errors as they are detected. All modern SMPTE and EBU SD/HD rates are supported.

With the option TCG, the SR-112 can also generate new time code or repair exisitng one.
