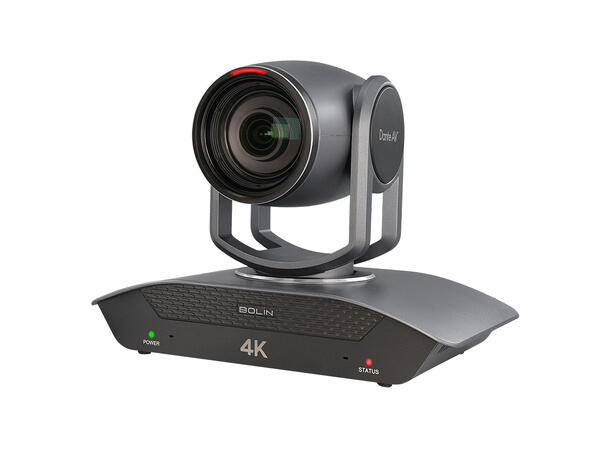

Bolin Technology D220

Unicast and Multicast for Video Display Routing

Point to Multipoint and Point to Point Distribution – supports both unicast and multicast video distribution. Paired with Dante AV Ultra decoder, using familiar Dante Controller software, the decoder can quickly and easily switch between multiple DanteAV camera endpoints on the network, with no need for breakouts or matrix switches to unicast or multicast display the video on any number of screens and video router system to use.

Dante Controller Supported

Full setup and control and monitoring of the device is enabled through Dante Controller that delivers standard Dante features such as automatic device discovery and system configuration, making network setup a simple plug and play experience.
Video Output
Deliver IP streaming video to Dante network and local HDMI 2.0 video output to conventional workflow in 4K60 or FHD.

Video Settings

Image parameter adjustments includes exposure, focus, iris, shutter speed, white balance, gamma, wide dynamic range, image stabilizer, flip/mirror and more with configurable video settings.

Audio

HDMI embedded high-quality audio and DanteAV video streaming embedded audio with support for mic and line-in audio input.

PTZ Movement

Extremely quiet and smooth operation for Pan/Tilt movements combined with enhanced adaptive, variable, and super slow speed control provides accurate and effective operation experiences. Picture Profile Preset- Image parameter setting restore with presets and quick access operation.

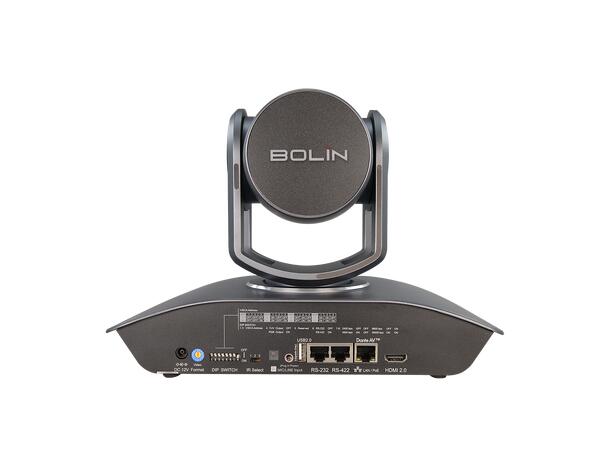

Two Ethernet Ports and POE

The D412/D220 Dante AV Ultra PTZ camera includes two RJ-45 1000BASE-T ports can be used to transport video over a Gigabit Ethernet network. Ports 1 for Dante network primary connection and Port 2 can be used to daisy-chain other endpoints. Port 1 is also capable of receiving power via POE++.

Ease of Installation and Use

Simply connect one network cable from camera to any 1GB Ethernet network/POE device to access to existing Dante Audio-Over-IP system.

Always Up To Date

Firmware updates, upgrade via Bolin Dante AV software IP interface to keep the decoder features and performance up to date.
