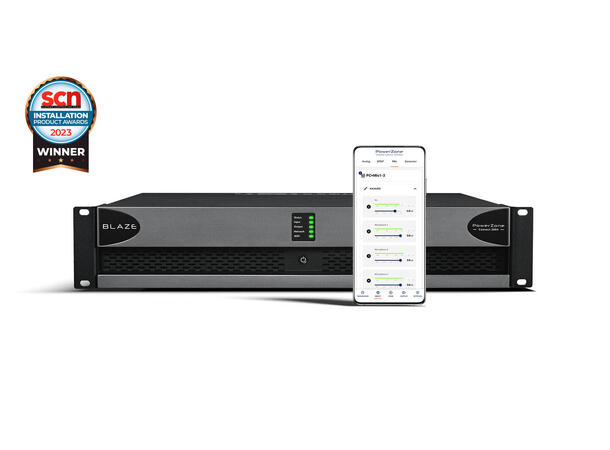

Blaze Audio PowerZone Connect 2004

The PowerZone Connect 1002, 1502, 2004 & 3004 are solid, DSP amplifiers that deliver flexible, reliable power output with total system power offerings of 1000W, 1500W, 2000W and 3000W in a full rack, 2U format.

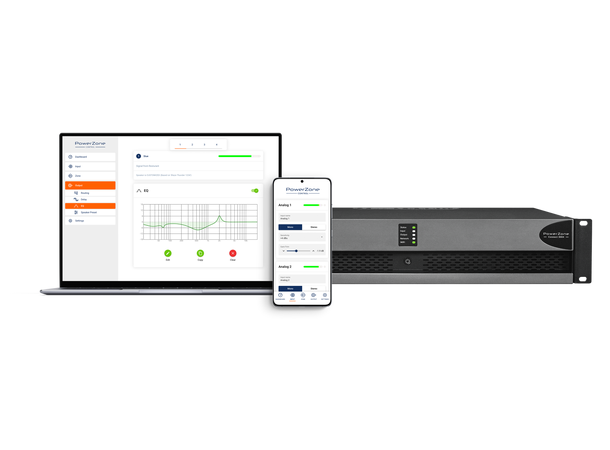

The system set-up can be performed wired or wirelessly and allows access to the PowerZone Control web app for easy system and audio configuration; manage sound zones, inputs/outputs, firmware updates, import of speaker presets and access to professional EQ settings. Configuration takes only a few minutes and can even be set up from your phone’s browser.

Route any input to any output channel - create sound Zones in minutes
Powered by Pascal UMAC™ Class-D technology



Product Details
The PowerZone Connect 2004 is a solid, reliable, full rack, DSP amplifier with network connection for easy configuration and control. Its network can be wired or wireless and allows access to the PowerZone Control web app’s system setup and audio configuration menu. From here you can manage sound zones, inputs/outputs, update firmware, import speaker pre-sets and access many professional EQ settings – configuration takes only a few minutes and can even be set up from your phone’s browser.

Total System Power 2000W
Channels 4 x lo-Z / 2 x Hi-Z
Output Power @ 2O 4 x 500 W (SE)*
Output Power @ 4O 4 x 500W(SE) or 2 x 1000 W (BTL)**
Output Power @ 8O 4 x 250W(SE) or 2 x 1000 W (BTL)
Output Power @ 70V 2 x 1000 W (BTL)
Output Power @ 100V 2 x 1000 W (BTL)
*SE – conventional, single ended output mode ?
**BTL – bridge-tied load output mode
