MAGIC THipPro 8 x VoIP Telefonhybrid PURE versjon uten analog/AES EBU. Legg til Dante eller Ravenna kort.

8 kanals versjon i 16 kanals hardware (med ekko cancel modul og 16 line module oppgradert)

Telephone Hybrids convert an incoming call into an Audio signal for the studio environment. The line echoes on analogue telephone interfaces which result from the 2-wire technology used are disturbing and must be eliminated by line echo cancellers.

• Digital Echo Canceller, AGC and Expander for each caller line
• Conference function with N-1 generation
• PRETALK with multiple Screening-functions
• Up to twenty MAGIC THipPro LAN and Screener Software workplaces
• MAGIC THipPro Admin Upgrade to share the resources between up to six studios
• Support of Ember+ and DHD SetLogic IDs
• Dante/AES67 upgrade for additional audio lines
• Integration of high-quality audio transmission

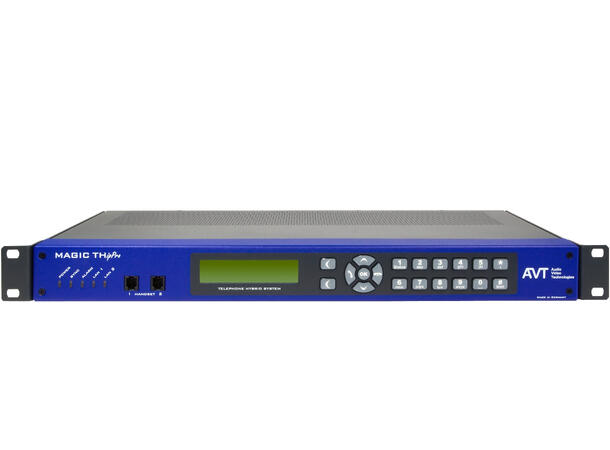

The MAGIC THipPro is the most flexible and functional Talkshow System in our portfolio. The system is available with 8 or 16 VoIP lines. Optionally, POTS or ISDN modules can be integrated, providing a maximum of 8 POTS interfaces for connection to analogue telephone lines or a maximum of 16 ISDN channels. A special feature of the MAGIC THipPro is the so-called Mixed Mode in which the system can be operated with POTS or ISDN lines and simultaneously with VoIP lines.

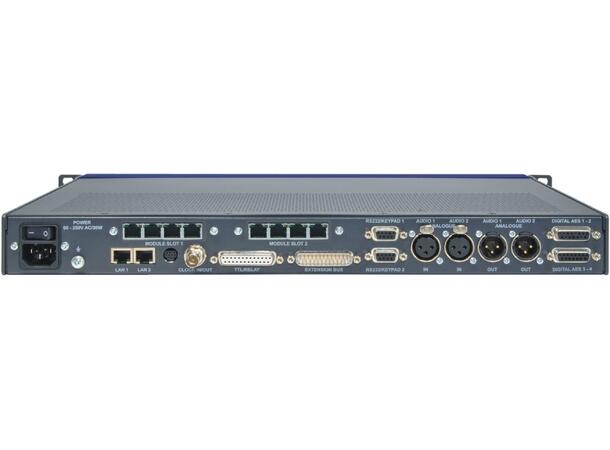

MAGIC THipPro provides two analogue and eight digital Audio inputs and outputs plus two handset/headset interfaces. Optionally, the AES67 upgrade allows the use of eight additional audio channels (8 x RX (2 streams) and 8 x TX (1 stream)) via IP. Alternatively, a Ravenna or Dante module is also available. The Audio interfaces can be assigned freely to the up to 20 installed workplaces and 6 studios.

Functions

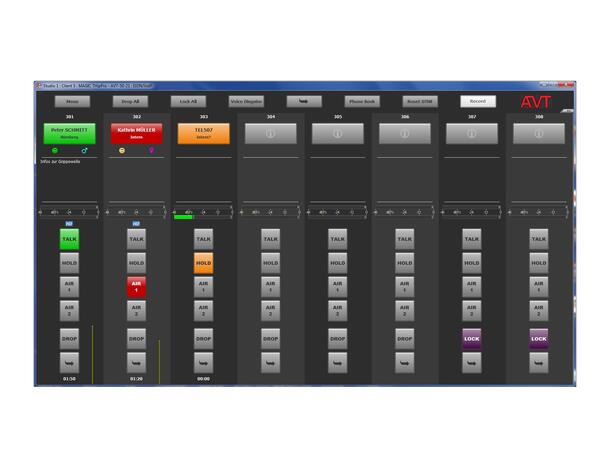

MAGIC THipPro can be connected to an MS SQL database Server. Different studios can use the same or individual databases for call screening. Of course, a blacklist function is also available. All features such as e.g. Auto Answer, call forwarding, Voice Disguise, Night Service and caller preselection are supported. As a special feature the answering machine functionality has been implemented – callers can be accepted automatically in HOLD, hear a pre-recorded message and are dropped afterwards, alternatively callers can also be recorded.

MAGIC THipPro Pure

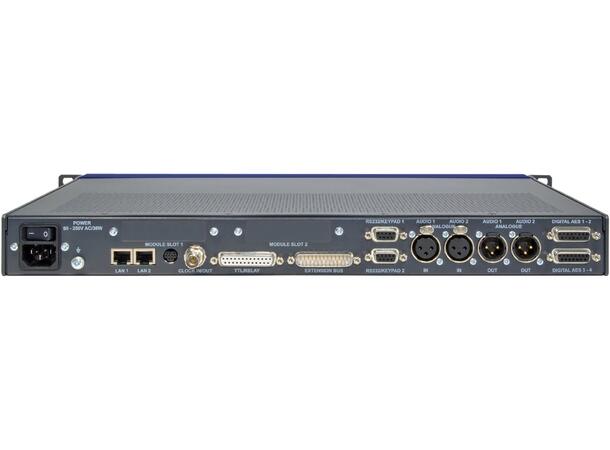

For users who no longer require classic audio interfaces, the MAGIC THipPro Pure variant will also be available from summer 2022. The optional AES67 software upgrade or the Dante or Ravenna module will be used for audio connection.
