MAGIC MAGIC ACX Dante™ WAN Bridge
The multi-channel PCM system MAGIC ACX Dante™ WAN Bridge enables the transmission of up to 32 uncompressed audio signals via wide area networks (WAN).
The audio connection for the audio inputs/outputs is provided by the integrated 32-channel Dante™ interface, which has redundant GbE interfaces and of course also supports AES67.
The comfortable operating software allows the management of up to 10 systems including graphic surveillance and can be operated from up to 5 workplaces simultaneously.

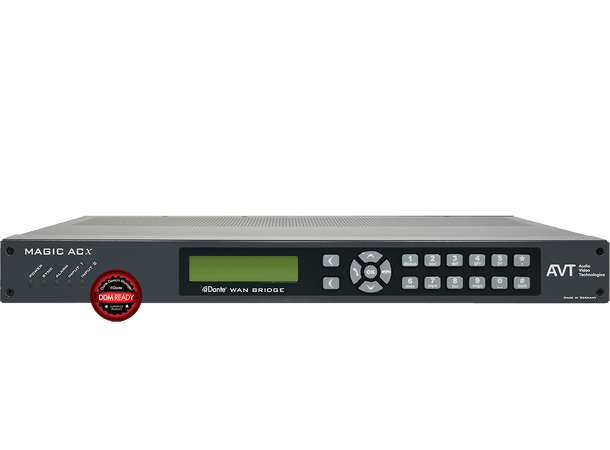

The front display of the system also shows essential information on the status of the transmission.
Functions
The coding is done via PCM16 / PCM24.
Since the limited maximum latency of Dante in wide area networks, high jitter and possible clock differences between sender and receiver prevent a reliable transmission, the MAGIC ACX Dante™ Wan Bridge solves these problems with a jitter buffer including automatic mode and intelligent sample rate adaption (SRA).
32 audio channels via Dante™
AES67 compatible
PCM16 / PCM24
48 kHz Sampling frequency
Automatic Sampling Rate Adaptation
Jitter buffer up to 500 ms
Audio signal detection

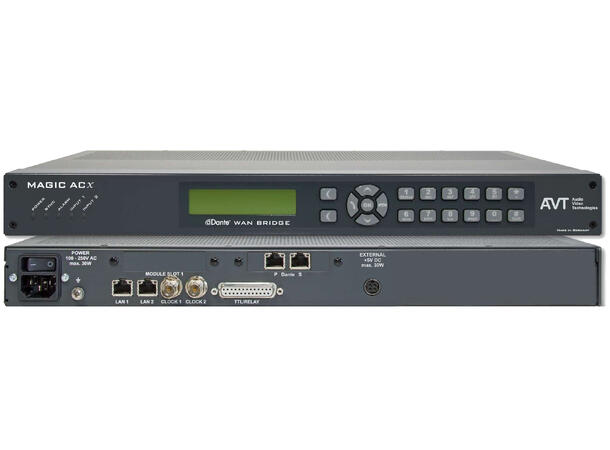

2 x 100 Mbit/s Ethernet
8 x TTL GPIO / 8 x Relay
VLAN/QoS-support
SNMP v1, v2c
System internal log file
Optional redundant power supply
Comfortable Windows management software
