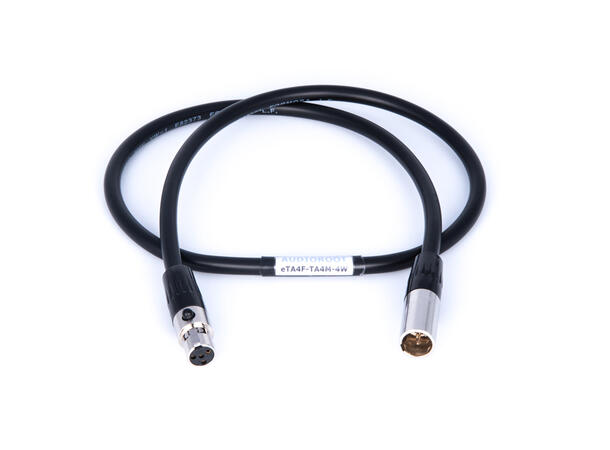

4 conductors TA4M to TA4F power + battery telemetry output cable.

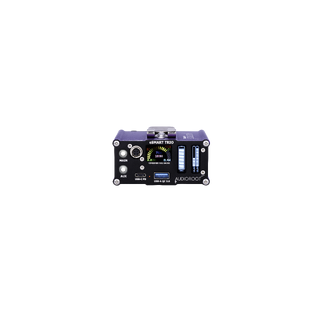

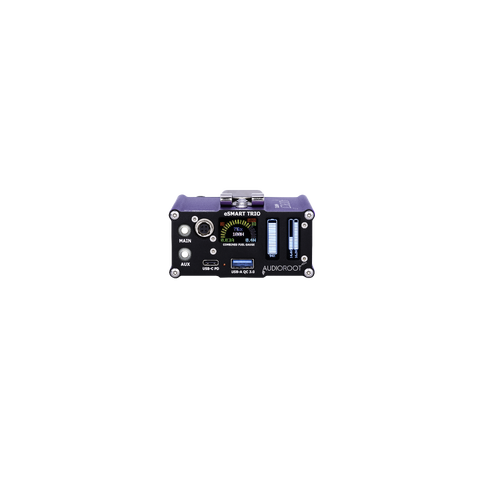

This cable can be used to connect a SD8xx series recorder to the TA4F output of the eSMART TRIO
TA4F/TA4M pinout :
- BATT (-)
- SMBus data
- SMBus clock
- BATT(+)
- 60 cm long cable (other lenghts on request)
- TA4M connector on one end
- TA4F connector on the other end
- 2C/26AWG (GREEN/WHITE) + 2C/18AWG (BLACK/RED) 4 conductor cable (PVC insulation and jacket)
