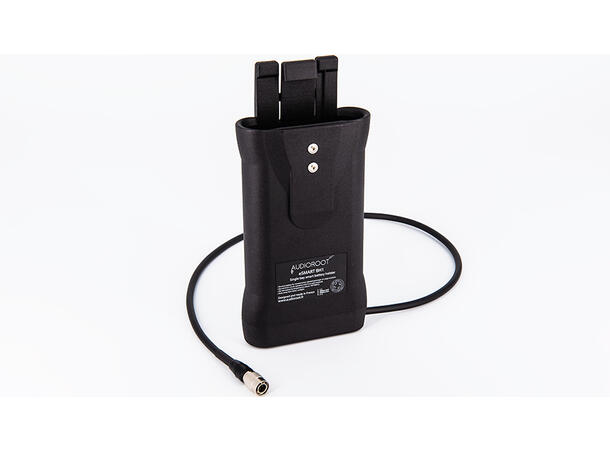

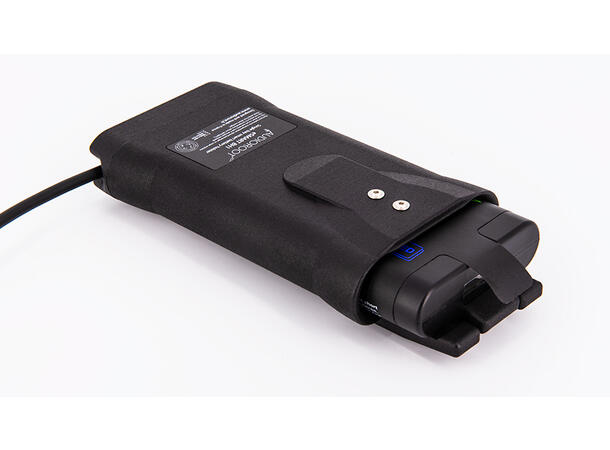

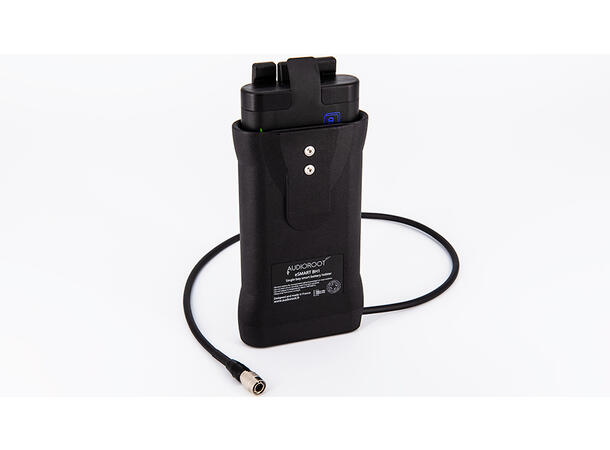

- battery slot with spring loaded locking mechanism for easy single hand removal

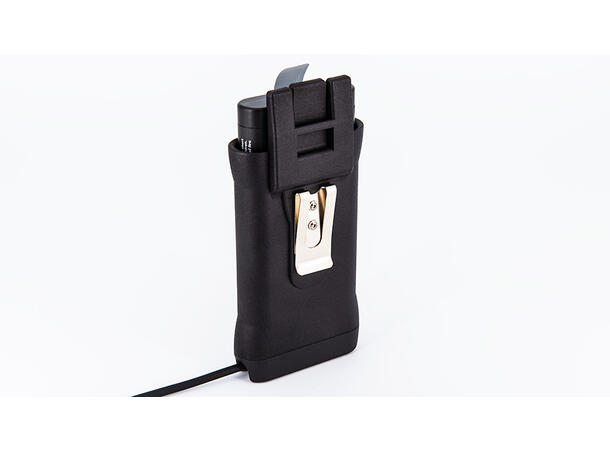

- belt/bag clip which can be mounted on both sides

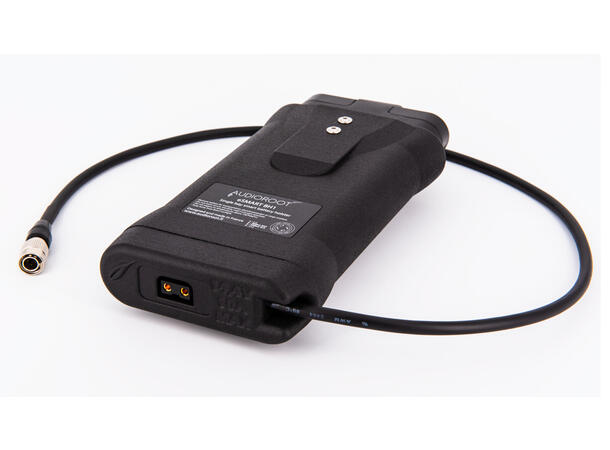

- 1 x D-TAP output
- 1 x lead output 4 conductors smBUS cable
- Compatible with 4S2P style (long) batteries such as the eSMART Li-96neo and Li-98Wh.
The BH1 is available with different connectors
- BH1-H : 4 pin Hirose compatible connector (default)
- BH1-T : 4 pin Switchcraft female connector
- BH1-X : 4 pin Neutrik XLR female connector
Default cable length is 60cm. Other lengths are available on request .
Custom ordering code BH1-X-XXX where XXX is the cable length in cm from 20 to 150cm.
Default reference is BH1-H-060 with Hirose output connector and 60cm cable length.
Weight (emtpy) : 200g
Weight (with battery) : 640g
Dimensions : 192x90x41mm
Battery not included
