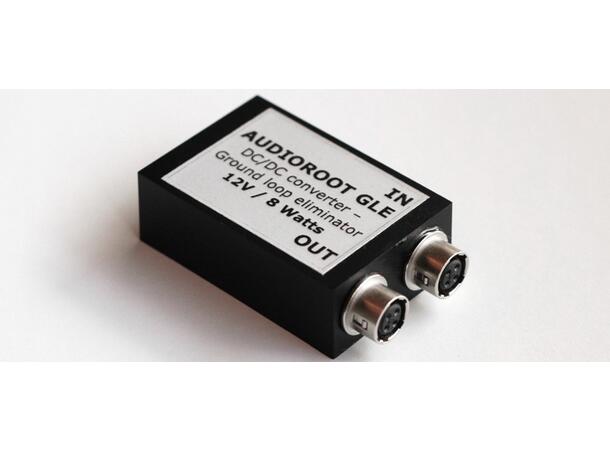

Isolated DC/DC converter. Ideal for 12V regulation and ground loops removal. Input and output on industry standard Hirose 4 pin connectors.
- Input voltage range : 9 – 18V
- Output current (max) : 1000mA
- Typical effiency : 86%
- Isolation voltage : 1000 VDC
- Switching frequency : 400 Khz
- Input current (no load) : 20 mA
- Input current (full load) : 1250 mA
