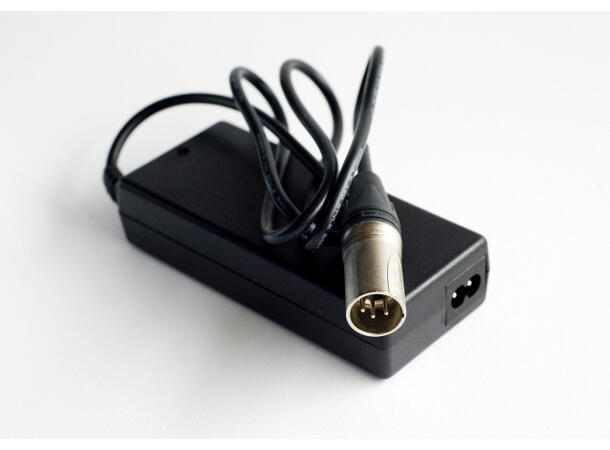

eLC-PO4

4A 12.8V LiFePo4 charger

This Smart Charger is designed to charge 12.8V(4 Cells) LiFePO4 batteries with a capacity > 4Ah. It features a three stages charging method ( Constant Current, Constant Voltage , Trickle charge mode) without overcharging the battery . An XLR4 male connector is fitted to mate directly with our LiFePo4 batteries. An Internal Resettable fuse is installed inside the charger : there is no need to change the fuse after en over-load current cut-off.

This charger is fully compatible with our LiFePo4 battery range : eSMART LiFe-115Wh , LiFe-256Wh and LiFe-512Wh

For charging the eSMART LiFe-512Wh battery we recommend using our eLC-PO10 10A charger.

Specifications :

• AC input voltage 90 to 240 VAC Worldwide power support
• Input frequency 50/60Hz
• Input Current Max 1.5A

• The Battery range is between 4AH to 20AH
• Max. charging current: 4A

• 15V 4.0A
• XLR4M output connect

• Red LED = Charging (0-99%)
• Green LED = Fully charged (100%)

Weight: 320grams ( 11.2 Oz)
