eLC-PO10-S

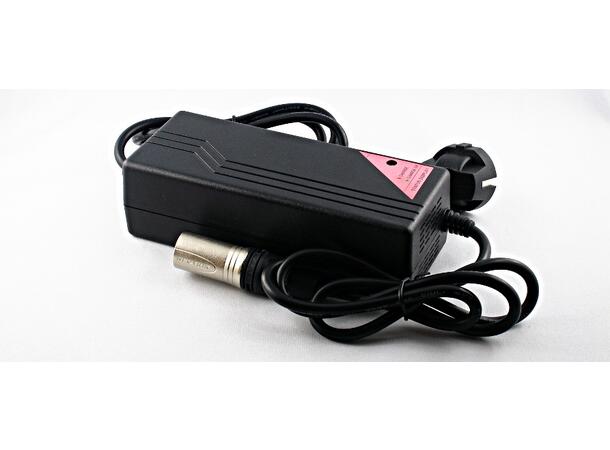

10A 12.8V LiFePo4 charger
This Smart Charger is designed to charge 12.8V(4 Cells) LiFePO4 batteries with a capacity >= 20Ah. It features a three stages charging method (Constant Current, Constant Voltage, Trickle charge mode) without overcharging the battery. An XLR4 male connector is fitted to mate directly with our LiFePo4 batteries. An internal resettable fuse is installed inside the charger : there is no need to change the fuse after en over-load current cut-off. This charging unit is actively cooled with a small fan that is integrated in the charger’s enclosure.
This charger is fully compatible with our eSMART LiFe-256Wh and eSMART LiFe-576Wh batteries.
Because of the hgh charging current we do not recommend use of this charger with our lower capacity LiFePo4 battery eSMART LiFe-115Wh
Specifications :
INPUT
- AC input voltage 90 to 240 VAC Worldwide power support
- Input frequency 50/60Hz
- Input Current Max 3.0A
CHARGE
- The Battery range is > 20Ah
- Max. charging current: 10A
OUTPUT
- 14.6V 4.0A
- XLR4M output connect
LED indicator
- Red LED = Charging (0-99%)
- Green LED = Fully charged (100%)
Weight: 460grams
