Audac CALI660 Toveis takhøyttaler Hvit 64W 8ohm/100V m/kab

Audac CALI660 Toveis

takhøyttaler Hvit 64W 8ohm/100V m/kab

Varenr: 122745
-+
Bestillingsvare (19 dager)
BeskrivelseTeknisk infoRESSURSER
Beskrivelse

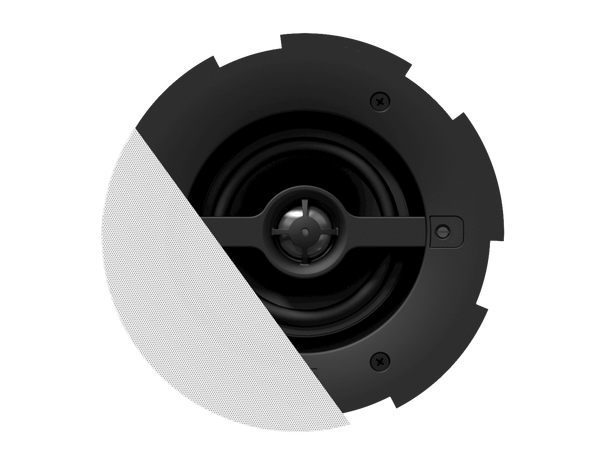

Audac CALI660



The CALI660 is a 2-way ceiling speaker with rear dome, constructed using a 6.5” cone driver, combined with an coaxially mounted 1” soft dome tweeter which is fitted with a phase plug for excellent off axis performance.

The 2-way construction combination with metal rear-dome guarantees premium performance for demanding applications. A continuous power handling of 64 Watt (RMS) and maximum power handling of 128 watt is achieved, while fitted with a rotary switch for tapping of the 100V line transformer with tappings for 64W, 32W, 16W and an 8 Ohm bypass connection.



System specifications



  • Max. Power 120 W
  • RMS Power 60 W
  • Sound Pressure (Max. W/1m) @ 100 V 106 dB
  • Sensitivity (1W/1m) 88 dB
  • Frequency Response (± 3 dB) 65 Hz - 20 kHz
  • Line Transformer Tappings 1 60 W / 167
  • 2 30 W / 333
  • 3 15 W / 667
  • Product Features
  • Cut-out measurement 220 mm (Ø)
  • Dimensions 242 x 120 mm (Ø x D)
  • Built-in depth 120 mm



Teknisk info

  • Max. Power 60 W
  • RMS Power 30 W
  • Sensitivity (1W/1m) 87 dB
  • Speaker type 2-way coaxial
  • Impedance 16 (CIRA530D) 8 (CIRA506 & CIRA524)
  • Connectors Multi-tap Fast-con™ connections
  • Sound Pressure (Max. W/1m) @ 100 V 102 dB
  • Frequency Response (± 3 dB) 60 Hz - 20 kHz
  • Range (-10 dB) 45 Hz - 20 kHz
  • Dispersion Conical 145°
  • Drivers LF 5 ¼" Woofer
  • HF 1”
  • Line Transformer Tappings 1 6 W - 1667 (CIRA506)
  • 24 W - 417 (CIRA524)
  • 2 3 W - 3333 (CIRA506)
  • 12 W - 833 (CIRA524)
  • 3 1.5 W - 6667 (CIRA506)
  • 6 W - 1667 (CIRA524)



PRODUCT FEATURES



  • Cut-out measurement 170 mm (Ø)
  • Dimensions 193 x 83 mm (Ø x D)
  • Weight 1.10 kg (CIRA506)
  • 1.15 kg (CIRA524)
  • 1.05 kg (CIRA530D)
  • Construction ABS
  • Front finish Twist-Fix™ Borderless finely perforated steel grill
  • Mounting Quick-Fit™ mounting system
  • Colours White (RAL9003) (CIRA506/W, CIRA524/W & CIRA530D/W)
  • Built-in depth 83 mm (CIRA524)
  • 75 mm (CIRA506 & CIRA530D)
  • Dimensions 193 mm (Ø)
Teknisk info

Produktinformasjon

- Tilkoblinger (Pluggtype HW) Euroblock / Phoenix / Terminal block
