ATC Remote Multi Amp 5U Rack Kit

25/45/50/100/110/150 - (NYE SYSTEMER)

Varenr: Amp Rack x2
-+
Bestillingsvare (42 dager)
BeskrivelseRESSURSER
Beskrivelse

ATC Amp Packs (2 kanaler)

SCM25/45 Amplifier Remote Mounting Dual SCM25/45

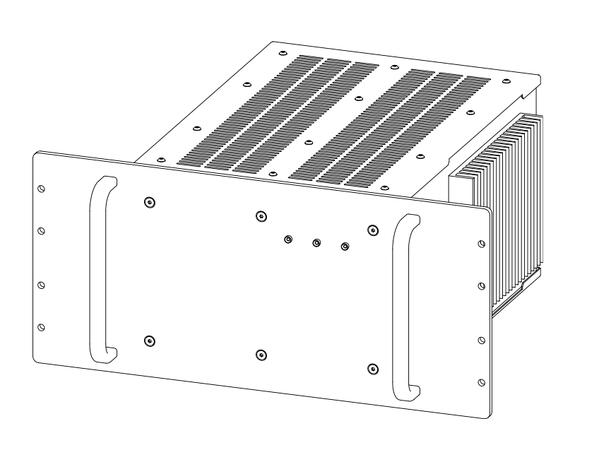

Rack Mount Amp Triple SCM25/45 Rack Mount Amp A 2-channel (stereo) and 3-channel (triple/LCR) 5U 19” rack mount amplifier is available for the amp employed in the SCM25A Pro and SCM45A Pro.  There is no solution for mounting a single amplifier.  The chassis dimensions are identical for both versions and the products are differentiated by their rear panels and weight. Balanced inputs are via three pin female chassis mount XLRs.  Speaker level outputs are via Neutrik SpeakON NL8 chassis connectors.  Connections to the cabinet mounted off/on/limit LED are via female five pin chassis mount XLRs.  All connectors are on the rear panel. This product is factory build only.  It can’t be used to retro-fit to existing amplifiers in the field. Full product details are available on the technical datasheet



SCM50/100/110/150ASL Pro Amp Pack Rack Kit

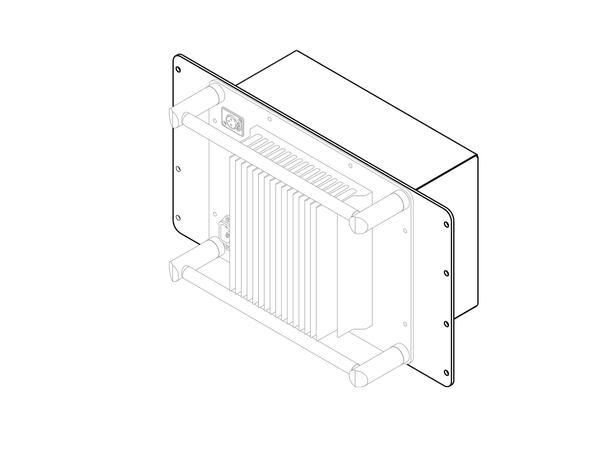

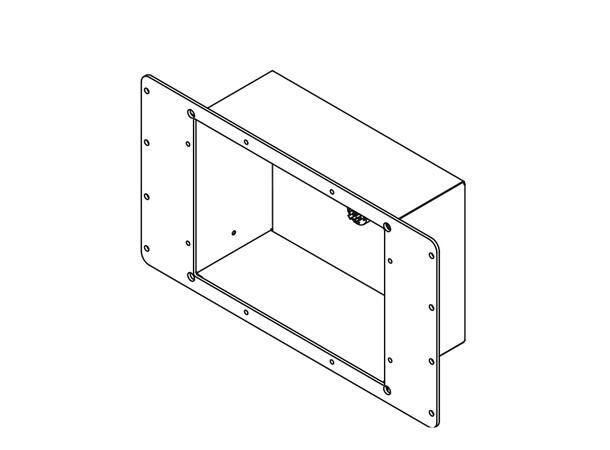

A single channel 6U 19” rack-mount kit is available for the amp employed in the SCM50/100/110/150.  The kit consists of a 19” rack plate, amp enclosure and amp-to-enclosure wiring loom (illustrated right) that can be mounted to the standard amp pack, facilitating rack mounting.  The Amp Pack Rack Kit is available as two options:

• As a kit to retro-fit to an existing amp in the field.

• Factory built, with amplifier as part of a new active loudspeaker system (below-left).

Balanced input is via three pin XLR.  Mains power supply via IEC connector.  Both the audio input and mains power are front panel mounted.  Speaker level output is via a Neutrik SpeakON NL8 chassis connector.  Connections to the cabinet mounted off/on/limit LED is via a five pin female chassis mount XLR.  Both connections are mounted on the amp enclosure at the rear.  Front face heatsink mounting allows in wall mounting in closest proximity to loudspeaker location, reducing loudspeaker cable lengths. Full technical product details are available on the technical datasheet.



Dual Amp Pack Rack Mount Amp
A two channel (stereo) 5U 19” rack mount amplifier is available for the amp employed in the SCM50/100/110/150. There is no solution for mounting a single amplifier in this chassis format. Balanced inputs are via three pin XLRs.  Speaker level outputs are via Neutrik SpeakON NL8 chassis connectors.  Connections to the cabinet mounted On/Off/Limit LEDs are via five pin female chassis mount XLRs.  All connectors are on the rear panel. This product is factory build only.  It can’t be used to retro-fit to existing amplifiers in the field. Full product details are available on the technical datasheet.




Sub Amp Rack Kit

A single channel 7U 19” rack-mount kit is available for the amp employed in the SCM0.1/12 and SCM0.1/15 active subwoofers.  The kit consists of a 19” rack plate, amp enclosure and amp-to-enclosure wiring loom that can be mounted to the standard subwoofer amp pack, facilitating rack mounting. The single channel rack mount kit is available as two options:

• As a kit to retro-fit to an existing amp in the field (as illustrated right).

• Ready assembled, with amplifier, as a new factory-build for ATC active subwoofers (as illustrated below).


Stereo balanced inputs are via three pin XLRs (inputs sum to mono).  Mains power supply is made via IEC connector.  Both the audio input and mains power are front panel mounted. Speaker level output is via rear mounted Neutrik SpeakON NL4 chassis connector. Front face heatsink mounting allows in-wall mounting in closest proximity to loudspeaker location, reducing loudspeaker cable lengths.
