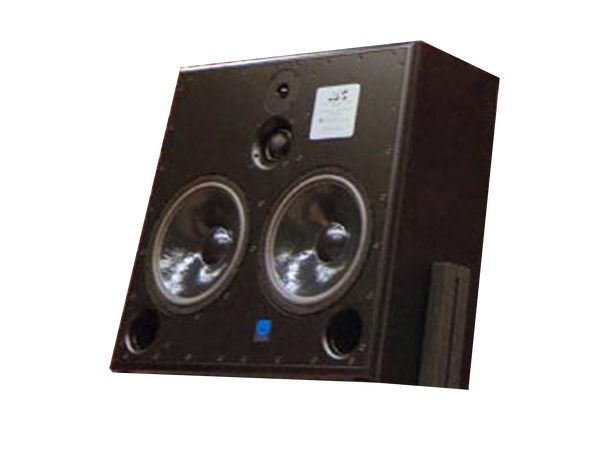

ATC SCM110A SL Pro 3veis studiomonitor
Full-Face Square Edge baffle for in-wall montering
Pris. pr. stk. Gir deg kvalitet, nøyaktighet og ytelse.
Requires remote amp hardware, NL8 speaker cable & 5-pin XLR
LED cable - sold seperately. Cable lengths must be specified
The ATV SCM110A
Pro is a compact, active 3-way monitor system suitable for larger rooms,
based around the same tweeter, midrange and amp configuration as the
SCM100ASL Pro, but using dual 9" bass drivers in a larger enclosure. The
low-profile SMC 110A comprises twin 9-inch ATC SL bass drivers, an ATC
3-inch soft dome mid and a soft dome one-inch tweeter. Maintaining the
strict performance criteria of the taller models of ATC reference
monitors, the SMC 110A offers a low profile specifically designed for
better sight lines through windows and below obstructions.
Unparalleled functionality and dynamic range, and a 80 x 10 degree
dispersion are combined in a monitor system that offers an amplitude
linearity of 50 Hz-20 kHz (2 dB). The active design matches six MOSFET
amplifier blocks with the drivers to deliver an excellent transient
response and a maximum SPL of 115dB. Amplifier output is 50 watts for
HF, 100 watts for MF and 200 watts for LF. An LF contour control
provides 6 dB of bass boost.
- ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.
- Twin full “SL” spec 9?/234mm bass driver.
- ATC 75mm “Super Dome” mid driver.
- On board ATC grounded source 350W Tri-amp pack.
- LF contour control.
- Clip indication.
- 6 year warranty.
Spesifikasjoner:
Drivers: HF 1?/25mm, Mid 3?/75mm, LF 2x 9?/234mm
Amplitude Linearity (±2dB): 50Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 30Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 115dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kO
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 715 x 625 x 420mm (28.2? x 24.5? x 16.5?) Depth with amplifier at rear adds 3?
Weight: 73kg
