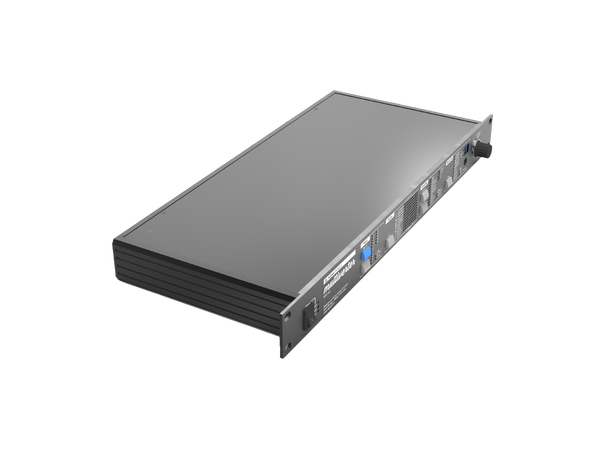

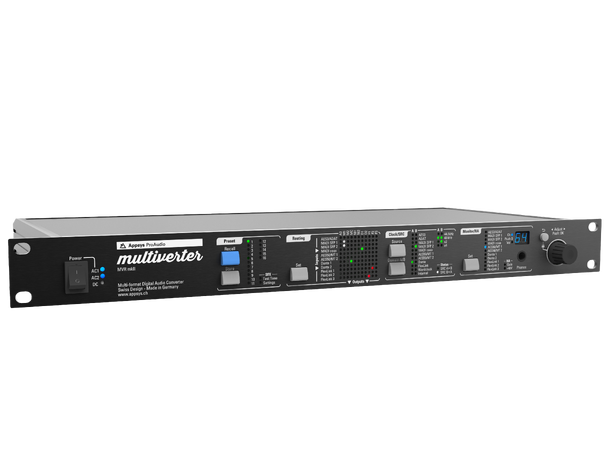

The evolution of world's most versatile format converter: MVR-mkII

For all your digital audio needs: This unique piece of hardware is able to convert between man different digital audio interfaces - any to any, all at once. It's fully packed with features like channel-wise-routing, web interface, sample rate conversion, headamp remote control and much more. And cool for MVR-64 (old model) users: All firmware features of the new model will also be back-ported as long as the hardware allows it!

• Interface your recording gear to any signal source
• Make your production truck or OB van compatible to any incoming signal and clock
• Sample-rate convert between any interfaces using the SRC-64 plugin module
• Dante<>Dante bridging of different networks with optional sample rate conversion (up to 64ch 96k <> 48k bidirectional*)
• Use your ethernet port as recording interface with the Dante® Virtual Soundcard technology
• Record from any source, and directly from MIDAS®/Behringer® stageboxes with remote headamp control
• Bring your legacy gear up to date
  * Additional FLX-DANTE / AUX-DANTE required

Key features

    704x704 channels routing matrix with channel-wise routing/splitting between interfaces
    Bi-directional sample rate conversion up to 128 channels using the  SRC-64 plug-in module
    Fully remote-controllable via Web, Web-over-USB and command line (telnet/UART)
    Headamp remote control for MIDAS®/Behringer® stageboxes (Sxx/DLxx/DLxxx)
    Integrated headphone amp to monitor any incoming signal

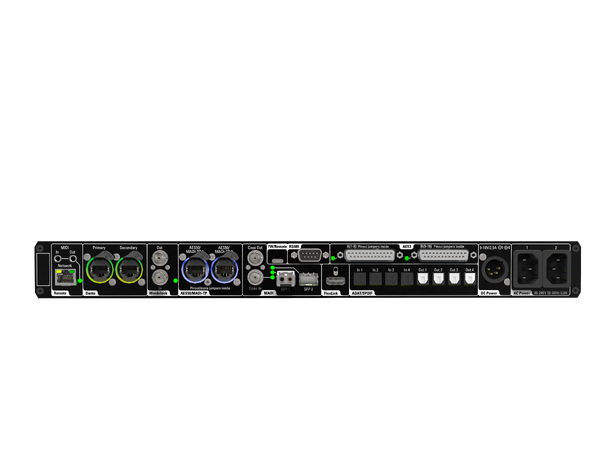

Audio Interfaces

    AES3 (16x16ch)
    ADAT (4x), SPDIF/AES3 optical
    MADI SFP (2x), supports  Ferrofish SFP Coax
    MADI coaxial
    AES50 (up to 2 ports)
    MADI-TP (up to 2 ports)
    Dante
    up to 192 extra channels via  Flexiverter breakout boxes connected to the FlexLink port

Clocking Options

    Supports 44.1...192 kHz operation
    ClockShield™ technology allows clickless operation during up to 1s clock dropouts
    Optional Sample Rate Conversion

Other things to mention

    Preset store/recall (16 different setups)
    Jumperable pinout for AES3 (Tascam/Yamaha) and AES50/MADI-TP ports
    Test tone generator simplifies troubleshooting of complex setups
    Triple-redundant power supply (2x 90-240VAC, 1x 9-18VDC)
    Can be powered alone from industry standard 4-pin XLR plug battery packs
    Separate network control port
    MIDI and RS485 embedding/de-embedding from MIDI/RS485 jacks into MADI streams (RME™/DirectOut™-compatible)
    Transparent forwarding of MADI control data (i.e. headamp control, MIDI over MADI)
