AES3 to anything. Anything to AES3

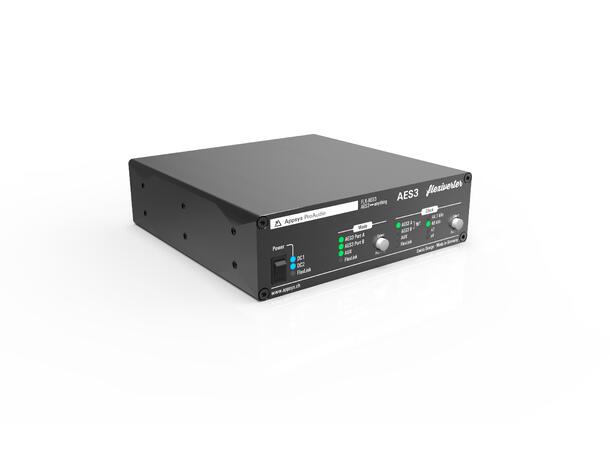

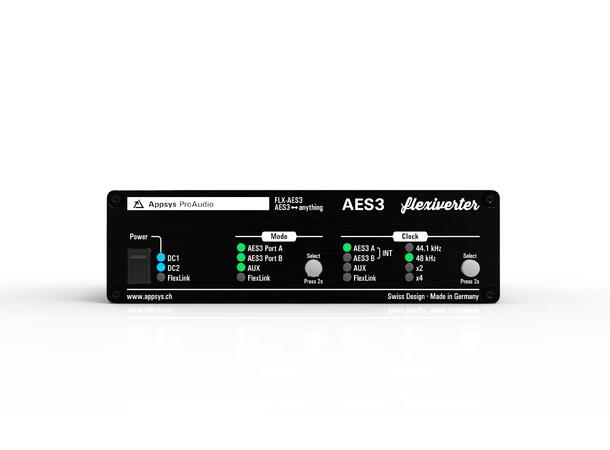

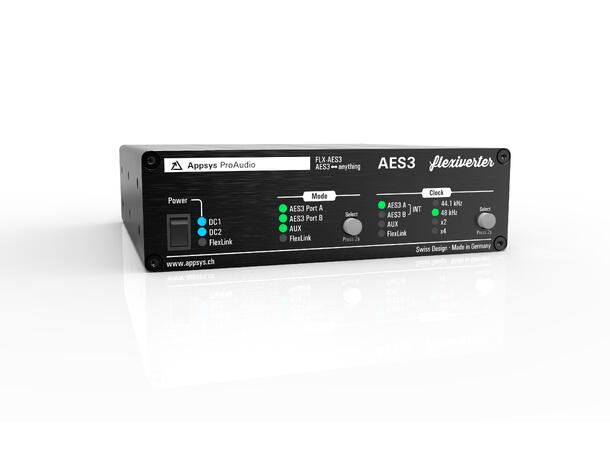

The FLX-AES3 is a compact AES3-to-anything converter. It has 16x16 channels of AES3 built in, which can be converted to any protocol installed into the AUX slot. For larger systems, the built-in channels plus everything which the AUX card provides are also available on the FlexLink port, making it possible to use it as extension to the MVR-64 or another Flexiverter.

Features

• 16x16 channels of AES/EBU, fully transformer isolated

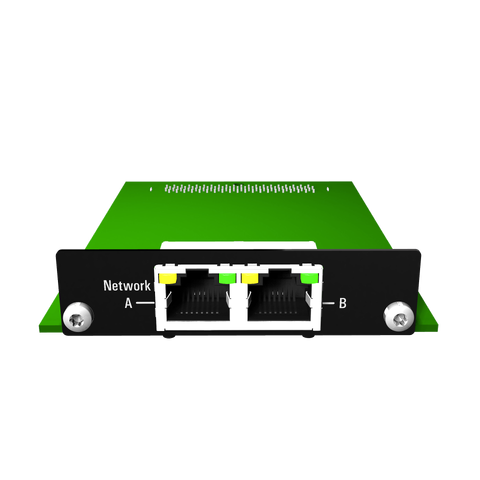

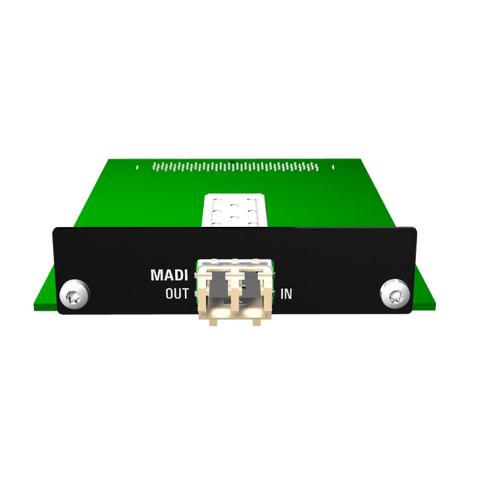

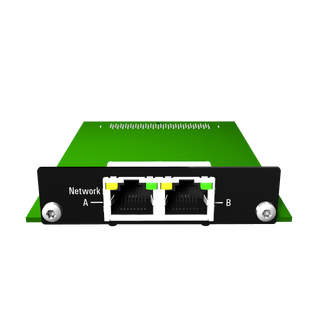

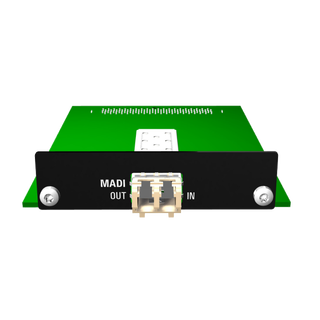

• AUX port accepting any of the AUX Cards as conversion source/destination
• Supports arbitrary sample rates in the range from 44.1...192kHz

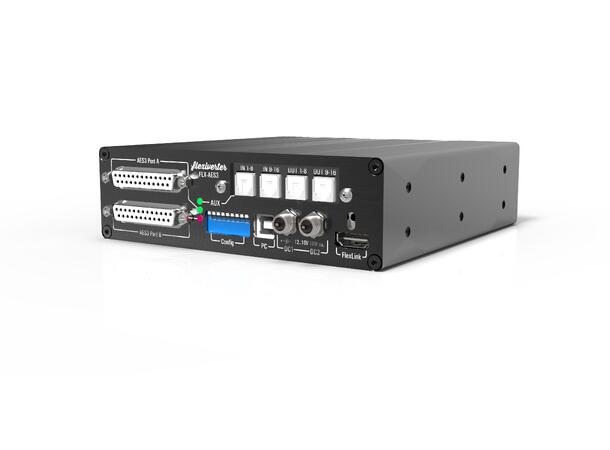

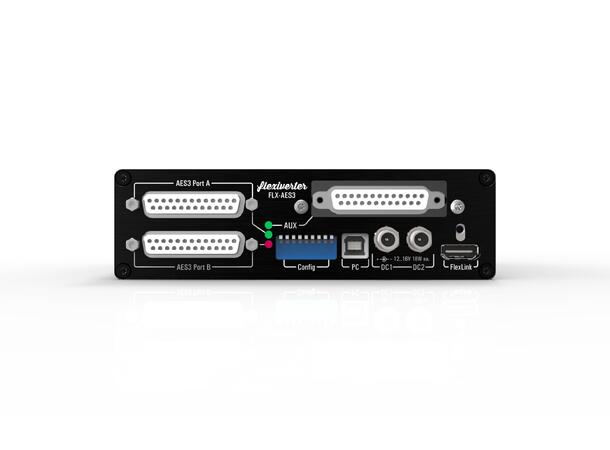

• DB25 connector pinout (Tascam or Yamaha) selectable individually for each connector via internal jumpers
• FlexLink port for lowest latency, bi-directional transfer of 192 channels audio, clock and power

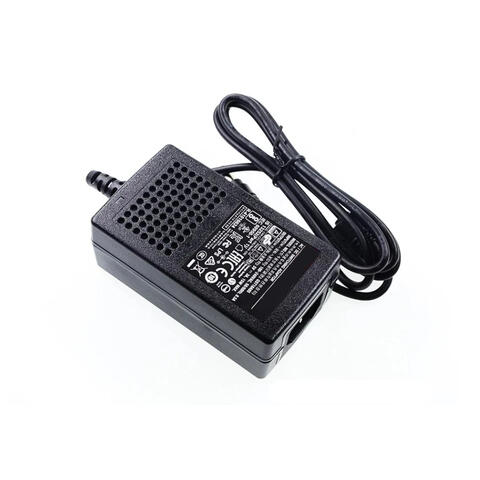

• Triple-redundant power supply
