Dante/Dante bridging with Sample Rate Conversion

Our Dante/Dante bridge consists of the FLX-DANTE/SRC module with built-in AUX-DANTE card. Two independent Dante modules allow physical network isolation, while all 64x64 channels of audio are passed both ways between the networks. The built-in, high-end, bidirectional Sample Rate Converter takes care of matching audio between the different master clocks and possibly different sample rates of both networks.

Features

• Two independent Dante modules built-in

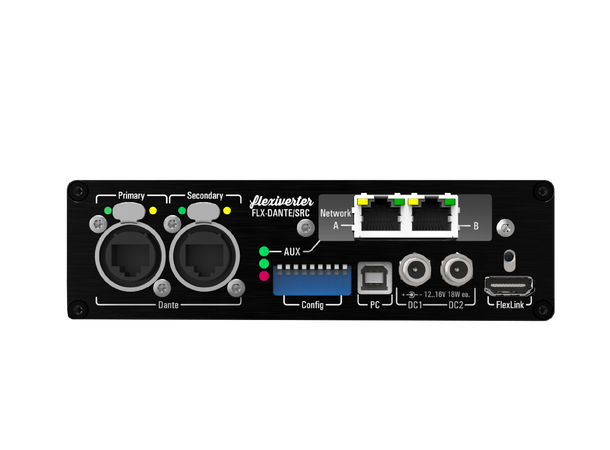

• 4x Dante ports (2x on each side). Each side can be configured as Switched or Redundant
• 64x64ch bi-directional Sample Rate Converter with top-notch specifications (THD+N:-134dB typ/-120dB max, 139dB DNR), can be bypassed when desired
• 64x64ch@48k, 32x32ch@96k, 16x16ch@192k.
• Need more channels?Just add an extra FLX-DANTE via FlexLink for 64x64ch@96k / 32x32ch@192k
• Supports sample rates from 44.1 to 192kHz (64x64@48k, 32x32@96k, 16x16@192k
• Remote control via USB: web remote (no software required), or UART command line
• Triple-redundant power supply
