Bidirectional ADAT/TOSLINK Extender Kit

The ADX-16 Kit has been designed to overcome the length limitations (5m/16 ft) of optical TOSLINK® interconnects running ADAT Lightpipe®, S/PDIF® and other protocols. The kit enables you to run two TOSLINK connections (one in each direction) over a single Cat5 cable and up to 100m / 330ft. in length, opening up a range of new possibilities (e.g. for audio distribution within a building).

Applications

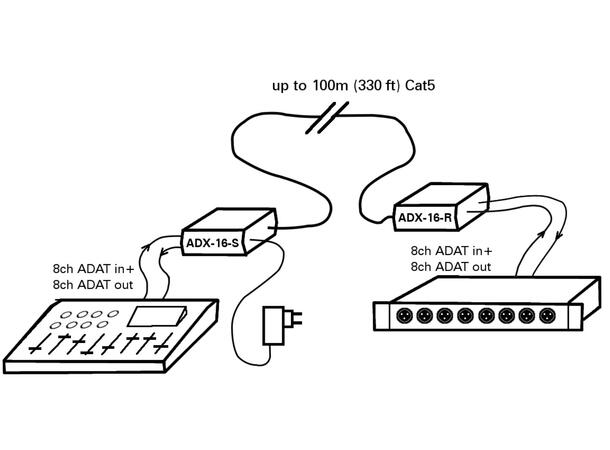

    Economic digital 8x8 snake with lowest latency
    Recording of 8 channels from a remote location, with master clock transmitted to the remote unit
    Interconnection of ADAT enabled equipment (e.g. DAWs and digital mixers)
    If analog conversion is needed at one or both ends, we recommend using 8-channel ADC/DACs (e.g. Behringer ADA8000 or Focusrite Octopre mkII Dynamics) on the respective end(s)

Features

•Bidirectional transmission over up to 100m/330ft. using a single Cat5 cable
•Reliable, lossless, true bit-transparent transmission
•Near-zero latency (< 1µs)
•Compatible with any data format which can be sent over TOSLINK (ADAT, SPDIF, AC-3/Dolby Digital, DTS ...)
•Quality product "Made in Switzerland"

Kit Contents

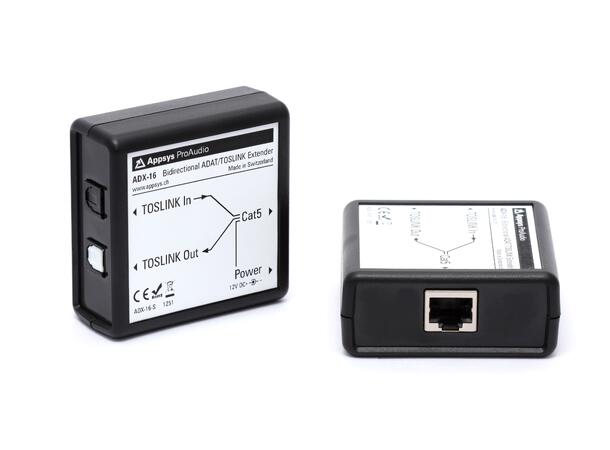

•Converter Box ADX-16-S (1xTOSLINK In + 1xTOSLINK Out to Cat5 with power supply)
•Converter Box ADX-16-R (1xTOSLINK In + 1xTOSLINK Out to Cat5)
•AC adapter in "green" switching technology
•Printed manual
