Classic transformer microphone preamp amp (Class A design) with integral DI input and Phantom Power.
Exclusive Neve® Marinair™ transformers used on input and output stages.
3 EQ bands & HP filter.
Can be used as a standalone module or inserted into a compatible rack or console.
Mic & Line inputs are transformer balanced and earth free.
Microphone Input: Gain +80db to +20dB in 5dB steps.
Designed and built in England.
Line Input: Input impedance 10k ohms, gain +20dB to -10dB in 5dB steps.
DI Input: Input impedance 10M Ohms (PAD off) / 10K Ohms (PAD on) Gain +80dB to +20dB in 5dB steps.
Output: Maximum output is >+26dBu into 600O.
Output is transformer balanced and earth free.
Distortion: Not more than 0.07% from 50Hz to 10kHz at +20dBu output.
(80kHz bandwidth) into 600O.
Freq Response: ±0.5dB 20Hz to 20kHz, -3dB at 40kHz. EQ Out.

Antall artikler funnet:

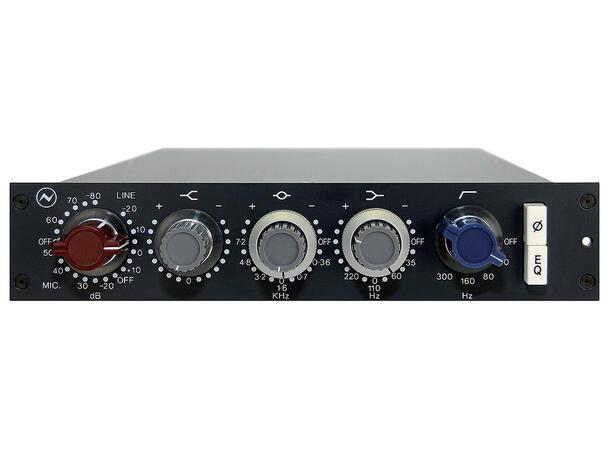

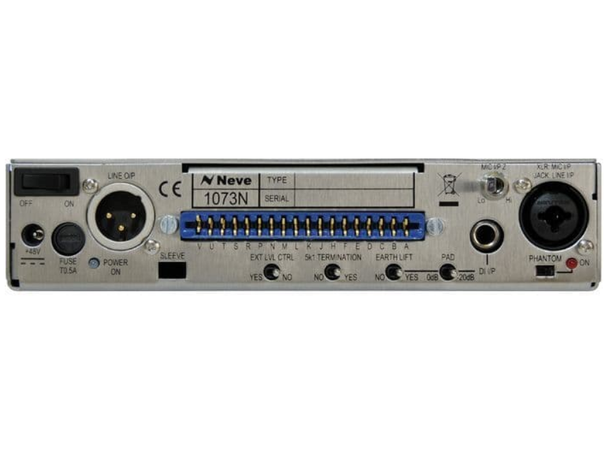

AMS Neve 1073N

Micpre EQ. klassiker i liten format.

Varenr: 115889

Utsolgt (56 dager)

Beskrivelse

Classic transformer microphone preamp amp (Class A design) with integral DI input and Phantom Power.

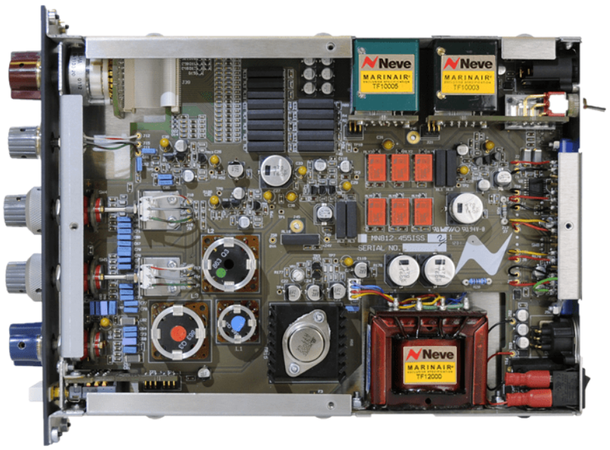

Exclusive Neve® Marinair™ transformers used on input and output stages.
3 EQ bands & HP filter.
Can be used as a standalone module or inserted into a compatible rack or console.
Mic & Line inputs are transformer balanced and earth free.
Microphone Input: Gain +80db to +20dB in 5dB steps.
Designed and built in England.
Line Input: Input impedance 10k ohms, gain +20dB to -10dB in 5dB steps.
DI Input: Input impedance 10M Ohms (PAD off) / 10K Ohms (PAD on) Gain +80dB to +20dB in 5dB steps.
Output: Maximum output is >+26dBu into 600O.
Output is transformer balanced and earth free.
Distortion: Not more than 0.07% from 50Hz to 10kHz at +20dBu output.
(80kHz bandwidth) into 600O.
Freq Response: ±0.5dB 20Hz to 20kHz, -3dB at 40kHz. EQ Out.
