AMS NEVE 1073OPX digital  bundle m/Dante Micpre 8 ch med Digital I/O

AMS NEVE 1073OPX digital bundle m/Dante

Micpre 8 ch med Digital I/O

Varenr: 115878
-+
Utsolgt (42 dager)
Send meg mail når varen er på lager
BeskrivelseTeknisk infoAlternativerRESSURSER
Beskrivelse

1073OPX Digital Bundle DANTE / USB Overview:

  • With Marinair transformers
  • Line, Microphone and DI-Ins
  • DI-In in Class-A transformerless circuitry
  • 48V phantom power, -25dB pad, impedance switch (300/1300Ohm) and high-pass filter @ 80Hz per channel
  • Mic/line inputs separately and rear outputs via Tascam Dsub-25
  • Stereo Monitor In/Out
  • display shows current gain value
  • additional front input
  • Control input (RJ-45)
  • headphone output with mono switch and different operation modes (1/2, 3/4, 5/6, 7/8, Mon, DMon)
  • remote controllable via remote software; up to 8 units daisy-chained
  • Total Recall
  • 19" rack unit with 2U
  • excellent price/performance ratio

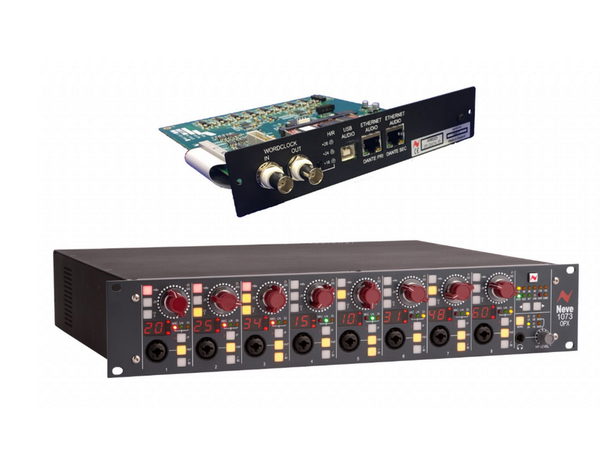

Neve 1073OPX Digital Option Card Overview:

  • Mastering-quality converter card for the Neve 1073OPX
  • 8 channels AD conversion
  • 2 channels DA conversion
  • Connectors: Dante Primary and Secondary, USB 2.0
  • up to 192kHz/24bit sample rate

AMS Neve 1073OPX Digital Bundle DANTE / USB at a glance:

The AMS Neve 1073OPX Digital Bundle is the 8-channel version of the popular 1073 preamp with integrated monitor path and headphone output. A digital output via USB and Dante can be optionally retrofitted. Each signal benefits in its own way from the excellent and sought-after sound quality of standard Marinair transform ers. Such transformers are almost never available from the factory and on the second-hand market only at horrendous prices!

The 1073OPX is designed to be mounted in the recording room and thus follows the path Neve has already taken very successfully with the 1081 rack system and the 4081 Quad Mic-Pre: The implementation of a comprehensive remote control including Total Recall is included. Accordingly, the line and microphone inputs as well as the outputs are available as Dsub-25 connectors on the rear panel. Finally, the monitoring of the recording musician can also be realized via the unit: A headphone amplifier is integrated and can optionally be fed via 2 of the input channels, an analog monitor path or, if the digital option is inserted, via the digital audio path. If external monitoring is required, the AMS Neve 1073OPX immediately sums the 8 channels and provides them at a stereo output.

So with the concept of the 1073OPX, you achieve world-class amplification of your microphone signals directly in the recording room, saving the sensitive signals from long cable runs, while still maintaining full control of your preamps. With the optional Digital Option Card, you also get mastering-quality conversion. For such a price, Neve Preamps of this equipment has never been available before!

The Neve 1073OPX Digital Option Card extends the Preamp and 8 channels of AD conversion for the Preamps and 2 channels of DA conversion for the mastering-quality monitor path. It provides connections for a Dante network and USB 2.0.

Teknisk info

Produktinformasjon

- Funksjon & bruk 19" rack
- Grensesnitt (Protokoll)
  • AES67
  • Dante
