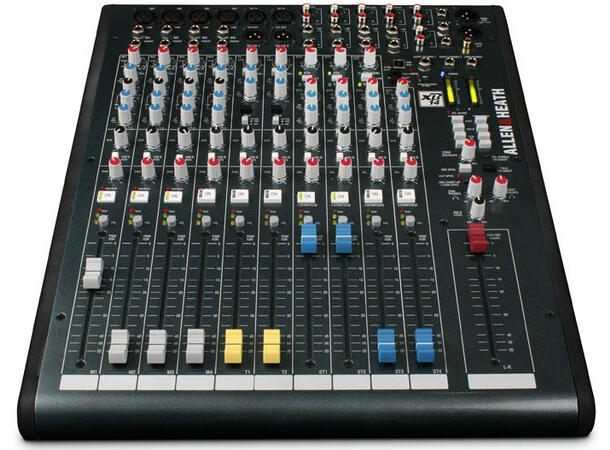

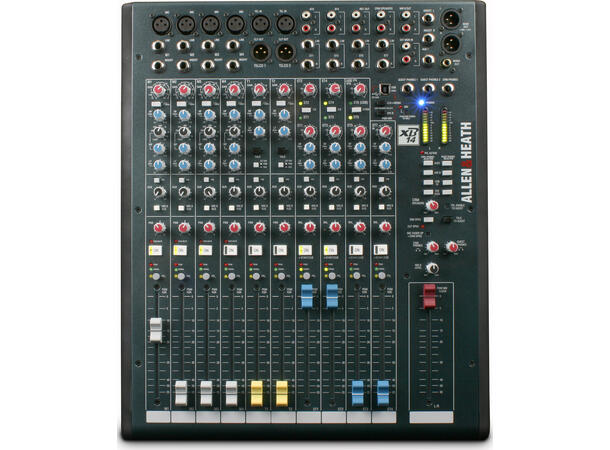

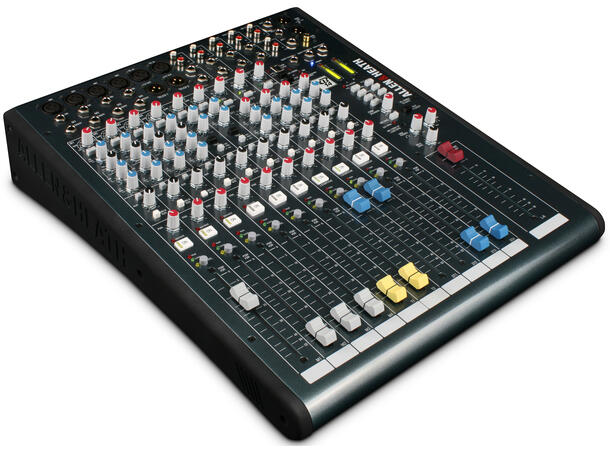

A&H XB14 Radio Broadcast Mikser



Compact, cost effective and versatile… the XB-14 is designed for a broad range of applications from small radio or internet broadcast studios, to larger studios with multiple rooms, hospital radio, university radio and community radio. The XB-14 is equipped with a wealth of features specifically for broadcasters, including telephone communication modules for telephone callers, mic fader start sensing for external connection and internal automatic muting of the speaker outputs, stereo channel start/cue outputs for CD deck transport control, separate headphones mix & outputs for guests, an audition bus, and much more!



    Audition/clean feed bus
    3-band EQ on mono channels
    4 mic/line and 4 stereo channels
    2-band EQ on Telco/stereo channels
    2 stage, padless pre-amp design
    Fader start sensing on mono channels
    Start/cue logic on stereo channel switches
    2 Telco telephone communication channels
    USB connectivity to interface with PC/MAC
    Separate headphones mix for engineer/producer and 2 guests
    Vertically-mounted PCB construction with nutted rotary pots
    Aux and separate stereo busses for processing/recording
    Control room outputs with auto and remote mutes
    Remote mute facility on mic channels
    Balanced main outputs with inserts
    Input signal and peak metering



Mic/Line Pre-amps
The XB-14’s two stage pre-amp design, offers an expansive and controlled gain range (69dB). Most of the gain comes from the first stage, so unwanted noise is kept to a minimum, and the second stage is padless, with line level signals simply plugged in using the input jack socket, which means lower noise when using the line input.

EQ
The XB-14 is equipped with a 3-band equaliser circuit on each mono input and a 2-band EQ on the Telco and stereo channels. The frequency and response of each has been carefully chosen to give the maximum performance when using the EQ on a variety of sources.

AUX Bus and MIX B stereo Bus
XB-14 has a single Auxiliary bus that can be used for external processing, effects, recording or auditioning. A separate stereo mix bus is provided for recording an independent mix to the main program mix, or creating a clean feed source with selected channels.

Remote Control
The mono mic/line channels have fader start logic switching, enabling them to control external equipment or automatically mute the speaker outputs to prevent acoustic feedback in localised or self operated applications. The stereo channels have ‘start & cue’ logic outputs to connect to external equipment such as CD players. There are also options to mute the mono inputs remotely using an external “cough” switch or similar.

USB
Getting audio to and from a computer easily is essential for music and broadcast production, so the XB-14 is super-flexible and super-easy! Just plug in a USB lead and select the USB routing to enable quality audio to and from your PC or Mac.

Self or Producer Operated
Separate monitor mixes can be created for operator, guests or presenter so the engineer can check levels and cue sources while the presenter or guest can listen to a different source. The engineer/producer can communicate to the studio using the ‘Talk’ feature, or off-air to telephone callers.
