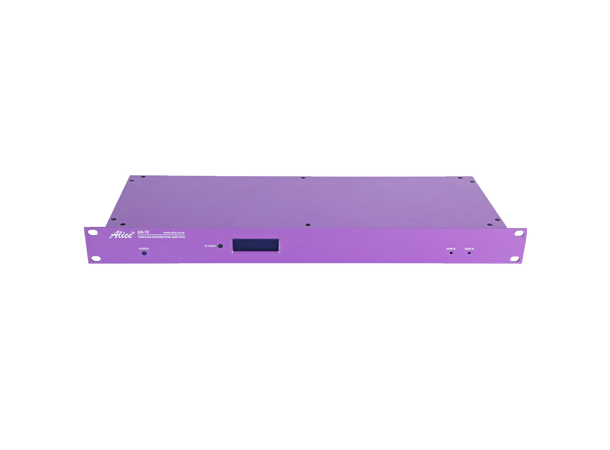

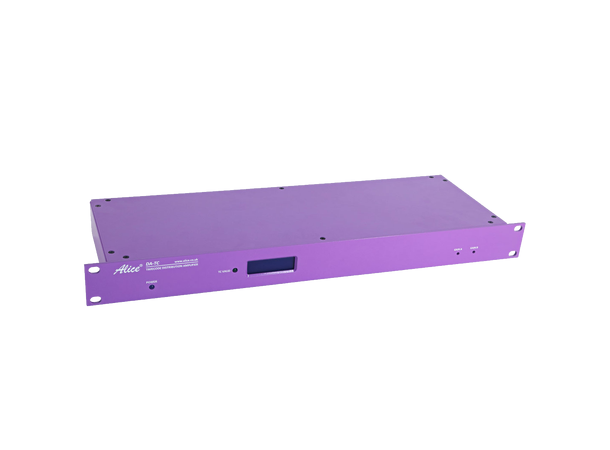

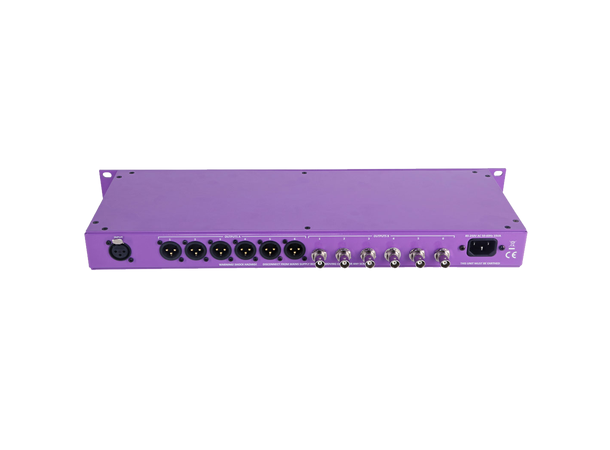

19” rack-mounted LTC timecode distribution amplifier, with six Neutrik audio outputs and six BNC outputs for central technical areas, outside broadcast trucks, PSC camera and field audio mixer jamming.
Technical Specification

Input impedance: internally selectable 20k ohms or 600 ohms balanced
Input: common-mode rejection: 60dB typical
Frequency response: 20Hz to 20kHz ±0.2dB
Phase shift: 20Hz <1° 20kHz<5°
Noise: -100dB (RMS 30Hz to 15kHz) at unity gain – Ref + 8dBu output
Distortion: (THD) + 8dBu output: 40Hz 0.006% – 1kHz 0.006% 10kHz 0.02%
Output impedance: <1 ohm balanced and floating
Minimum load: 600 ohms
Gain range: adjustable up to 20dB gain and 10dB loss
Max. input level: +28dBu
Max. output level: +26dBu into 5k ohms +24dBu into 600 ohms 0dBu = 0.775 volts RMS

100% manufactured in the UK

Mains supply: 85v to 285v AC operation
Power consumption: 20VA
Case details: 1U 19? rack mounting, overall depth 165mm
Shipping weight: 1.95Kg
